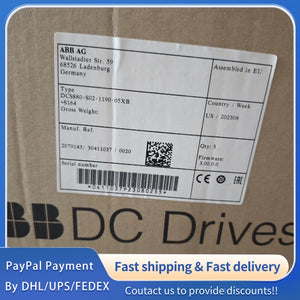

Part Number: DCS880-S02-1190-05XB+S164; Derivative Model: DCS880 Series Single DC Drive; Sub-model: High-power Industrial DC Drive with S164 Safety Option (S02 Frame Size)
Alternate P/N: N/A (Fully Compatible with ABB AC/DC Automation Ecosystem, PLCs, HMIs, Industrial Sensors, and Third-party Control Components)
Brand: ABB (Industrial Automation Division, Drives & Controls Systems)
Product Category: Industrial DC Drive (High-performance Adjustable Speed Drive for DC Motor Control in Heavy-duty Industrial Applications)
Product Series: ABB DCS880 Series (Modular DC Drives for Precise Torque & Speed Control with Enhanced Reliability)
2.1 Power Supply Parameters
Input Voltage: 380-500V AC (three-phase); Voltage Tolerance: ±10% (342-550V AC); Input Frequency: 50/60Hz ±5%; Rated Output Current: 1190A (continuous operation at 40°C, S02 frame); Maximum Output Current: 1785A (150% overload for 1 minute per 10 minutes, heavy-duty mode); Output Voltage: 0-400V DC (continuous), 0-440V DC (peak);
Power Consumption: ≤5.5kW (control circuit, typical operation for S02 frame); Auxiliary Power Supply: 24VDC ±10% (for control circuit and safety functions), Current Consumption: ≤2A (auxiliary power, full load).
2.2 Control & I/O Parameters
Control Modes: Speed control (analog given, digital given), Torque control, Current control; Speed Regulation Accuracy: ±0.1% of rated speed (with encoder feedback), ±1% of rated speed (open loop); Speed Range: 1:1000 (closed loop), 1:100 (open loop); Dynamic Response Time: ≤10ms (torque step response).
Analog Inputs (AI): 4-channel configurable analog input, 4-20mA DC / 0-10V DC (selectable per channel); Input Accuracy: ±0.1% FS (full scale) at 25°C; Input Impedance: ≥1MΩ (voltage input), ≤250Ω (current input); Used for speed given, torque given, and process signal acquisition.
Analog Outputs (AO): 2-channel configurable analog output, 4-20mA DC (load resistance ≤500Ω); Output Accuracy: ±0.2% FS; Used for speed feedback, current feedback, and torque feedback signal output.
Digital Inputs (DI): 8-channel digital input, 24VDC (PNP/NPN selectable); Response Time: ≤1ms; Input Impedance: ≥10kΩ; Suitable for start/stop command, direction control, and interlock signal input.
Digital Outputs (DO): 4-channel digital output, relay contact (max 2A/250V AC, 2A/30V DC); Used for status indication, alarm output, and interlock control.
