Category    English Specification    Remarks

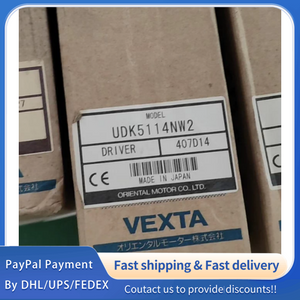

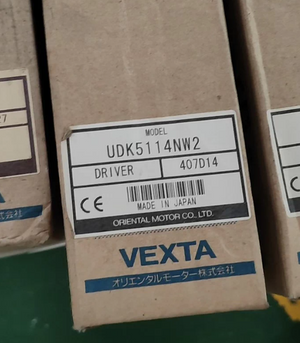

Model Number    UDK5114NW2    Oriental Motor VEXTA 5-Phase Stepper Driver
Product Type    5-Phase Stepper Motor Driver    For 5-phase stepping motors
Rated Output Current    1.4 A/phase (Max 2.8 A/phase)    Output current capacity
Step Angle    0.72° (Full Step), 0.36° (Half Step)    Selectable via built-in switch
Input Voltage    Single-phase 100–115 VAC ±15% (50/60 Hz)    Rated input voltage range
Input Frequency    50/60 Hz    Input frequency range
Input Signal    Photocoupler isolated, 220 Ω input resistance, max 20 mA input current    Control signal input
Signal Voltage    High: +4–+5 V, Low: 0–+0.5 V    Control signal voltage levels
Pulse Width    Min 5 μs    Minimum command pulse width
Insulation Resistance    ≥100 MΩ (DC 500 V megger)    Between coils and casing
Dielectric Strength    1.0 kV AC for 1 min (50 Hz)    Between case and terminals
Operating Temperature    0–50 °C (32–122 °F)    Ambient temperature range
Storage Temperature    -25–70 °C (-13–158 °F)    Non-operating temperature range
Humidity    ≤90% RH (non-condensing)    Max humidity without condensation
Dimensions    51 mm × 152 mm × 279 mm (Typical)    Standard driver size
Weight    Approx. 0.9 kg (2.0 lbs)    Net weight, for logistics reference
