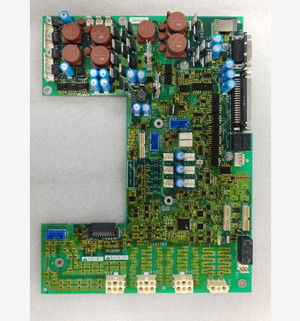

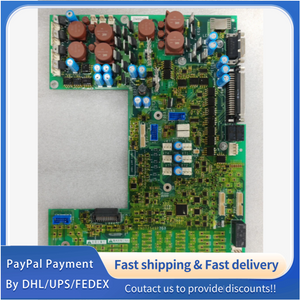

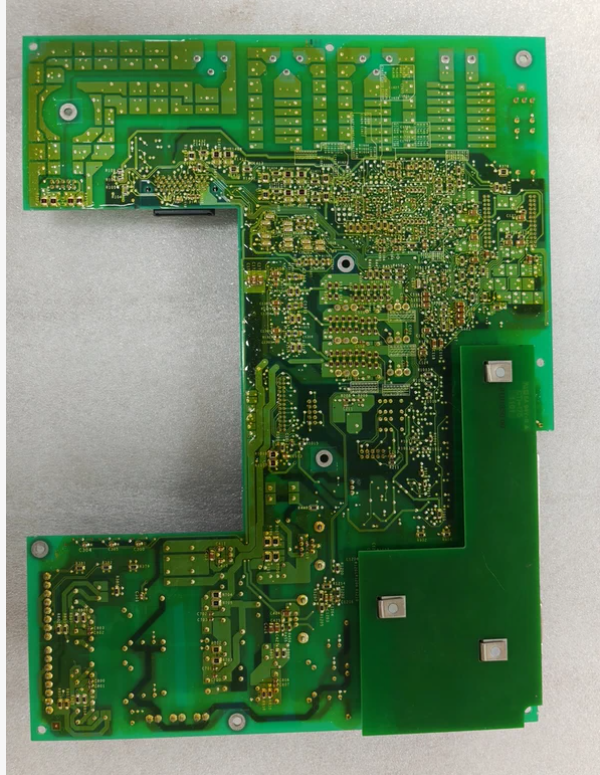

1PC used working VX4A61M1871M15Y PN072549P703 IGBT Gate Driver Board (3‑phase inverter drive) for Schneider Electric (for Altivar 61/71 series) #QYM001

Regular price $8,387.00 Sale price $6,999.00
40 People are viewing this right now
Add to Wishlist
Add to Compare

1PC used working VX4A61M1871M15Y PN072549P703 IGBT Gate Driver Board (3‑phase inverter drive) for Schneider Electric (for Altivar 61/71 series) #QYM001
1PC used working VX4A61M1871M15Y PN072549P703 IGBT Gate Driver Board (3‑phase inverter drive) for Schneider Electric (for Altivar 61/71 series) #QYM001
Regular price $8,387.00 Sale price$6,999.00
1PC used working VX4A61M1871M15Y PN072549P703 IGBT Gate Driver Board (3‑phase inverter drive) for Schneider Electric (for Altivar 61/71 series) #QYM001

1PC used working VX4A61M1871M15Y PN072549P703 IGBT Gate Driver Board (3‑phase inverter drive) for Schneider Electric (for Altivar 61/71 series) #QYM001

$6,999.00

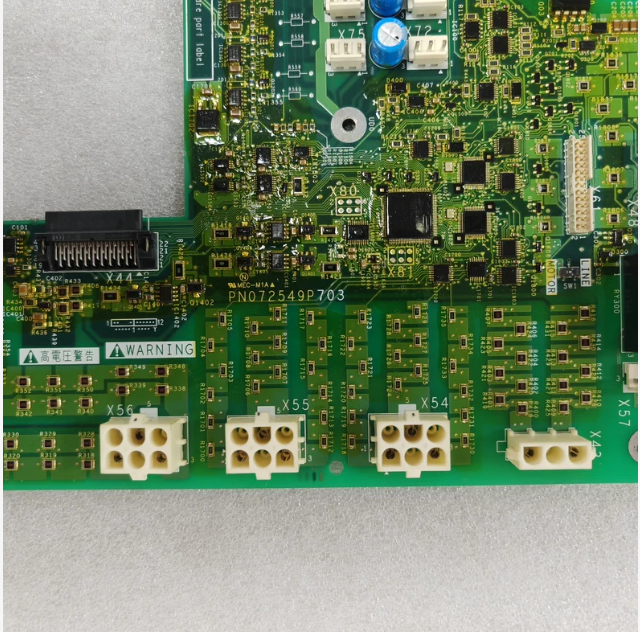

Part Number: VX4A61M1871M15Y; PN072549P703

Brand: Schneider Electric (for Altivar 61/71 series)

Type: IGBT Gate Driver Board (3‑phase inverter drive)

Application: For Altivar 61/71 medium‑voltage drives (matching 1871M15Y IGBT modules)


Core Electrical Ratings


Parameter Specification
Input Power Supply Dual isolated 15V DC (±15V DC); 24V DC logic input
Input Current 250 mA (per channel, ±15V DC); 100 mA (24V DC logic)
Output Gate Current Peak ±6A (sourcing/sinking); continuous 2A
Isolation Voltage 4000V AC (primary‑secondary; 1 min withstand)
Switching Frequency 0‑100 kHz (max)
Duty Cycle 0‑100% (programmable)
Undervoltage Lockout (UVLO) 12V DC (±15V rail threshold)


IGBT Drive Performance


Parameter Specification
IGBT Module Compatibility 1871M15Y (1200V / 1800A, 3‑phase)
Gate Resistance 10Ω (sourcing), 5Ω (sinking) (configurable via jumper)
Turn‑On Delay 1.2 μs (typical)
Turn‑Off Delay 1.5 μs (typical)
Rise/Fall Time 80 ns / 60 ns (typical, 1200V / 100A load)
Dead Time Setting 2‑20 μs (programmable via DIP switch)


Protection & Monitoring


  • Overcurrent Protection (OCP): Shuts down gate drive within 2 μs (short‑circuit detection)
  • Desaturation Protection: Vce monitoring (threshold 7V, delay 1 μs)
  • Overtemperature (OT): NTC thermistor input (10kΩ @ 25°C)
  • UVLO: Triggers fault when ±15V drops below 12V DC
  • Fault Feedback: Open‑collector output (24V DC, 100 mA max)
  • Self‑Diagnostics: Power supply, gate driver, and isolation monitoring


Communication & Control


Parameter Specification
Input Interface 5V TTL / 24V DC logic (PWM command; optical isolated)
Fault Output Open‑collector (24V DC, 100 mA); active‑low
Status LED Indicators Power (green), Fault (red), Channel Active (yellow)
Control Protocol SPI (for configuration); RS‑485 (optional for daisy‑chain)


Mechanical & Environmental


Parameter Specification
Mounting Type DIN‑rail / panel mount (screw terminals)
Dimensions 150 × 100 × 50 mm (W×H×D)
Weight ~350 g
Operating Temperature -25‑70°C
Storage Temperature -40‑85°C
Humidity 5‑95% RH (non‑condensing)
Vibration Resistance 10‑500 Hz, 1G (X/Y/Z axes, 30 mins)

1  .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
 Including : frequency converter, servo driver, servo motor,   data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial   computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
 3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please    contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
