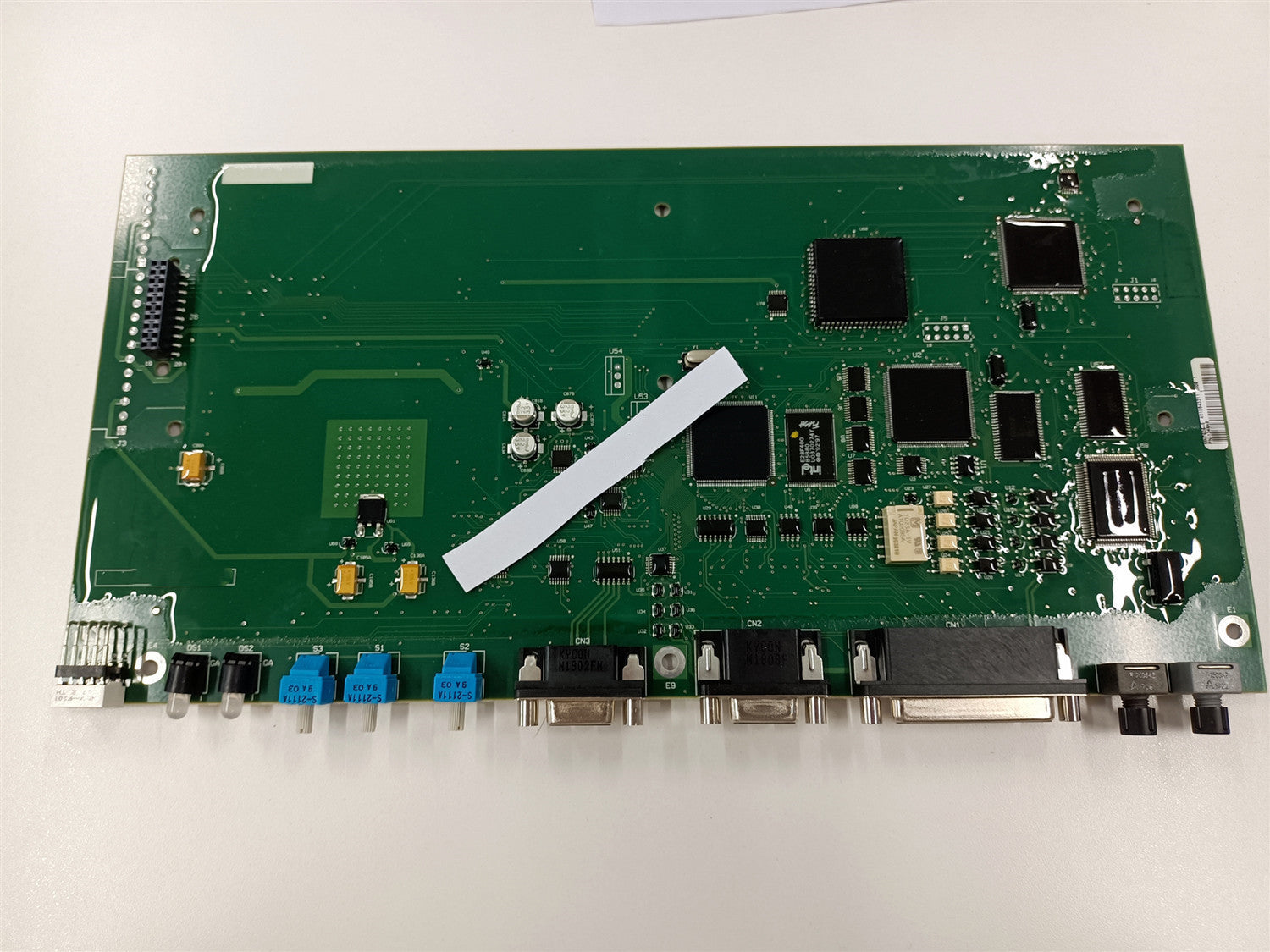

1PC NEW MN760545 4010943311 PN-134648 for the IGBT driver interface board of Allen-Bradley (AB) PowerFlex 700S/700H series medium - voltage AC drives #QYM001 J1688

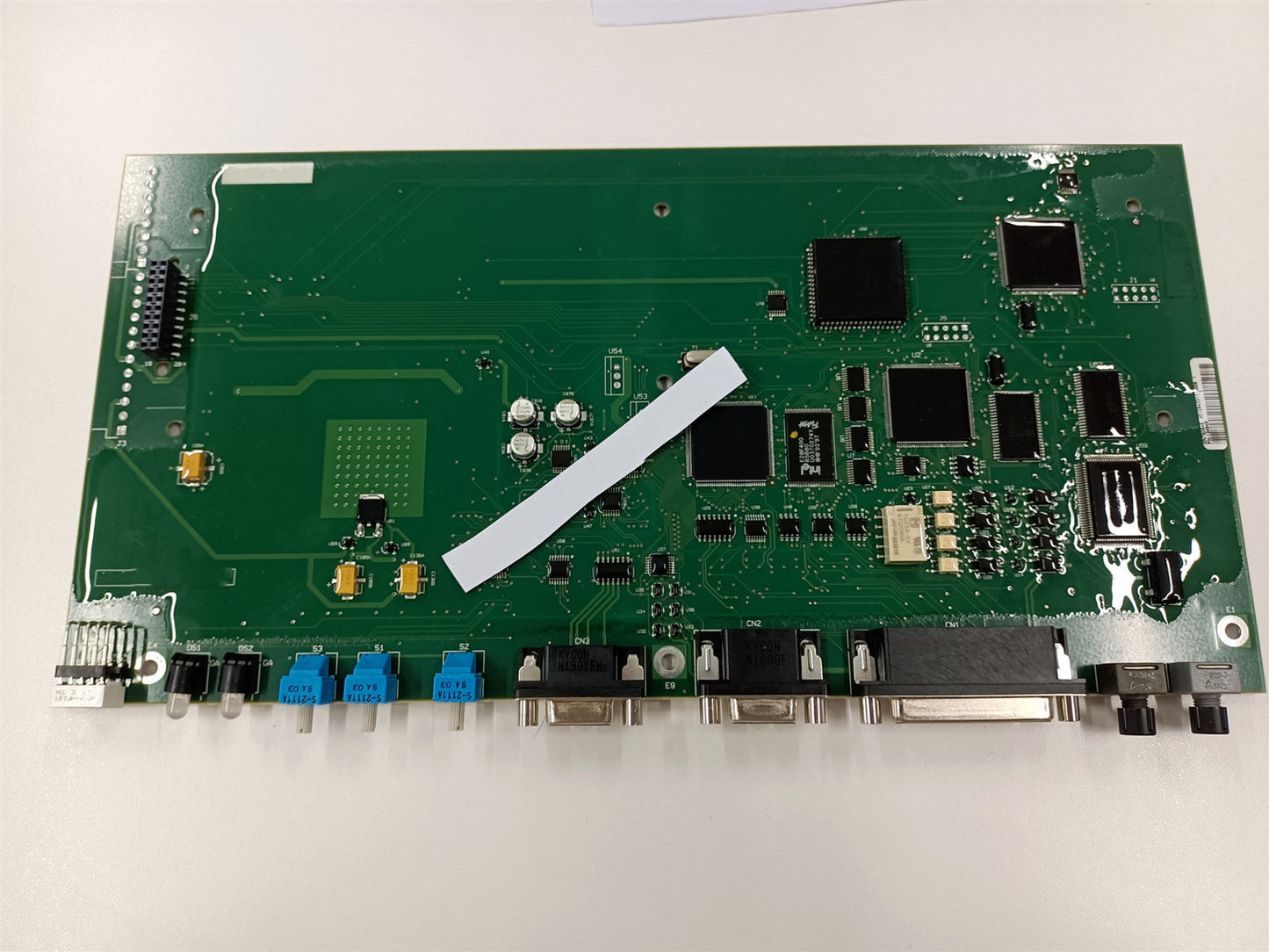

1PC NEW MN760545 4010943311 PN-134648 for the IGBT driver interface board of Allen-Bradley (AB) PowerFlex 700S/700H series medium - voltage AC drives #QYM001 J1688
| Parameter Category | Core Details |
|---|---|
| Compatible Drives | PowerFlex 700S (20SD) / 700H (20SH) medium - voltage AC drives; typical power range 250–1200kW (subject to the main drive model) |
| Core Functions | IGBT gate drive signal amplification and isolation; IGBT collector - emitter voltage, current, and junction temperature monitoring; Over - current/short - circuit/fault protection for IGBT modules; Real - time state feedback to the main control board; Gate voltage clamping and soft - switching control |
| Power Supply | Isolated drive power: ±15V DC (from the drive’s dedicated auxiliary power supply); Control signal power: Isolated DC 5V (from the main control board); Power consumption ≤ 18W |
| Interface Configuration | Main control board communication bus interface; 6/8 - channel IGBT drive signal output ports (matching the number of IGBT modules); IGBT fault signal input channels; Temperature sensor (NTC/PTC) interface; Status indicator LEDs (Power/IGBT_OK/Fault/Communication) |
| Protection Functions | IGBT over - current/over - voltage/over - temperature protection; ESD protection for signal interfaces (complying with IEC 61000-4-2); Short - circuit protection for gate drive circuits; Isolation voltage between drive channels: ≥ 2500V AC (1 minute) |
| Environment & Structure | Operating temperature: - 10–65℃; Storage temperature: - 40–85℃; PCB material: FR - 4 with high - temperature and flame - retardant coating; Protection class: IP20 (cabinet - mounted); Relative humidity: 5%–95% (non - condensing) |
| Physical Specifications | Dimensions: approx. 180×150×50mm; Weight: approx. 650g; PCB flame - retardant rating: 94V - 0; Isolation type: Optical isolation + transformer isolation |
