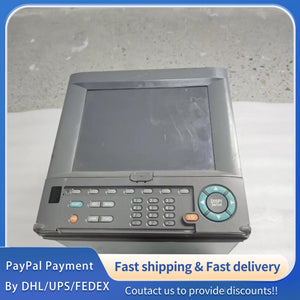

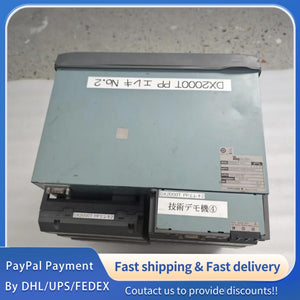

Part Number: DX2048T-3-4-1; Product Name: Yokogawa DX2048T-3-4-1 High-Performance Paperless Recorder (DXAdvanced Series)
Brand: Yokogawa (Yokogawa Electric Corporation, a global leader in industrial automation and measurement solutions, with rich experience in data acquisition and process monitoring);
Product Status: Original New Unit; Product Category: Industrial Paperless Recorder, designed for high-precision data acquisition, recording, and monitoring in industrial process control systems;
Core Application: Widely used in chemical, petroleum, pharmaceutical, power generation, metallurgy, and environmental protection industries, suitable for monitoring temperature, pressure, flow, level, and other process parameters;
Core Features: Up to 48-channel input; High-speed measurement capability; Rich network communication protocols; Large-capacity storage; Customizable display interface; Expandable channel capacity via external modules.
2. Measurement & Recording Specifications
2.1 Measurement Parameters
Input Channels: 48 Channels (maximum); Expandable Channels: Up to 348 Channels via DAQMASTER MW100 (Modbus/TCP connection);
Measurement Cycle: Standard Mode: Configurable, High-Speed Mode: Up to 25ms (for specific models); Input Signal Types: Supports thermocouple, RTD, current, voltage, and other standard industrial signals;
Measurement Accuracy: ±0.2% FS (typical) for voltage/current signals; ±0.3% FS (typical) for temperature signals (depends on signal type and range).
2.2 Recording Parameters
Batch Processing: Up to 12 Batch Groups (for models with extended storage); Data File Generation: Independent file creation per batch group;
Internal Storage: 200MB Flash Memory (supports long-term multi-channel recording); External Storage: Built-in CF Card Drive (maximum 2GB CF Card), optional USB Interface for data transfer to USB flash drives.
3. Electrical Specifications
3.1 Power Supply Parameters
Rated Supply Voltage: AC 100-240V, 50/60Hz; DC 24V ±10% (optional); Power Consumption: Typical 30VA, Maximum 40VA;
Protection Features: Over-voltage protection; Over-current protection; Short-circuit protection for power input.

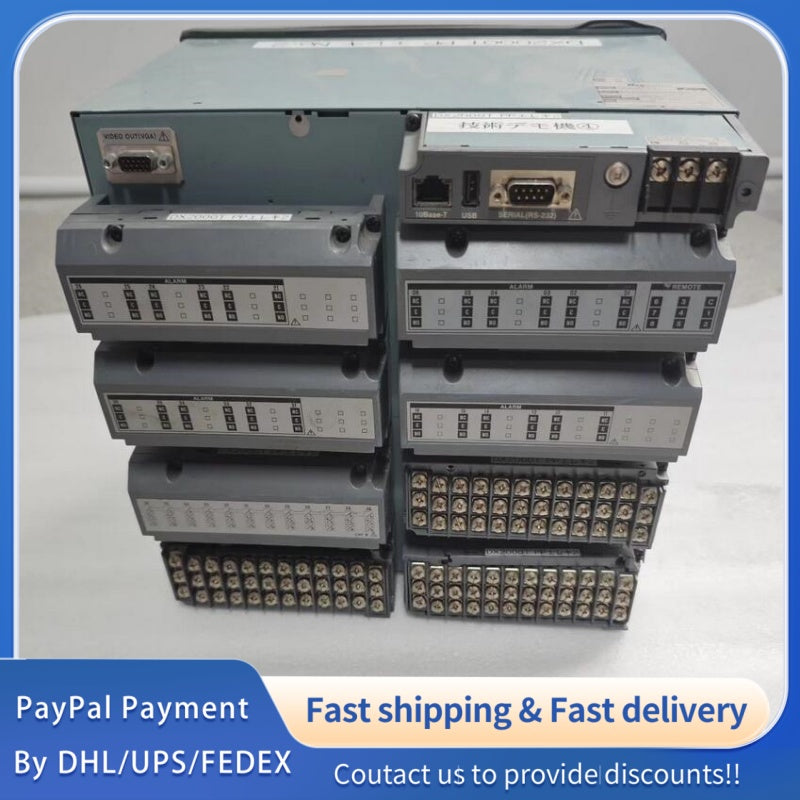

3.2 Communication Interfaces
Ethernet Interface: 1 × RJ45, 10/100 Mbps, supports TCP/IP, Modbus/TCP, EtherNet/IP protocols;
Serial Interfaces: 2 × RS-232C/RS-422/RS-485 (configurable), baud rate up to 115.2 kbps, supports Modbus RTU;
Optional Interfaces: PROFIBUS-DP slave interface; USB 2.0 Type-A (for peripherals and data export).
