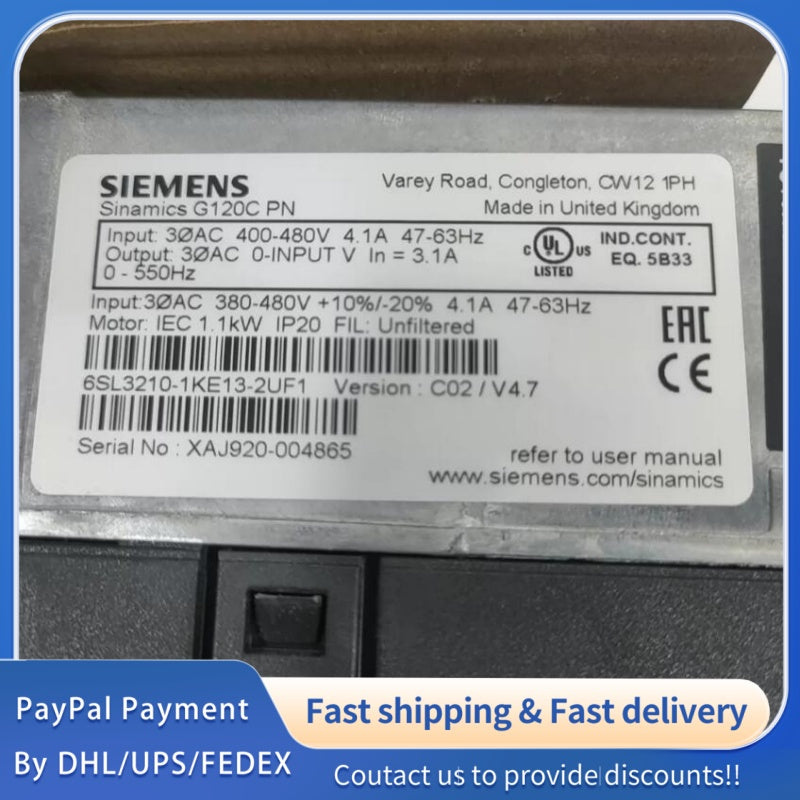

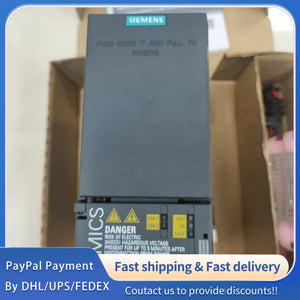

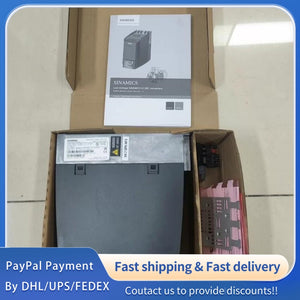

1pc for NEW Siemens SINAMICS G120C Inverter 6SL3210-1KE13-2UF1 #LYQ007
1pc for NEW Siemens SINAMICS G120C Inverter 6SL3210-1KE13-2UF1 #LYQ007
| Parameter | Value |
|---|---|
| Product Identification | |
| Order Number | 6SL3210-1KE13-2UF1 |
| Series | SINAMICS G120C |
| Electrical Data (Input) | |
| Supply Phase | 3-phase AC |
| Line Voltage | 380...480 V +10%/-20% |
| Line Frequency | 47...63 Hz |
| Rated Input Current (I_N) | 3.2 A |
| Electrical Data (Output) | |
| Output Phase | 3-phase AC |
| Rated Output Voltage | 400 V (IEC), 480 V (NEC) |
| Rated Power (Low Overload, LO) | 1.1 kW (1.5 HP) |
| Rated Power (High Overload, HO) | 0.75 kW (1.0 HP) |
| Rated Output Current (LO) | 4.1 A |
| Rated Output Current (HO) | 3.2 A |
| Max. Output Current | 4.4 A |
| Output Frequency (Vector Control) | 0...240 Hz |
| Output Frequency (V/f Control) | 0...550 Hz |
| Pulse Frequency | 4 kHz |
| Overload Capability | |
| Low Overload (LO) | 150% I_L for 3 s, 110% I_L for 57 s (300 s cycle) |
| High Overload (HO) | 200% I_H for 3 s, 150% I_H for 57 s (300 s cycle) |
| Control & Functions | |
| Control Modes | V/f linear/square-law, Vector Control |
| Safe Torque Off (STO) | Integrated |
| I/O Interface | |
| Digital Inputs (DI) | 6 standard, 1 fail-safe |
| Digital Outputs (DO) | 1 relay, 1 transistor |
| Analog Input (AI) | 1 (differential, 10-bit) |
| Analog Output (AO) | 1 (non-isolated) |
| Motor Temp. Sensor | 1 input (PTC, KTY) |
| Communication | |
| Fieldbus | PROFINET-PN, EtherNet/IP |
| Mechanical Data | |
| Frame Size | FSAA |
| Dimensions (H x W x D) | 196 x 73 x 203 mm |
| Net Weight | 1.4 kg |
| Cooling | Integrated fan, air cooling |
| Degree of Protection | IP20 / UL open type |
| Environmental & Standards | |
| Ambient Temp. | -10°C...+40°C (derating above 40°C) |
| Altitude | Up to 1000 m (3280 ft) |
| Standards | UL, cUL, CE, C-Tick (RCM) |
| Efficiency Class | IE2 |
| Connections | |
| Terminals | Plug-in screw terminals |
| Conductor Cross-Section | 1.0...2.5 mm² (AWG 18...14) |
| Max. Motor Cable Length | 50 m (unshielded) |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
