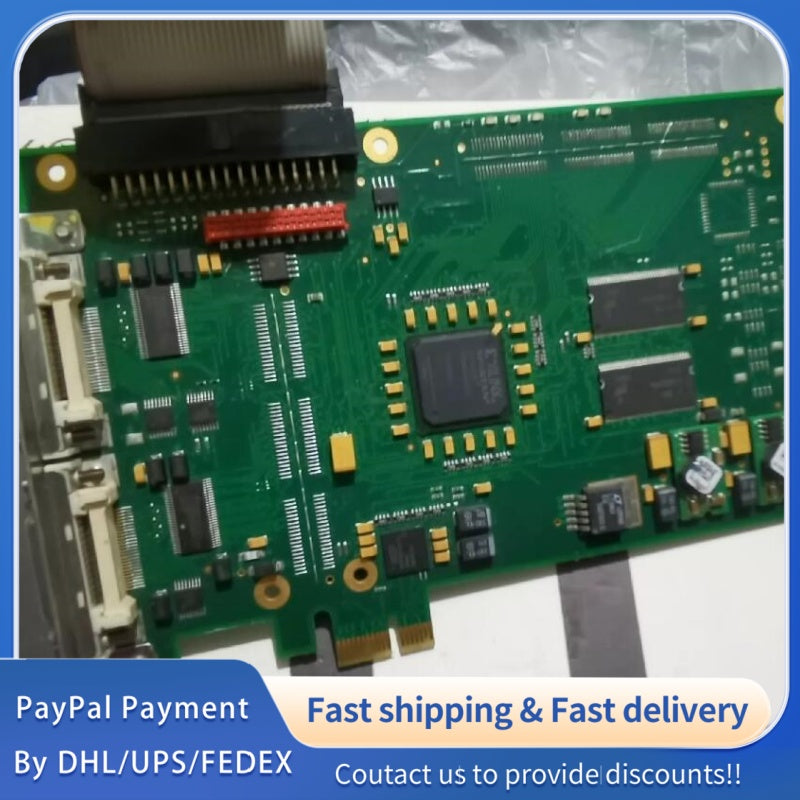

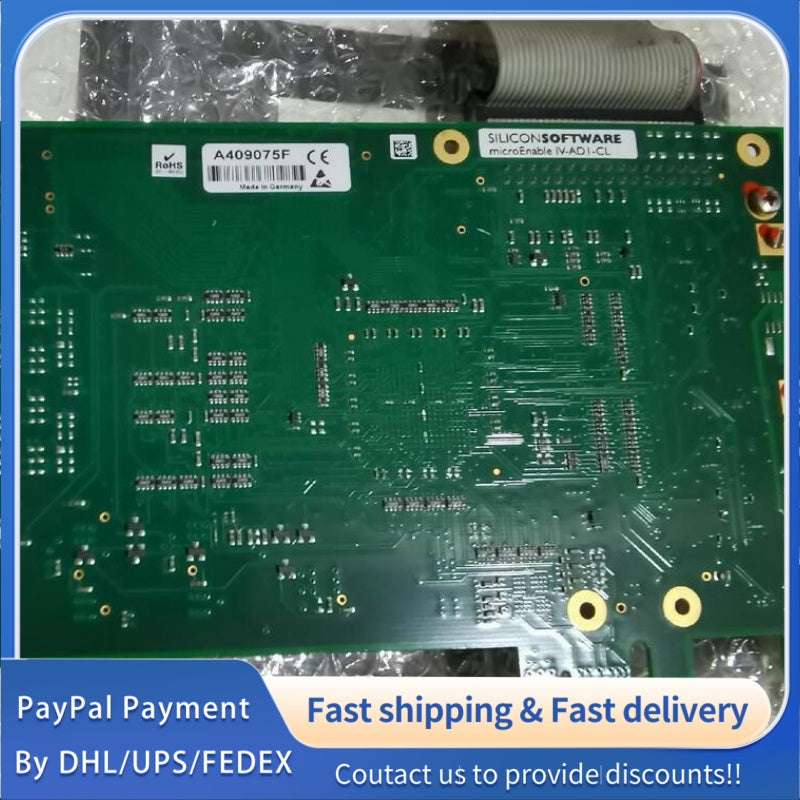

1 PCS USED microEnable IV-ADI-CL (mE4-AD1CL) #LYQ007
1 PCS USED microEnable IV-ADI-CL (mE4-AD1CL) #LYQ007
| Parameter | Value |
|---|---|
| Product Name | microEnable IV AD1-CL |
| Match Code | mE4-AD1CL |
| Article No. | 101630 |
| Category | A-Series (image acquisition board) |
| On-Board Memory | 128 MByte DDR-RAM |
| Camera Interface Standard | Camera Link 2.0, up to 85 MHz Pixel Clock |
| Camera Link Configurations | CL-lite, CL-base, CL-dual base, CL-medium |
| Connectors | 2 × MDR26 |
| Camera Support | Area scan camera, line scan camera |
| Sensor Type | Grayscale sensor, CFA sensor (Bayer), RGB sensor |
| Sensor Resolution | 16k × 64k (area scan), 16k (line scan) |
| Bit Depth | 8–16-bit (grayscale), 24–48-bit (color) |
| Data Bandwidth | 2 × 255 MB/s |
| Trigger/GPIO Interfaces | TTL: 8 in / 8 out (max. 20 MHz input); Opto (optional): 8 single-ended / 4 differential in, 8 out (4.5–28V) |
| Trigger Modes | Grabber controlled, external, gated, software; shaft encoder with backward compensation; multi-camera sync |
| Host Interface | PCI Express x1 (Gen1) |
| Sustainable Transfer Rate | Up to 200 MB/s |
| Dimensions | 167.64 mm (L) × 111.15 mm (H) |
| Weight | Approx. 115 g |
| Power | 3.3V @ 200 mA; 12V @ 300 mA |
| Operating Temp | 0°C to 50°C |
| Storage Temp | -50°C to 80°C |
| Compliances | CE, RoHS, WEEE, REACH |
| Supported OS | Windows 7/8 (32/64-bit), Linux (32/64-bit) |
| Software Tools | microDisplay, microDiagnostics, GenICam Explorer, SDK |
| FPGA Programming | Not programmable |
| Third-Party Software | Common Vision Blox, Halcon, LabVIEW, VisionPro, MIL, Sapera, Streampix, etc. |
