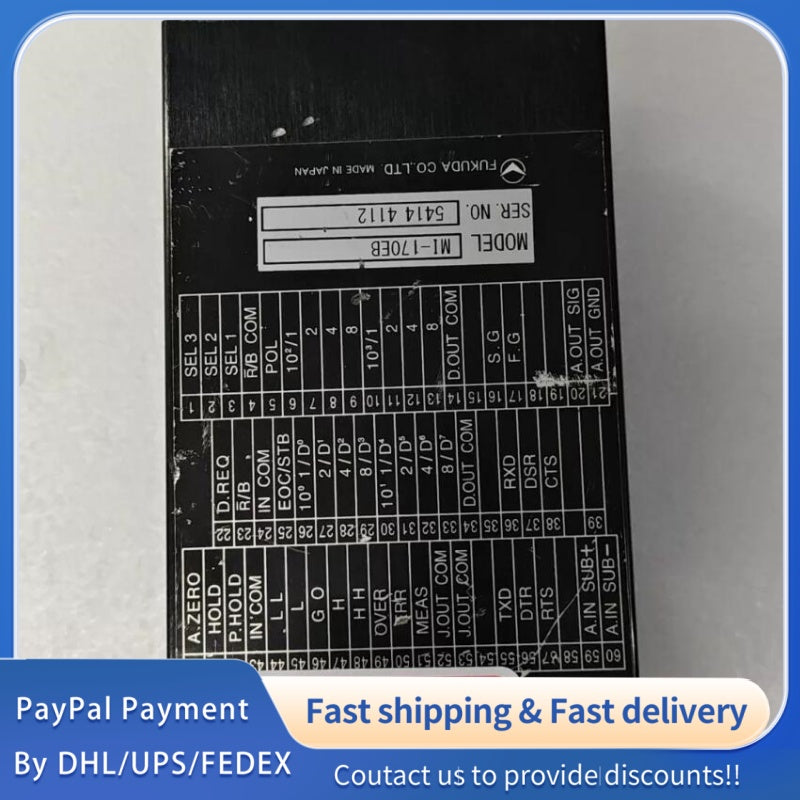

1 PCS used FUKUDA MI-170EB Pressure Sensor #LYQ007
1 PCS used FUKUDA MI-170EB Pressure Sensor #LYQ007
| Parameter | Specification |
|---|---|
| Model | MI-170EB |
| Product Type | Multi-Indicator Digital Pressure Gauge / Pressure Sensor |
| Measurement Medium | Dry air, non-corrosive gas, liquid |
| Pressure Type | Gauge pressure / Differential pressure (selectable) |
| Accuracy | ±0.15% F.S. (Sensor C) |
| ±0.3% F.S. (Sensor A, B) | |
| ±0.5% F.S. (Sensor D) | |
| Temperature Coefficient | Zero drift: ±0.03% F.S./°C |
| Span drift: ±0.03% F.S./°C | |
| Response Time | ≤10 msec (99% of step input) |
| Overpressure | 2 × F.S. (A, B, C); 1 MPa (D) |
| Power Supply | AC 90–132 V, 50/60 Hz |
| Display | 4-digit LED with decimal point (main/sub display) |
| 1-digit LED for group indication | |
| Output | RS-232C communication |
| BCD output (current signal) | |
| Open collector output (NPN): max DC 30 V, 50 mA | |
| Functions | Zero hold, peak hold, digital filter, scaling, 8-channel group setting, upper/lower limit comparison |
| Operating Environment | 0–40 °C, 40–80% RH (non-condensing) |
| Weight | Approx. 1,500 g |
| Mounting | DIN 96 standard panel cut |
