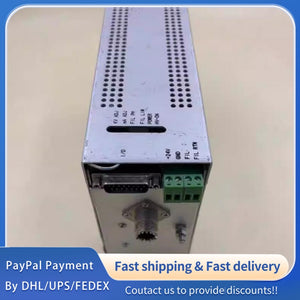

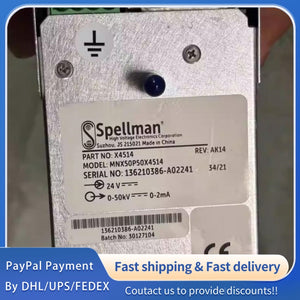

1 PCS USED Spellman High Voltage Module X4514 MNX50P50X4514 #LYQ007
1 PCS USED Spellman High Voltage Module X4514 MNX50P50X4514 #LYQ007
1 PCS USED Spellman High Voltage Module X4514 MNX50P50X4514 #LYQ007
| Parameter Category | Parameter Name | MNX50P50X4514 Specification |
|---|---|---|
| Basic Information | Model Number | X4514 MNX50P50X4514 (MNX50P50 Core) |
| Basic Information | Product Type | Ultra-Compact Industrial X-Ray Generator Module |
| Basic Information | Rated Power | 50 W Max (0–50 kV @ 0–2 mA, power-limited)Spellman HV |
| Basic Information | Target Load | Grounded Cathode X-Ray Tubes |
| Basic Information | Regulatory Compliance | CE, UL/CUL Recognized (File E227588), RoHS; EMC & Low Voltage DirectivesSpellman HV |
| Input Electrical | Input Voltage | +24 VDC ±10%Spellman HV |
| Input Electrical | Max Input Current | 4.0 ASpellman HV |
| Input Electrical | Efficiency (Typ) | 80–85%Spellman HV |
| Output Electrical | High Voltage Range | 0 to 50 kV DCSpellman HV |
| Output Electrical | Emission Current Range | 0 to 2 mA DCSpellman HV |
| Output Electrical | Voltage Regulation (Load) | 0.01% of Vout (No Load to Full Load)Spellman HV |
| Output Electrical | Voltage Regulation (Line) | ±0.01% for ±10% Vin ChangeSpellman HV |
| Output Electrical | Current Regulation (Load) | 0.01% of Iout (0 to Rated Voltage)Spellman HV |
| Output Electrical | Current Regulation (Line) | ±0.01% for ±10% Vin ChangeSpellman HV |
| Output Electrical | Ripple & Noise | 0.1% p-p of Max Vout (50 kV)Spellman HV |
| Stability & Drift | Short-Term Stability (8h) | 0.05% after 30 min Warm-UpSpellman HV |
| Stability & Drift | Temperature Coefficient | 0.01%/°C (Voltage & Current)Spellman HV |
| Filament Supply | Filament Current Range | 0.3–3.5 A DCSpellman HV |
| Filament Supply | Filament Voltage Limit | 5.0 V DCSpellman HV |
| Filament Supply | Control Features | Closed-Loop Regulation; Adjustable Limit; Preheat ControlSpellman HV |
| Control Interface | Voltage Programming | Local: Front-Panel 10-Turn Pot; Remote: 0–10 VDC (±1% Acc, Zin=10 MΩ)Spellman HV |
| Control Interface | Current Programming | Local: Front-Panel 10-Turn Pot; Remote: 0–10 VDC (±1% Acc, Zin=10 MΩ)Spellman HV |
| Monitoring | Voltage Monitor | 0–10 VDC = 0 to Full Scale (±1% Acc, Zout=1 kΩ)Spellman HV |
| Monitoring | Current Monitor | 0–10 VDC = 0 to Full Scale (±1% Acc, Zout=1 kΩ)Spellman HV |
| Monitoring | Filament Monitor | 1 V = 1 A (Zout=1 kΩ)Spellman HV |
| Monitoring | Reference Supply | +10 VDC @ 1 mA MaxSpellman HV |
| Safety & Interlock | Interlock | HV Enable via Pin 4 (Interlock Out) & Pin 15 (Return); 12 V HVON Bulb CompatibleSpellman HV |
| Mechanical | Dimensions (H×W×D) | 5.00” × 2.87” × 8.00” (127.00 mm × 72.90 mm × 203.25 mm)Spellman HV |
| Mechanical | Net Weight | 6.5 lbs (2.9 kg)Spellman HV |
| Mechanical | HV Output Connector | Spellman Drywell Type (Detachable); 1 m PE Cable IncludedSpellman HV |
| Mechanical | Drywell Depth | 7.25” (50 kV)Spellman HV |
| Environmental | Operating Temperature | 0°C to +50°CSpellman HV |
| Environmental | Storage Temperature | -40°C to +85°CSpellman HV |
| Environmental | Operating Humidity | 0–90% RH (Non-Condensing)Spellman HV |
| Connectors | J2 (Power) | Pin 1: +24 V (5 A Max); Pin 2: GNDSpellman HV |
| Connectors | J3 (Filament) | Pin 1: Filament Out; Pin 2: Filament ReturnSpellman HV |
| Connectors | J4 (Analog) | 15-Pin Mini-D Male (See Interface Pinout Below)Spellman HV |
