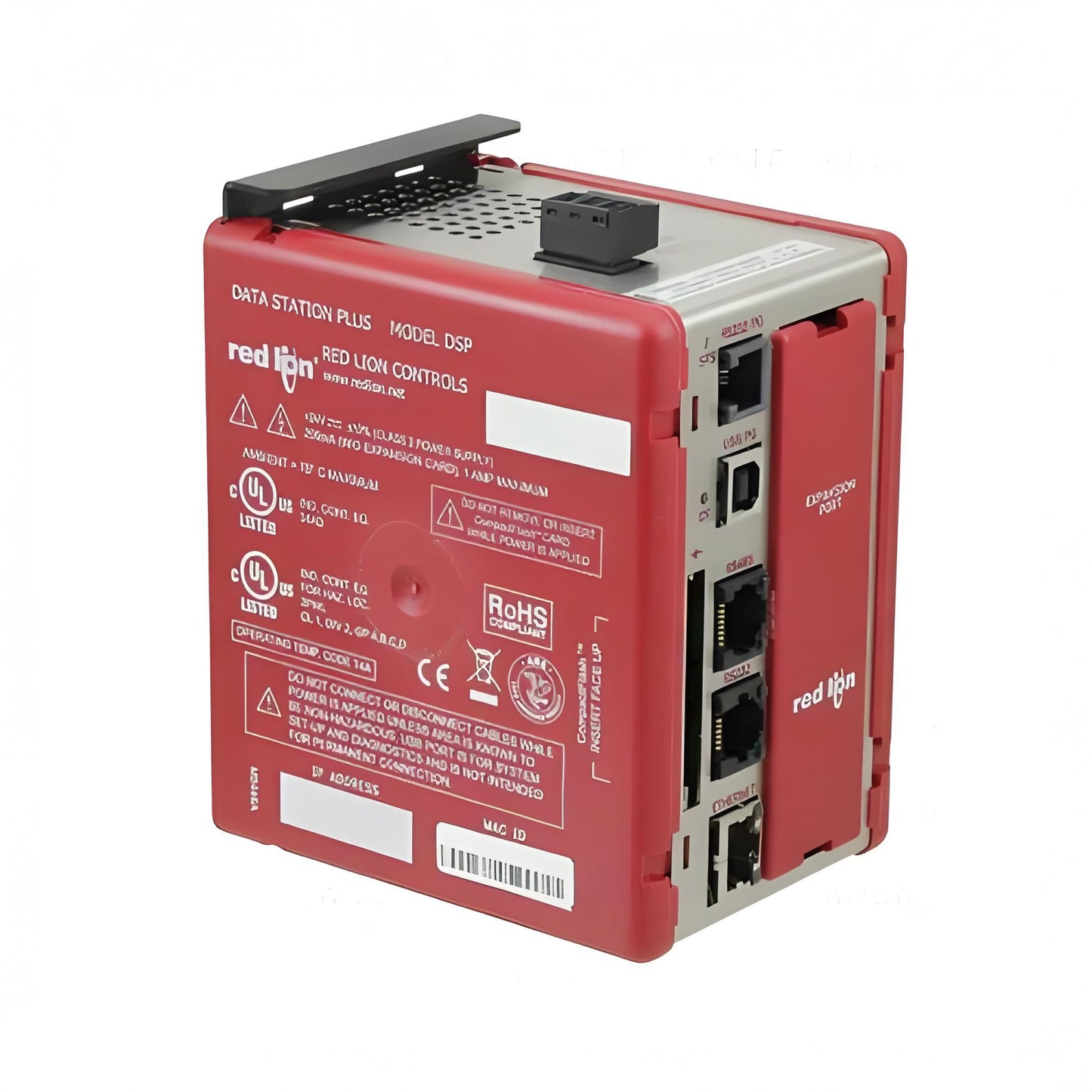

Model DSPSX001 (Data Station Plus SX, Extended Temperature Version)

Product Category    Industrial Protocol Converter, Data Logger, Virtual HMI, Web Server
Core Functions Multi - protocol conversion, data/event/security logging, virtual HMI (QVGA 320×240), web server, IIoT connectivity
Mounting Standard 35mm DIN rail (top - hat profile)

Power Input    24VDC (18-30VDC), 0.2A typical current draw
Power Consumption    ≤4.8W (24VDC × 0.2A)
Backup Battery    Lithium coin cell (10-year typical lifespan at 25°C), real - time clock (RTC) drift <1 minute/month
Isolation    Serial/Ethernet/USB: Galvanically isolated per industrial standards

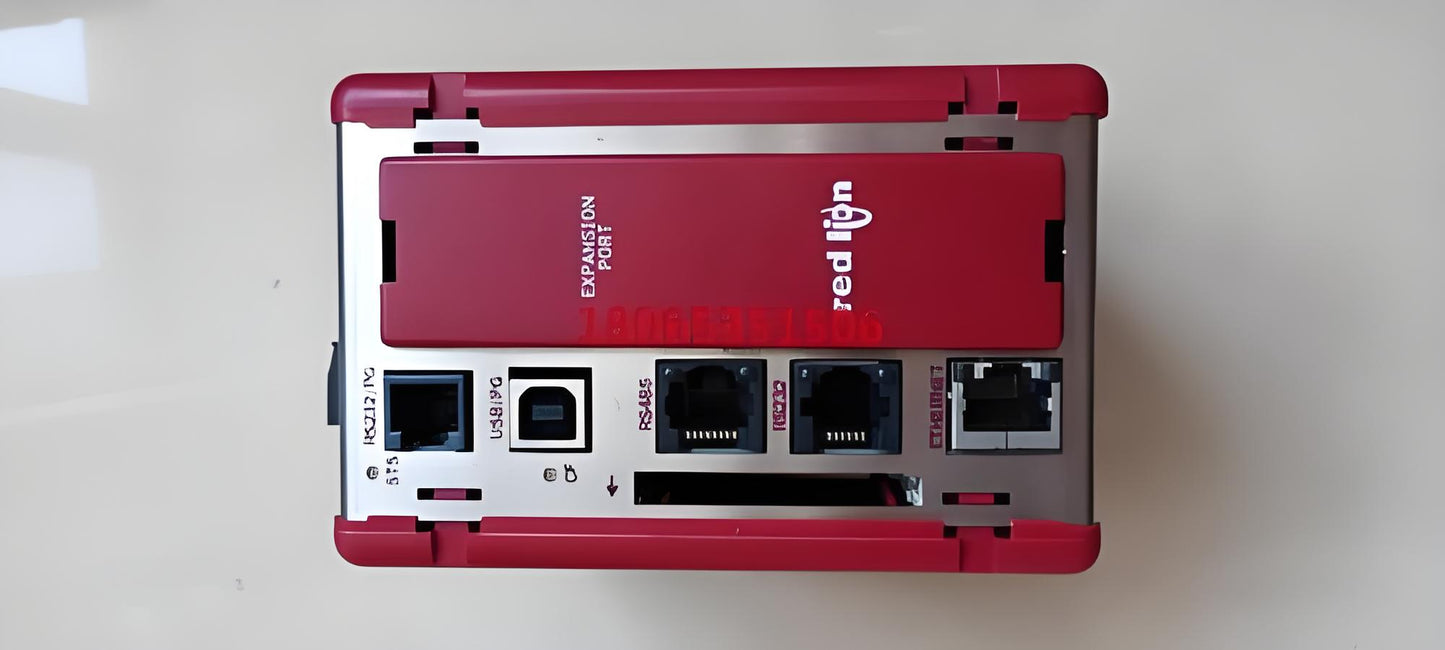

Serial Ports
2×RS232 (RJ12), 1×RS422/485 (RJ45); baud rate up to 115,200 bps, individually configurable
Ethernet
1×10/100Base - T (RJ45); supports up to 4 concurrent protocols, over 300 industrial drivers
USB
USB 1.1 Type B (programming only); for file transfer and CF card mounting
Expansion
1×CompactFlash (Type II) slot (supports Type I/II cards) for data logging & custom web pages
Protocols
Modbus RTU/TCP, Ethernet/IP, PROFIBUS - DP, DNP3, etc. (via built - in drivers)

1  .Our company specializes in automation industrial control accessories. We have more than 100,000 products.

 Including : frequency converter, servo driver, servo motor,   data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial   computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
 3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please    contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
