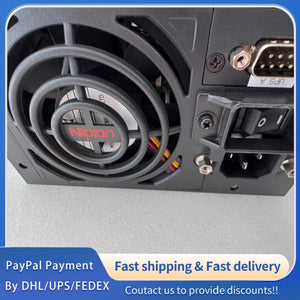

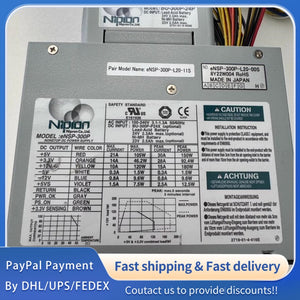

1 PCS used Nipron BU‑300P‑24P & eNSP‑300P Medical Power Supply#LYQ007
1 PCS used Nipron BU‑300P‑24P & eNSP‑300P Medical Power Supply#LYQ007
| Item | Specification | Conditions |
|---|---|---|
| Model | eNSP‑300P‑L20‑S (=00,10,11,12,16) | With BU‑300P‑24P battery unit |
| Input Voltage (AC) | 85–264 VAC | Universal input |
| Input Frequency | 47–63 Hz | 50/60 Hz nominal |
| Inrush Current | ≤50 A peak (100 VAC) ≤100 A peak (240 VAC) | At rated output |
| Input Power | ≤330 VA (continuous) ≤495 VA (peak) | At rated input |
| Efficiency | 68% typ (100 VAC) 71% typ (240 VAC) | At rated output |
| Power Factor | 98% typ (100 VAC) 92% typ (240 VAC) | At rated output |
| Operating Temp | 0–50 °C | Derate above 40 °C |
| Storage Temp | −25–70 °C | No condensation |
| Humidity | 10–90% RH (operating) 10–95% RH (storage) | Non‑condensing |
| Vibration | 0.15 mm, 10–55 Hz, 45 min/axis | JIS‑C‑60068‑2‑6 |
| Shock | 150 m/s², 11 ms, 1 shock/axis | JIS‑C‑60068‑2‑27 |
| Isolation Voltage | 1500 VAC (1 min) | AC‑FG, DC‑FG, DC‑DC |
| Insulation Resistance | ≥50 MΩ | DC 500 V |
| Leakage Current | ≤0.5 mA (100 VAC) ≤1.0 mA (240 VAC) | 1 kΩ load |
| Safety | UL60950, CSA C22.2 No.60950, CE (IEC62368‑1) | Medical‑grade |
| Cooling | Forced air (variable speed fan) | Temp‑controlled |
| Warranty | 3 years | Under normal conditions |
