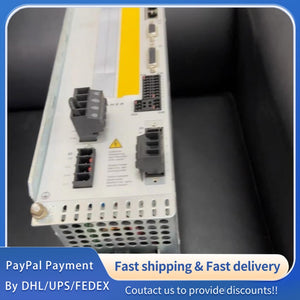

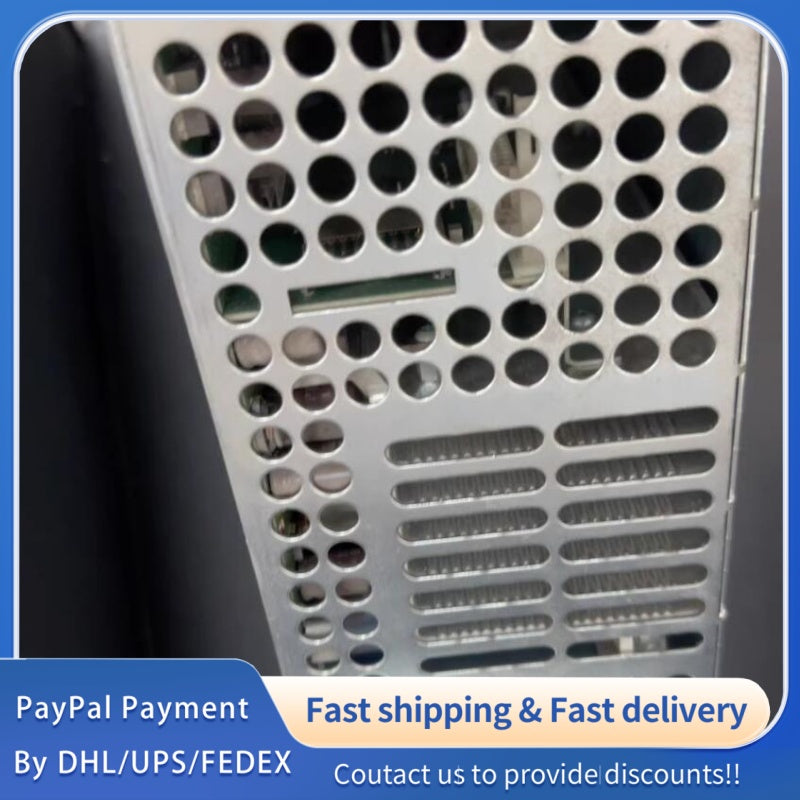

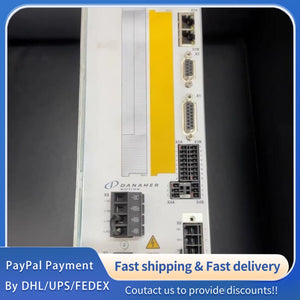

1 PCS used Kollmorgen S72401-NA / S72401100104080 servo drive #LYQ007
1 PCS used Kollmorgen S72401-NA / S72401100104080 servo drive #LYQ007
| Parameter | Value | Unit |
|---|---|---|
| Model Identification | ||
| Base Model | S72401-NA | - |
| Full Order Code | S72401100104080 | - |
| Product Line | ServoStar S700 Digital Servo Amplifier | - |
| Safety Configuration | Single-channel STO (Safe Torque Off) | - |
| Electrical Input | ||
| Rated Supply Voltage | 3-phase 208–480 VAC (±10%), 50/60 Hz; grounded supply | V~ |
| Rated DC Bus Voltage | 290 – 675 | Vdc |
| Rated Input Power (S1) | 18 | kVA |
| Output Performance | ||
| Rated Output Current (RMS, ±3%) | 24 (at 208/230/400/480 VAC) | Arms/phase |
| Peak Output Current (Typical) | 72 (3× rated, limited by duty cycle) | Arms/phase |
| Communication Interfaces | ||
| Onboard | EtherCAT, CANopen, RS232 | - |
| Expansion Support | PROFINET, DeviceNet, PROFIBUS DP, SERCOS II (via cards) | - |
| Feedback Compatibility | ||
| Standard | Resolver, Incremental Encoder, Sine Encoder | - |
| Single Cable | SFD3, Hiperface DSL | - |
| Safety & Compliance | ||
| Safety Function | STO (SIL2/PL d compliant) | - |
| Approvals | CE, UL, TÜV, GOST-R | - |
| Mechanical & Environmental | ||
| Operating Temperature | -20 – 40 °C (derate 1%/K above 40 °C up to 50 °C) | °C |
| Storage Temperature | -40 – 85 | °C |
| Relative Humidity | 5 – 95% (non-condensing) | %RH |
| Mounting | Panel mount (vertical recommended) | - |
| Key Features | ||
| Core Features | Autotuning, Cogging Suppression, IEC 61131 Macro Programming, MMC Card Slot (Parameter/Firmware Backup) | - |
