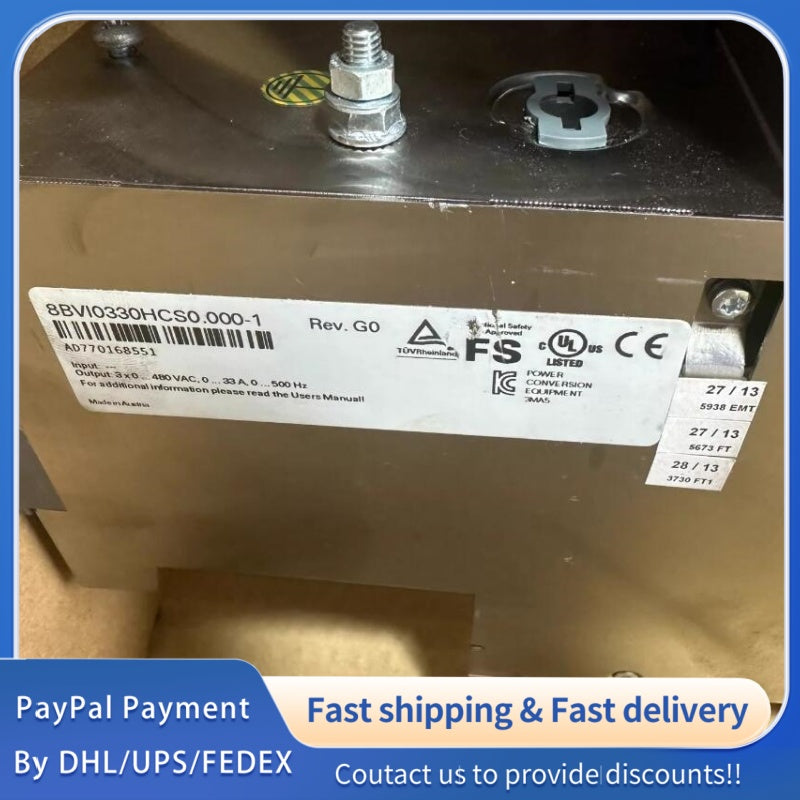

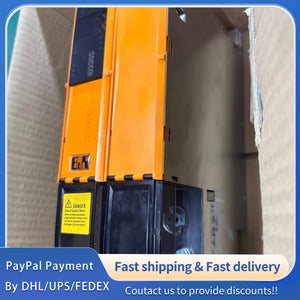

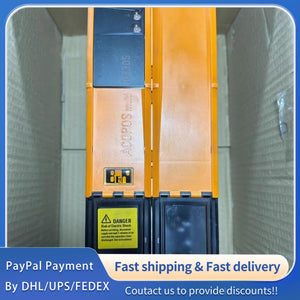

1 PCS used B&R 8BVI0330HCS0.000-1 Rev.G0 servo drive#LYQ007
1 PCS used B&R 8BVI0330HCS0.000-1 Rev.G0 servo drive#LYQ007
| Parameter | Value |
|---|---|
| General Information | |
| Product Type | ACOPOSmulti Single‑Axis Inverter Module |
| B&R ID Code | 0xAD77 |
| Cooling/Mounting | Cold plate or pass‑through mounting |
| Plug‑in Module Slots | 2 |
| Dynamic Node Allocation (DNA) | Yes |
| Certifications | |
| CE | Yes |
| UKCA | Yes |
| CRA | Evaluation ongoing |
| Functional Safety | Yes |
| UL | cULus E225616 (Power conversion equipment) |
| KC | Yes |
| DC Bus Connection | |
| Nominal Voltage | 750 VDC |
| Continuous Power Consumption | 24.4 kW |
| DC Bus Capacitance | 990 µF |
| Power Dissipation (5 kHz) | [0.07 × I<sub>M</sub>² + 7.3 × I<sub>M</sub> + 40] W |
| Power Dissipation (10 kHz) | [0.2 × I<sub>M</sub>² + 11.1 × I<sub>M</sub> + 130] W |
| Power Dissipation (20 kHz) | [1.85 × I<sub>M</sub>² + 3.8 × I<sub>M</sub> + 300] W |
| 24 VDC Power Supply | |
| Input Voltage | 25 VDC ±1.6% |
| Input Capacitance | 32.9 µF |
| Max. Power Consumption | 25 W + P<sub>SLOT1</sub> + P<sub>SLOT2</sub> + P<sub>24V Out</sub> + P<sub>HoldingBrake</sub> |
| 24 VDC Output | |
| Quantity | 2 |
| Output Voltage (260–315 VDC Bus) | 25 VDC × (U<sub>DC</sub>/315) |
| Output Voltage (315–800 VDC Bus) | 24 VDC ±6% |
| Fuse Protection | 250 mA (slow‑blow) electronic, automatic reset |
| Motor Connection | |
| Quantity | 1 |
| Continuous Power (per motor) | 24 kW |
| Continuous Current (per motor) | 33 A<sub>eff</sub> |
| Peak Current | 83 A<sub>eff</sub> |
| Nominal Switching Frequency | 5 kHz |
| Switching Frequencies | 5 / 10 / 20 kHz |
| Max. Output Frequency | 598 Hz |
| Current Derating (5 kHz, Cold Plate) | 0.8 A/K (starting at 45°C) |
| Current Derating (5 kHz, Pass‑through) | 1.26 A/K (starting at 40°C) |
| Current Derating (10 kHz, Cold Plate) | 0.62 A/K (starting at 6°C) |
| Current Derating (10 kHz, Pass‑through) | 0.37 A/K (starting at −36°C) |
| Current Derating (20 kHz, Cold Plate) | 0.32 A/K (starting at −82°C) |
| Current Derating (20 kHz, Pass‑through) | 0.24 A/K (starting at −137°C) |
| Altitude Derating | 3.3 A<sub>eff</sub> per 1000 m (above 500 m) |
| Motor Insulation Stress | IEC TS 60034‑25:2004 Limit value curve A |
| Max. Motor Cable Length | 25 m (all switching frequencies) |
| Motor Holding Brake Connection | |
| Quantity | 1 |
| Output Voltage | 24 VDC +5.8% / −0% |
| Continuous Current | 4.2 A |
| Max. Internal Resistance | 0.15 Ω |
| Extinction Potential | Approx. 30 V |
| Max. Extinction Energy | 3 Ws per switching operation |
| Max. Switching Frequency | 0.5 Hz |
| Environmental & Mechanical | |
| Degree of Protection | IP20 (EN 60529) |
| Operating Temp. | −25 to +60°C (horizontal); −25 to +50°C (vertical) |
| Storage/Transport Temp. | −40 to +85°C |
| Relative Humidity | 5–95% non‑condensing (operate/store/transport) |
| Width | 106.5 mm |
| Height | 317 mm |
| Depth (Cold Plate) | 212 mm |
| Depth (Pass‑through) | 209 mm |
| Weight | Approx. 4.3 kg |
| Module Width | 2 |
