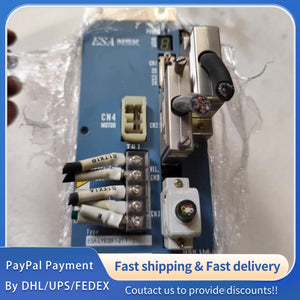

• Manufacturer: NSK Ltd.
• Product Type: Megatorque Servo Drive Unit
• Model: ESA-LYB3BF1-21.1
• System: ESA Series Direct Drive Servo System
• Standards: UL508C, EN50178, CE (LVD/EMC)

• Parameter Category	Parameter Name	ESA-LYB3BF1-21.1 Specification
  Power Input	Main Power Supply	Single-phase 200–230 VAC, ±10%, 50/60 Hz
  	Control Power Supply	Single-phase 200–230 VAC, ±10%
  	Power Capacity (Rated)	1.1 kVA
  	Power Capacity (Max)	5.1 kVA
  Output	Rated Output Current	4.5 Arms
  	Max Output Current	14.9 Arms
  	Output Type	Servo motor drive (direct drive compatible)
  Control & Feedback	Position Sensor Resolution	Up to 1,310,720 count/rev (quadrupled: 5,242,880 count/rev)
  	Max Pulse Input Frequency	1 MHz (photo coupler input)
  	Input Signal Format	CW/CCW, Pulse+Direction, ΦA/ΦB
  	Feedback Signal	ΦA/ΦB/ΦZ line driver
  	Control Modes	Position, Velocity, Torque; Program operation (256 channels), Jog, Home return
  I/O Specifications	Control Inputs	17 ports, 24 VDC, photo coupler isolated
  	Control Outputs	7 ports, 24 VDC/50 mA max switching capacity
  	Communication	RS-232C (9600 bps); CC-Link Ver.1.10 (optional)
  	Analog Monitor	2 channels (free range/offset setting)
  Environmental	Operating Temperature	0–50 °C
  	Storage Temperature	-20–70 °C
  	Humidity	≤90% RH (non-condensing)
  	Vibration Resistance	4.9 m/s²
  	Protection Level	IP20 (enclosure)
  Mechanical	Weight	Approx. 1.8 kg (standard); 2.0 kg (CC-Link compatible)
  	Connectors	CN1 (RS-232C, D-sub 9-pin); CN2 (I/O, 50-pin); CN3 (Resolver); CN4 (Motor); CN5 (I/O); CN6 (Power)
  Functions	Regeneration	Built-in resistor; external dump resistor optional
  	Dynamic Brake	Power-off/servo-off/warning activation
  	Self-Diagnosis	Overheat, overcurrent, overvoltage, position error, etc.
  	Data Backup	EEPROM (100,000 write cycles)

1  .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
 Including : frequency converter, servo driver, servo motor,   data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial   computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
 3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please    contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
