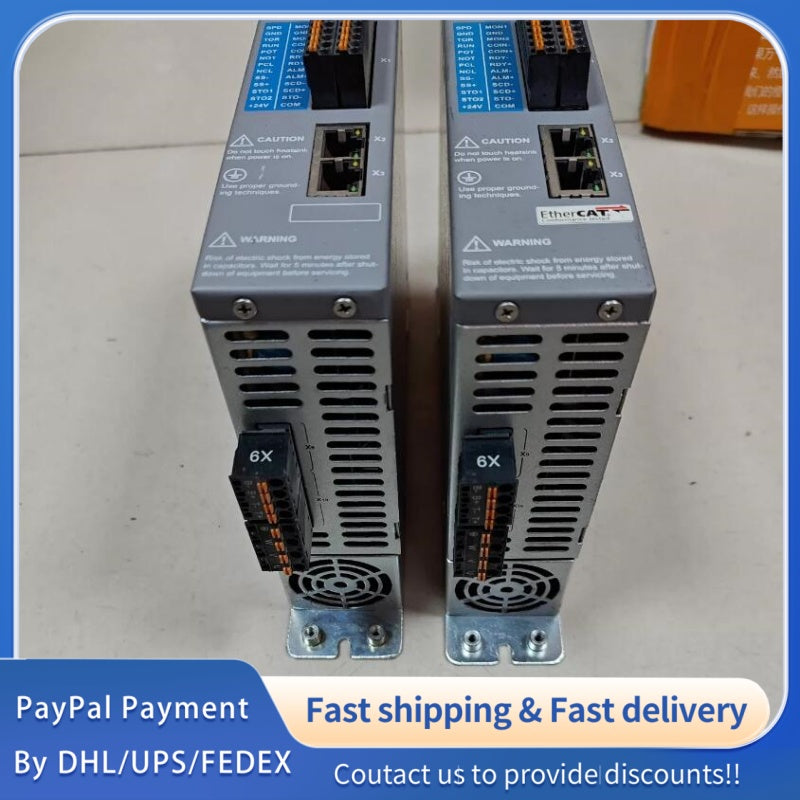

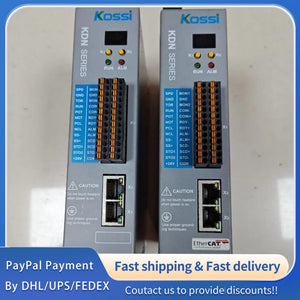

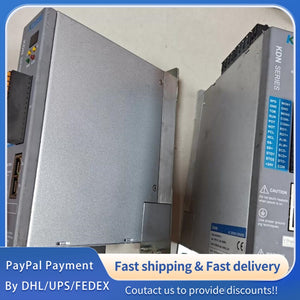

1 PCS used KOSSI KDN2-0033L-E Servo Drive#LYQ007
1 PCS used KOSSI KDN2-0033L-E Servo Drive#LYQ007
| Item | Specification |
|---|---|
| Model | KDN2-0033L-E |
| Rated Output Power | 0.3 kW |
| Input Voltage | Single‑phase / Three‑phase AC 200–240 V, 50/60 Hz |
| Control Power Supply | 24 VDC, ±25% |
| Rated Output Current | 1.5 A |
| Peak Output Current | 4.5 A (3× rated) |
| Control Modes | Position (CSP/PP), Velocity (CSV/PV), Torque (CST/PT), and real‑time switching |
| Current Loop Cycle | 50 μs |
| Velocity Loop Cycle | 100 μs |
| Position Loop Cycle | ≤ 200 μs |
| Frequency Response | > 2.5 kHz |
| Speed Regulation Range | > 1:10000 |
| Speed Stability Accuracy | ± 1 rpm |
| Encoder Support | Tamagawa serial, Panasonic serial, Endat 2.1/2.2, Nikon serial, Sick DSL, ABZ, resolver |
| Communication | EtherCAT (min. cycle 62.5 μs) |
| Safety Functions | STO (Safe Torque Off), SS (Safe Stop), SOS (Safe Operation Stop), compliant with EN 61800‑5‑2, EN 954‑1 Cat.4, EN ISO 13849‑1 PLe, EN 61508 SIL3 |
| Cooling | Natural convection / Fan cooling |
| Protection Class | IP20 |
| Operating Temperature | −10 °C to +50 °C |
| Storage Humidity | ≤ 90% RH (non‑condensing) |
| Dimensions (W×H×D) | 60 × 160 × 140 mm |
| Weight | Approx. 1.2 kg |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
