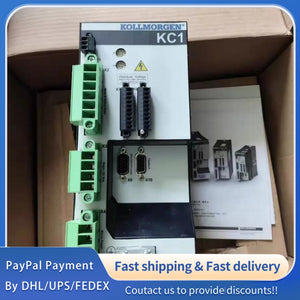

1 PCS NEW Kollmorgen KC1-B02406-NBAN-0000 Servo Drive #LYQ007
1 PCS NEW Kollmorgen KC1-B02406-NBAN-0000 Servo Drive #LYQ007

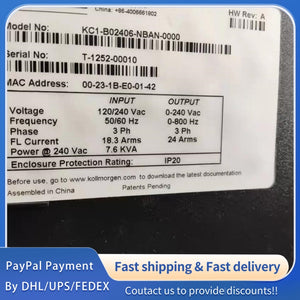

| Parameter Category | Parameter Name | KC1-B02406-NBAN-0000 Specification |
|---|---|---|
| Basic Information | Model Number | KC1-B02406-NBAN-0000 |
| Manufacturer | Kollmorgen | |
| Product Type | Base-type digital servo drive (analog torque/velocity control) | |
| Hardware Revision | B | |
| Document Revision | F (Dec 2014) | |
| Power Supply | Rated Supply Voltage | 3-phase 120–240 VAC ±10%, 50–60 Hz |
| DC Bus Voltage | 170–340 VDC | |
| Auxiliary Supply | 24 VDC ±10%, 20 mA | |
| Output Ratings | Continuous Output Current | 24 Arms |
| Peak Output Current (5s) | 72 Arms (3× rated) | |
| Continuous Output Power (3×240V) | 5000 W | |
| Peak Output Power (1s) | 10 kVA | |
| Output Frequency | 0–800 Hz | |
| Control & Feedback | Control Interface | Analog torque/velocity command |
| Encoder Support | SFD, Tamagawa SmartAbs, incremental, EnDat 2.2, BiSS C | |
| Velocity Bandwidth | 0–600 Hz (scalable) | |
| Safe Torque Off (STO) | SIL 2 (IEC 61508), PLd (ISO 13849-1) | |
| I/O Characteristics | Digital Inputs | 3.5–30 VDC, 2–15 mA; galvanic isolation 250 VDCKollmorgen |
| Digital Outputs | Max 30 VDC, 100 mA; short-circuit proofKollmorgen | |
| Analog Outputs | ±10 VDC, nonlinearity <0.1% FS | |
| Regeneration | Internal Regen Resistor | 8 Ω, 200 W continuous; 22 kW peak (0.5s) |
| External Regen Resistor | 15 Ω, 6 kW continuous; 11.8 kW peak (1s) | |
| DC Bus Capacitance | 2720 µF | |
| Mechanical Data | Dimensions (W×H×D) | 158 × 394 × 292 mm |
| Weight | Approx. 28 kg | |
| Mounting | Panel/bracket mounting | |
| Environmental | Operating Temperature | 0–45 °C |
| Storage Temperature | -20–70 °C | |
| Humidity | 5–95% RH (non-condensing) | |
| Protection | IP20 (enclosure) | |
| Wiring & Protection | Recommended Fuse | 30 A time-delay (LPJ30SP/DFJ30) |
| Motor Cable (X2) | 10 mm² (8 AWG), 30 A, 600 V | |
| Power Cable (X3/X4) | 4 mm² (12 AWG) | |
| Overvoltage Protection | ≤1000 V peak (phase-to-phase); ≤2000 V peak (phase-to-ground) |
