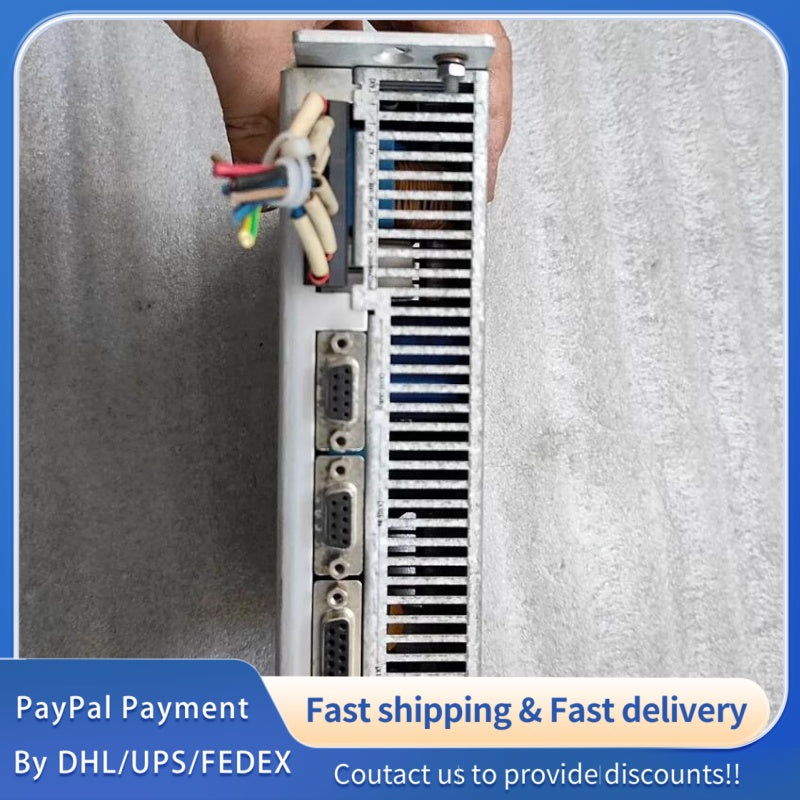

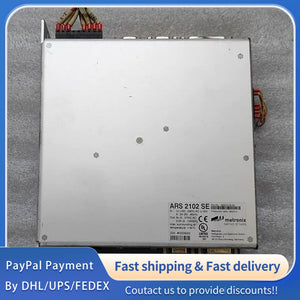

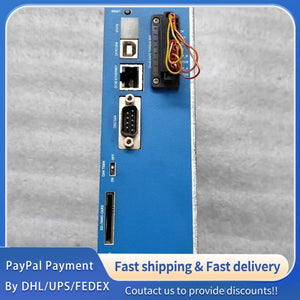

1 PCS used Metronix Servo Drive ARS2102SE #LYQ007
1 PCS used Metronix Servo Drive ARS2102SE #LYQ007
| Parameter Category | Parameter Name | ARS2102SE Specification |
|---|---|---|
| Basic Information | Product Model | ARS2102SE (Alternative: ARS‑2102‑SE) |
| Manufacturer | Metronix Meßgeräte und Elektronik GmbH (Germany) | |
| Product Series | ARS 2000 SE (Single‑phase input) | |
| Product Type | Digital AC Servo Drive / Positioning Controller | |
| Certifications | CE, UL, STO (Cat.4 / PL e, SIL CL3) | |
| Input Power | Supply Voltage | 1‑phase 100–230 VAC ±10%, 50/60 Hz |
| Mains Current (Continuous) | ≤ 2.4 A RMS (without PFC)metronix | |
| DC Bus Voltage | 360–380 VDC (active PFC) | |
| Output Power | Rated Output Power | 0.5 kW (at 230 VAC) |
| Peak Output Power (5s) | 1.0 kW | |
| Rated Output Current (IR) | 2.5 A RMS | |
| Peak Output Current (5s) | 5 A RMS | |
| Peak Output Current (0.5s) | 10 A RMSmetronix | |
| Output Voltage | 0–270 VAC | |
| Output Frequency | 0–1000 Hz | |
| Switching Frequency | 12 kHz (programmable) | |
| Control & Feedback | Control Modes | Position, Velocity, Torque; Point‑to‑point, Master‑Slave |
| Encoder Interfaces | Resolver, Incremental, Absolute (EnDat 2.1/2.2, HIPERFACE®) | |
| Communication | CANopen (DS402), RS232 (optional) | |
| Positioning Resolution | Dependent on encoder (typically ≤ 1 μm) | |
| Brake System | Brake Chopper | Integrated |
| Internal Brake Resistor | 50 Ω, 10 W continuous | |
| External Brake Resistor | Up to 500 W continuous (optional) | |
| Electrical Ratings | Insulation Resistance | ≥ 100 MΩ (500 VDC) |
| Dielectric Strength | 2.5 kVAC (1 min, input‑output‑ground) | |
| Control Supply | 24 VDC ±10%, ≤ 0.5 A (separate) | |
| Mechanical Data | Dimensions (H×W×D) | 200 × 54 × 200 mm (housing) |
| Dimensions (with plate) | 261 × 54.6 × 205 mm | |
| Weight | Approx. 1.8 kg | |
| Mounting | DIN rail or panel mounting | |
| Environmental Ratings | Operating Temperature | 0°C to +40°C (derate 2.5%/°C above 40°C)metronix |
| Storage Temperature | -25°C to +70°Cmetronix | |
| Operating Humidity | 5–95% RH (non‑condensing) | |
| Vibration Resistance | 10–500 Hz, 2 g (IEC 60068‑2‑6) | |
| Shock Resistance | 15 g, 11 ms (IEC 60068‑2‑27) | |
| Protection Class | IP20 (front), IP00 (terminals) | |
| Installation Altitude | ≤ 2000 m above sea levelmetronix | |
| Safety Features | Safe Torque Off (STO) | Category 4 / PL e (EN ISO 13849‑1), SIL CL3 (EN 62061) |
| Overcurrent Protection | Integrated, 4× overload capability | |
| Overvoltage/Undervoltage | Automatic shutdown with fault indication | |
| Overtemperature | Thermal protection for power stage | |
| Indicators | Status LEDs | Power (green), Run (yellow), Fault (red) |
| Display | 7‑segment LED for parameter & fault codes |
