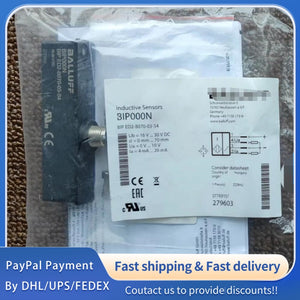

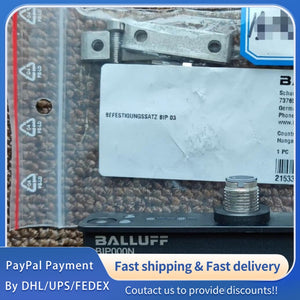

1 PCS new Balluff BIP000N BIP ED2-B070-03-S4 sensor #LYQ007
1 PCS new Balluff BIP000N BIP ED2-B070-03-S4 sensor #LYQ007
| Parameter | Value |
|---|---|
| Order Code | BIP000N |
| Model | BIP ED2-B070-03-S4 |
| Sensor Type | Linear Inductive Positioning Sensor |
| Measuring Range | 0 ... 70 mm |
| Non-linearity | Max. ±300 µm |
| Repeat Accuracy | ±80 µm |
| Output Characteristic | Adjustable |
| Output Signal | 1 x Analog (0 ... 10 VDC) + 1 x Analog (4 ... 20 mA) |
| Output Slope (Current) | 0.23 mA/mm |
| Output Slope (Voltage) | 0.14 V/mm |
| Supply Voltage (Ub) | 16 ... 30 VDC (Nom. 24 VDC) |
| Max. Ripple | 10 % of Ue |
| No-load Current (Io) | Max. 30 mA at Ue |
| Load Resistance (RL) | 500 ... 2000 Ω |
| Rated Insulation Voltage (Ui) | 75 VDC |
| Connection | 4‑pin M12 male connector, A‑coded |
| Protection | Reverse polarity protection, Short‑circuit protection |
| Housing Material | PBT (Polybutylene Terephthalate) |
| Sensing Surface | PBT |
| Dimensions (L x W x H) | 92.5 x 21 x 22 mm |
| Max. Tightening Torque | 3 Nm |
| Ambient Temperature | -25 ... +85 °C |
| Protection Rating | IP67 (IEC 60529) |
| Shock Resistance | 30 g, 11 ms (EN 60068‑2‑27) |
| Vibration Resistance | 55 Hz, 1 mm amplitude, 3 x 30 min (EN 60068‑2‑6) |
| MTTF (40 °C) | 200 years |
| Approvals | CE, UKCA, cURus, WEEE |
| Country of Origin | Hungary |
