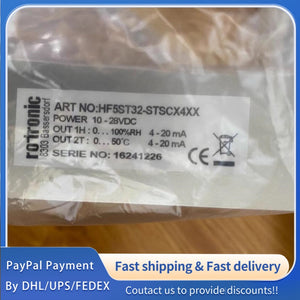

1 PCS NEW Rotronic Humidity & Temperature Sensor HF5ST32-STSCX4XX #LYQ007
1 PCS NEW Rotronic Humidity & Temperature Sensor HF5ST32-STSCX4XX #LYQ007
1 PCS NEW Rotronic Humidity & Temperature Sensor HF5ST32-STSCX4XX #LYQ007
Original Factory Precision Parameters (Brand: Rotronic; Product: Genuine Original Humidity & Temperature Sensor; Model: HF5ST32-STSCX4XX)
|
Parameter Category
|
Parameter Name
|
HF5ST32-STSCX4XX Specification
|
|
Basic Information
|
Product Model
|
HF5ST32-STSCX4XX; Genuine Original Rotronic Humidity & Temperature Sensor, 100% brand-new, unused and unrefurbished genuine parts; High-precision industrial capacitive humidity and temperature integrated sensor.
|
|
Manufacturer Standard
|
Complies with IEC 61010-1, EN 61010-1, DIN EN 60529 Standards; Conforms to Rotronic internal technical and quality norms for humidity & temperature sensors; Passes strict factory precision calibration and performance testing.
|
|
|
Product Application
|
Industrial Automation Systems, Electronic Equipment Environmental Monitoring, Laboratory Testing Equipment, Medical Devices, HVAC Systems, Food & Pharmaceutical Production (GMP compliant), Warehouse Environmental Control, Precision Instrument Protection, Archive Microclimate Monitoring.
|
|
|
Product Type
|
Capacitive Humidity & Temperature Integrated Sensor; Industrial-grade, high-precision sensing component, supporting stable data transmission in harsh industrial environments; Equipped with temperature and humidity compensation function.
|
|
|
Core Sensing Parameters
|
Humidity Measurement Range
|
0% ~ 100% Relative Humidity (RH); Support for condensing environments, no performance degradation in high humidity and condensing conditions.
|
|
Humidity Measurement Accuracy
|
±1.5% RH (20℃ ~ 25℃, 20% ~ 80% RH); ±2.0% RH (Full range); Higher than the ±3% RH accuracy requirement for general pharmaceutical scenarios, ensuring reliable data reference for critical applications.
|
|
|
Temperature Measurement Range
|
-40℃ ~ +85℃; Wide measurement range, suitable for high and low temperature extreme environmental detection scenarios, including archive and pharmaceutical storage environments.
|
|
|
Temperature Measurement Accuracy
|
±0.2℃ (0℃ ~ +65℃); ±0.3℃ (Full range); Meets the ±0.2℃ to ±0.5℃ accuracy requirement for pharmaceutical temperature control, matching humidity measurement performance to ensure integrated data accuracy.
|
|
|
Humidity Hysteresis
|
≤ 0.5% RH; Small hysteresis, fast response to humidity changes, no data deviation caused by environmental humidity fluctuation, suitable for microclimate monitoring with frequent humidity changes.
|
|
|
Response Time
|
≤ 5 seconds (Humidity, τ63); ≤ 3 seconds (Temperature, τ63); Fast response, real-time capture of environmental humidity and temperature changes, ensuring timely monitoring of microclimate environments.
|
|
|
Measurement Resolution
|
0.01% RH (Humidity); 0.01℃ (Temperature); High resolution, capable of detecting tiny changes in humidity and temperature, meeting the requirements of high-precision microclimate detection.
|
|
|
Long-term Stability
|
≤ 0.5% RH/Year; Excellent long-term stability, reducing calibration frequency and maintenance costs, suitable for long-term continuous monitoring in archives and pharmaceutical warehouses.
|
|
|
Core Electrical Parameters
|
Rated Working Voltage
|
DC 3.3V ±10% (Standard); Optional DC 5V ±10%; Low power consumption design, stable power supply ensures consistent data output, suitable for long-term continuous operation systems.
|
|
Operating Current
|
≤ 1.5 mA (Measuring Mode); ≤ 10 μA (Sleep Mode); Ultra-low power consumption, suitable for battery-powered equipment and low-power systems, reducing energy consumption for long-term monitoring.
|
|
|
Output Signal Type
|
I2C / SPI (Dual Interface Optional); Digital Output, anti-interference ability, suitable for long-distance data transmission, compatible with mainstream microcontrollers and industrial monitoring systems.
|
|
|
Data Refresh Rate
|
1 Hz ~ 10 Hz (Adjustable); Default: 1 Hz; Adjustable refresh rate to meet different application scenarios (such as multi-point monitoring in archives) and power consumption requirements.
|
|
|
Insulation Resistance
|
≥ 100 MΩ (500V DC); Excellent insulation performance, preventing short circuit caused by insulation breakdown in industrial environments, ensuring safe operation in humid conditions.
|
|
|
Withstand Voltage
|
500 V AC (1 min); Can withstand instantaneous overvoltage impact, ensuring stable operation in complex electrical environments.
|
|
|
Self-calibration Function
|
Built-in Automatic Self-calibration Function; Regular self-calibration ensures long-term measurement accuracy without manual intervention, reducing maintenance workload for multi-point monitoring systems.
|
|
|
Mechanical Parameters
|
Package Type
|
SMT Package (Surface Mount Technology); Compact size, easy to install on PCB boards, suitable for dense component installation scenarios; PCB layout should avoid stray capacitance to ensure measurement accuracy.
|
|
Dimensions (L×W×H)
|
3.2 mm × 3.2 mm × 0.9 mm (Typical); Ultra-compact structural design, small installation space, suitable for narrow installation environments and multi-point deployment in archives.
|
|
|
Weight
|
≤ 0.01 kg (Net Weight); Ultra-light weight, does not increase the load of electronic equipment and PCB boards, suitable for multi-point installation.
|
|
|
Mounting Type
|
SMT Surface Mount; Compatible with standard SMT production processes, easy to assemble and mass produce, suitable for large-scale multi-point monitoring systems.
|
|
|
Sensing Element Material
|
Polymer Capacitive Material (Humidity); Platinum Resistance (Temperature); High-quality materials ensure stable performance and long service life; Conformal coating is recommended for components to prevent high-humidity damage.
|
|
|
Protection Cover
|
Integrated Anti-dust & Anti-corrosion Protection Cover; Prevents dust, oil and other pollutants from damaging the sensing element, extending service life in harsh industrial and archive environments.
|
|
|
Environmental & Protection Parameters
|
Operating Temperature Range
|
-40℃ ~ +85℃; Consistent with temperature measurement range, stable operation in wide temperature range industrial environments, including archive and pharmaceutical storage.
|
|
Storage Temperature Range
|
-50℃ ~ +100℃; Stable storage performance, convenient for transportation and inventory; No performance degradation after long-term storage, suitable for batch storage of sensors.
|
|
|
Operating Humidity Range
|
0% ~ 100% RH (Non-condensing/condensing); Resists humid industrial environments, no short circuit or signal distortion caused by humidity; Suitable for high-humidity archive and pharmaceutical scenarios.
|
|
|
Vibration Resistance
|
10 ~ 500 Hz, 10 g Amplitude; Resists strong mechanical vibration, no parameter drift or internal component damage, ensuring stability in industrial and archive environments.
|
|
|
Shock Resistance
|
500 m/s² (50 g), 11 ms; Resists mechanical impact during transportation and operation, ensuring product integrity and performance stability for multi-point deployed sensors.
|
|
|
Protection Level
|
IP65; Dustproof and Waterproof, Protected against dust ingress and low-pressure water jets from all directions, suitable for harsh industrial sites and archive warehouses.
|
|
|
Service Life
|
≥ 50000 Operating Hours (Continuous Operation, Standard Working Conditions); Long service life, reducing maintenance costs and equipment downtime for long-term monitoring systems.
|
|
|
Other Technical Parameters
|
Cable Length (Optional)
|
0.5 m (Standard); Optional 1.0 m / 2.0 m; High-temperature resistant and oil-resistant cable, suitable for industrial environment wiring and multi-point deployment in large spaces like archives.
|
|
Compatibility
|
Perfectly Compatible with Various Industrial PLCs, Data Acquisition Devices, Microcontrollers (MCU) and Environmental Monitoring Systems; Matching with mainstream industrial control systems and multi-point monitoring systems for archives and pharmaceuticals.
|
|
|
Factory Calibration
|
100% Factory Calibrated; Strict performance testing and precision calibration before leaving the factory, all parameters consistent with Rotronic official specifications; Calibrated with 30,000 temperature and humidity compensation reference points.
|
|
|
Calibration Cycle
|
Recommended Calibration Cycle: 12 Months; Regular calibration ensures long-term measurement accuracy, adapting to high-precision application requirements in pharmaceuticals and archives.
|
|
|
Operating Pressure Range
|
80 kPa ~ 120 kPa (Atmospheric Pressure Range); Stable operation under normal atmospheric pressure and slight pressure fluctuation environments, suitable for most indoor and industrial scenarios.
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
