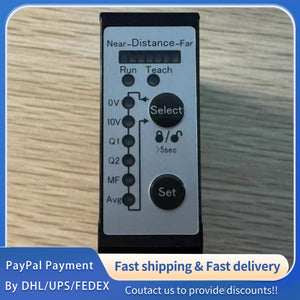

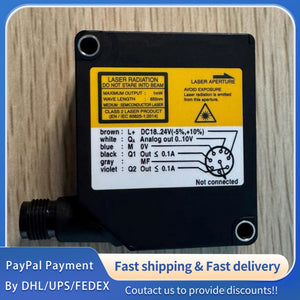

1 PCS used SICK OD2-P120W60U0 sensor#LYQ007
1 PCS used SICK OD2-P120W60U0 sensor#LYQ007
1 PCS used SICK OD2-P120W60U0 sensor#LYQ007
Original Factory Precision Parameters (Model: SICK OD2-P120W60U0 Optical Distance Sensor)
|
Parameter Category
|
Parameter Name
|
OD2-P120W60U0 Specification
|
|
Basic Information
|
Product Model
|
OD2-P120W60U0; SICK Genuine Original Optical Distance Sensor, 100% unused and unrefurbished genuine parts; Industrial-grade precision distance measuring component, specialized for non-contact distance detection with high accuracy
|
|
Manufacturer Standard
|
Manufactured by SICK; Complies with CE, UL, IEC 60947-5-2, ISO 9001, RoHS 2.0 Standards; Conforms to SICK Internal Technical and Quality Norms for Optical Distance Sensors; Anti-EMI/EMS design meets industrial high-precision detection requirements
|
|
|
Product Application
|
Intelligent Manufacturing Workshop Distance Detection, Automatic Assembly Line Positioning, Material Handling Distance Measurement, Packaging Machinery Sizing Detection, Logistics Sorting Position Sensing, Industrial Robot Position Feedback, High-Precision Displacement Detection
|
|
|
Core Measurement Parameters
|
Measurement Principle
|
Optical Triangulation Principle; Non-contact measurement, no damage to measured objects, suitable for soft, fragile or high-precision workpieces
|
|
Measurement Range
|
0.12 m ~ 0.60 m (120 mm ~ 600 mm); Standard measurement range, adjustable measuring interval according to actual application requirements
|
|
|
Measurement Precision
|
±0.1 mm (at 25℃, reference distance 300 mm); High measurement accuracy, ensuring stable and reliable detection results in high-precision application scenarios
|
|
|
Resolution
|
0.01 mm; High resolution, capable of capturing tiny distance changes, adapting to fine detection requirements
|
|
|
Response Time
|
≤1 ms (Fast Mode); ≤5 ms (Standard Mode); Switchable response modes, adapting to different detection speed requirements of industrial scenes
|
|
|
Repeat Accuracy
|
≤±0.05 mm (at 25℃, reference distance 300 mm); High repeatability, ensuring consistent detection results in high-frequency cyclic detection scenarios
|
|
|
Measuring Spot Size
|
φ1 mm (at reference distance 300 mm); Small measuring spot, suitable for detecting small-sized workpieces or narrow positions
|
|
|
Light Source Type
|
Visible Red Light (650 nm); Class 2 Laser Safety Standard; Visible light source, easy for installation and alignment, safe to use in industrial environments
|
|
|
Electrical & Power Parameters
|
Power Supply Voltage
|
DC 10 ~ 30 V; Wide voltage range, adapting to unstable industrial power supply environment, ensuring stable operation of the sensor
|
|
Rated Current
|
≤50 mA (DC 24 V, Full Load); Low power consumption, reducing energy consumption of the whole detection system, suitable for long-term continuous operation
|
|
|
Input Signal Type
|
Control Signal: NPN/PNP Input (2 Channels); Zero Point/Measurement Range Calibration Input; Compatible with various industrial controllers and PLC systems
|
|
|
Output Signal Type
|
Analog Output: 4~20 mA DC / 0~10 V DC (Switchable); Digital Output: 2 x NPN/PNP (NO/NC, Configurable); Convenient for data transmission and equipment linkage control
|
|
|
Power Supply Ripple
|
≤1% of Nominal Voltage; Low power supply ripple, avoiding interference to measurement signals and ensuring stable detection performance
|
|
|
Leakage Current
|
≤0.01 mA; Low leakage current, avoiding false signal output and ensuring reliable operation of the sensor and detection system
|
|
|
Insulation Resistance
|
≥500 MΩ (500 V DC); High insulation performance, preventing electric leakage, ensuring safe operation in industrial high-voltage environment
|
|
|
Efficiency
|
≥90% (Full Load); High energy efficiency, reducing long-term operation costs of the industrial detection system
|
|
|
Protection & Safety Parameters
|
Over-Current Protection
|
Automatic Current Limiting & Alarm; Cut off output when load current exceeds 150% of rated value, protect internal circuits of the sensor and power supply system
|
|
Short-Circuit Protection
|
Instantaneous Short-Circuit Protection (Response Time ≤1 ms); Automatic Recovery after Fault Elimination; Prevent damage to the sensor caused by output short circuit
|
|
|
Reverse Polarity Protection
|
Built-in Reverse Polarity Protection Circuit; Prevent sensor damage caused by wrong power supply connection, standard configuration for SICK industrial sensors
|
|
|
ESD Protection
|
±15 kV (Contact), ±25 kV (Air); Effectively resist static electricity interference in industrial environment, avoiding damage to internal optical and electronic components
|
|
|
Surge Protection
|
±2 kV (Power Supply); ±1 kV (Input/Output); Resist voltage surge interference in industrial power grid and signal lines, ensure stable operation in harsh electrical environment
|
|
|
Waterproof & Dustproof Protection
|
Protection Class IP67; Effective waterproof and dustproof, suitable for installation in harsh industrial production sites, avoiding damage caused by dust and water immersion
|
|
|
Over-Temperature Protection
|
Alarm & Cut Off Output when Internal Temperature Exceeds 70℃; Automatic Recovery after Temperature Returns to Normal (≤60℃); Protect internal components from overheating damage
|
|
|
Over-Voltage Protection
|
Cut off Power & Alarm when Power Supply Voltage Exceeds 32 V DC; Prevent damage caused by abnormal power supply voltage in industrial power grid
|
|
|
Under-Voltage Protection
|
Alarm & Cut off Output when Power Supply Voltage is Lower than 9 V DC; Avoid sensor malfunction caused by low voltage, protect detection data accuracy
|
|
|
Environmental & Structural Parameters
|
Operating Temperature
|
-10℃ ~ 60℃; Stable operation in extreme temperature environments, adapt to various industrial working conditions such as high-temperature workshops and low-temperature warehouses
|
|
Storage Temperature
|
-40℃ ~ 85℃; Stable storage performance, no performance degradation after long-term storage in harsh environments, convenient for transportation and inventory
|
|
|
Relative Humidity
|
5% ~ 95% (Non-Condensing); Resists humid industrial environments, no short circuit or malfunction caused by humidity, ensuring stable operation in coastal or wet areas
|
|
|
Installation Type
|
Bracket Installation / Flange Installation (Switchable); Equipped with Standard Mounting Accessories; Easy to Install and Disassemble, Compatible with Standard Industrial Control Cabinets and Detection Equipment
|
|
|
Dimensions (L×W×H)
|
58×40×32 mm (±0.1 mm); Compact structure, small installation space, easy to integrate with industrial automation systems and detection equipment
|
|
|
Structure Material
|
Housing: ABS Engineering Plastic (High Strength & Anti-Corrosion); Optical Lens: Optical Glass (Anti-Scratch & Anti-Fog); High strength, wear-resistant, corrosion-resistant, adapting to harsh industrial environment, long service life
|
|
|
Functional & Other Parameters
|
Communication Interface
|
Supports RS485, IO-Link v1.1 Communication Protocols; Real-time data transmission and remote parameter configuration, convenient for integration into industrial automation control systems
|
|
Cable Length
|
2.0 m (Standard); High-Temperature Resistant Shielded Cable; High flexibility, oil-resistant, wear-resistant, anti-interference, suitable for industrial on-site wiring
|
|
|
Vibration Resistance
|
10~500 Hz, 1.0 mm Amplitude; Resist mechanical vibration generated by industrial equipment operation, ensure stable measurement performance
|
|
|
Shock Resistance
|
50 g (11 ms); Resist mechanical shock caused by equipment collision or transportation, avoid component damage and measurement deviation
|
|
|
Service Life
|
≥100000 Operating Hours (Continuous Operation, Standard Working Conditions); High reliability, reducing maintenance frequency and cost of the detection system
|
