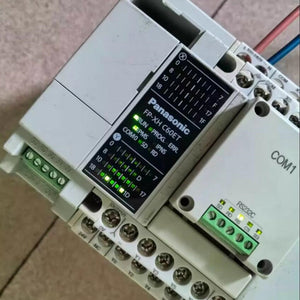

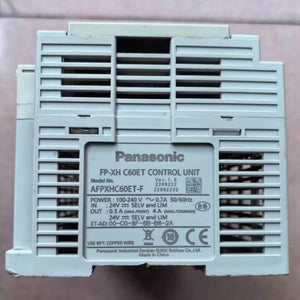

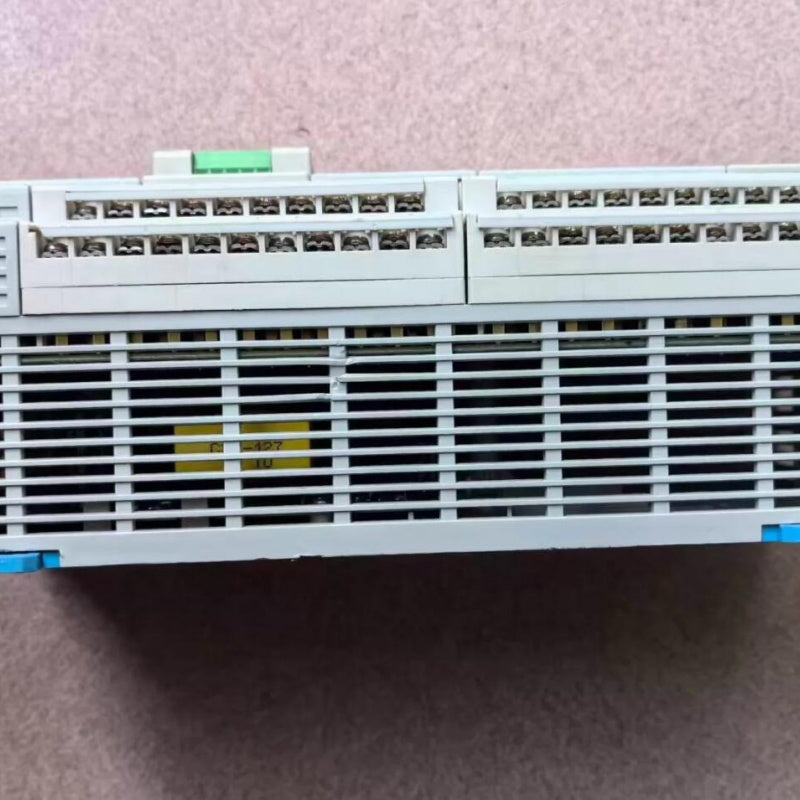

1 PCS USED Panasonic PLC Controller AFPXHC60ET-F#LYQ007
1 PCS USED Panasonic PLC Controller AFPXHC60ET-F#LYQ007
| Item | Specification |
|---|---|
| Model | AFPXHC60ET-F |
| Series | FP-XH (Ethernet Type) |
| Total I/O Points | 60 points (32 Inputs, 28 Outputs) |
| Input Type | 32-point DC 24V sink type (NPN) |
| Output Type | 28-point NPN transistor (sink type), 0.5A per point |
| Power Supply | 100–240V AC (50/60Hz) |
| CPU | 32-bit RISC high-speed processor |
| Basic Instruction Execution Speed | 0.04 μs/step (first 10k steps) |
| Application Instruction Execution Speed | 0.14 μs/step |
| Program Memory | Built-in Flash-ROM (no backup battery required), max. 96k steps |
| Data Register | 128k words |
| High-speed Counter | 8 channels (single-phase max. 100kHz, two-phase max. 50kHz) |
| Pulse Output | 6 channels, max. 100kHz |
| Communication Ports | - Ethernet: 10/100Base-TX (supports Modbus TCP, Ethernet/IP, MC Protocol)
|
| PLC Link Function | Up to 16 units, link relay: 1024 points, link register: 128 words |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Ambient Humidity | 10%RH to 95%RH (no condensation at 25°C) |
| Vibration Resistance | 5Hz to 8.4Hz |
| Overvoltage Category | II |
| Pollution Degree | 2 |
| Weight | Approx. 3kg |
| Dimensions | (W×H×D) 140mm × 90mm × 85mm (approx.) |
| Programming Languages | Ladder Diagram (LD), Instruction List (IL), Structured Text (ST) |
| Supported Software | FPWIN Pro |
