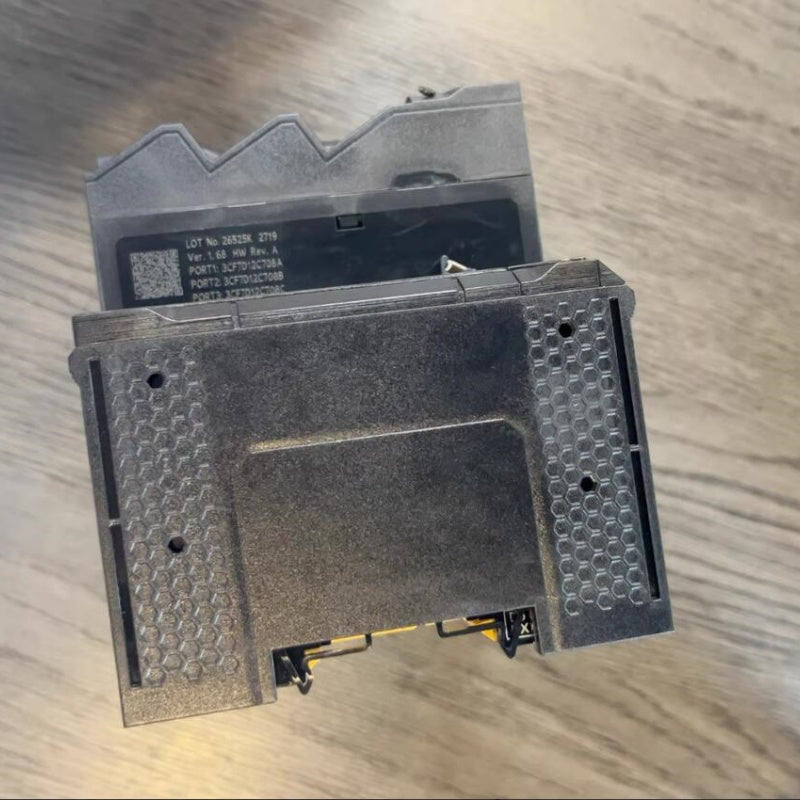

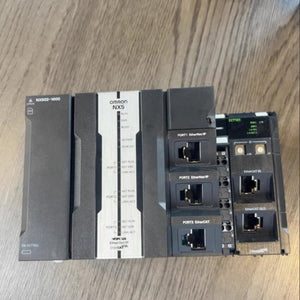

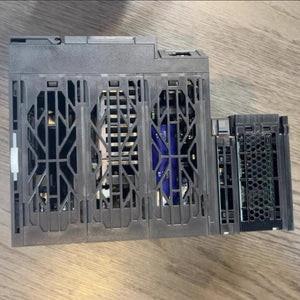

1 PCS USED OMRON NX502-1600 PLC Module #LYQ007
1 PCS USED OMRON NX502-1600 PLC Module #LYQ007
| Item | Specification |
|---|---|
| Model | NX502-1600 |
| Controller Type | Sysmac NX5 CPU Unit with SQL Database Connectivity |
| Primary Task Cycle Time | 0.250 ms |
| Program Memory | 80 MB |
| Variables Memory | 260 MB (4 MB Retain / 256 MB Non-Retain)OMRON Industrial Automation |
| Max. Synchronous Axes | 128 axes |
| Max. Axes (Incl. Virtual) | 128 axes |
| Max. Used Real Axes | 128 axesOMRON Industrial Automation |
| Max. EtherCAT Nodes | 256 nodes |
| Max. Expansion Units | 63 NX UnitsOMRON Industrial Automation |
| Communication Ports | - EtherCAT Master (1 port, 100BASE-TX)
|
| Communication Options | EtherCAT Slave, IO-Link, RS-422, RS-485 |
| I/O System | NX I/O Bus |
| Dimensions (W×H×D) | 135 × 100 × 120 mm (including end cover)OMRON Industrial Automation |
| Weight | 920 g max. (including end cover NX-END02)OMRON Industrial Automation |
| Power Supply | 24 VDC (20.4 to 28.8 VDC)OMRON Industrial Automation |
| Power Consumption | 18.3 W max.OMRON Industrial Automation |
| Operating Temperature | 0 to 55°COMRON Industrial Automation |
| Operating Humidity | 10% to 95% (no condensation)OMRON Industrial Automation |
| Instruction Execution Time | LD: 0.53 ns; Math (Long Real): 3.3 nsOMRON Industrial Automation |
| Max. Cam Tables | 640 tables; 65,535 points/tableOMRON Industrial Automation |
| OPC UA Server | Embedded 2017 UA Server Profile; Default Port: 4840OMRON Industrial Automation |
| Database Support | SQL Server 2014–2022, Oracle, PostgreSQLOMRON Industrial Automation |
| Applicable Standards | EU Directives, cULus, RCM, UKCA, KCOMRON Industrial Automation |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
