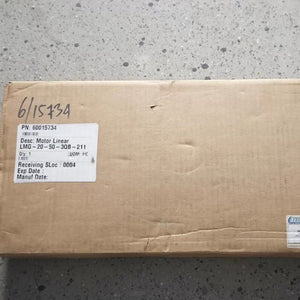

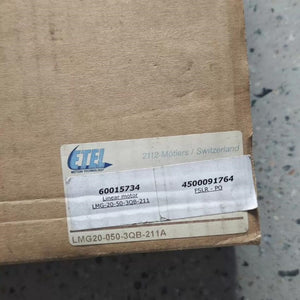

1 pc new ETEL LMG20-050-3QB-211A Linear Motor #LYQ007
1 pc new ETEL LMG20-050-3QB-211A Linear Motor #LYQ007
| Parameter | Value |
|---|---|
| Model Number | LMG20-050-3QB-211A |
| Product Series | LMG (Ironcore Linear Motors) |
| Continuous Force (F<sub>c</sub>) | 444 N (MWD / MWD+ condition) |
| Peak Force (F<sub>p</sub>) | 2220 N (MWD / MWD+ condition) |
| Force Constant (K<sub>f</sub>) | 111 N/A (typical) |
| Phase Resistance (R<sub>ph</sub>) | 1.08 Ω (at 25°C) |
| Phase Inductance (L<sub>ph</sub>) | 2.16 mH (typical) |
| Thermal Resistance (R<sub>th</sub>) | 0.18 °C/W (to ambient) |
| Max. Continuous Current (I<sub>c</sub>) | 4.0 A<sub>rms</sub> |
| Max. Peak Current (I<sub>max</sub>) | 20.0 A<sub>peak</sub> |
| Supply Voltage | 600 VDC compliant |
| Max. Speed | 15 m/s |
| Max. Acceleration | 60 g (depends on load) |
| Winding Type | 3QB (3-phase, specific winding variant) |
| Cooling Method | Free air convection |
| Insulation Class | Class F (155 °C) |
| Max. Winding Temperature | 155 °C |
| Operating Temperature | 0°C to +40°C |
| Protection Rating | IP65 (standard) |
| Mass (Forcer) | 5.0 kg |
| Magnetic Pitch | 60 mm |
| Standard Feedback | 211A (Hi-res encoder interface) |
| Features | Low force ripple, high peak-to-continuous force ratio, compact design |
1.Our company specializes in automation industrial control accessories. We have more than 100,000 products.
?Including : frequency converter, servo driver, servo motor,data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial?? computer,encoder...etc
2.We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over the world.
3.We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store may not accurate,before purchasing please contact us to provide you with exactly quote and real pictures.
4. If you can not find the product which you need in our store, please contact us. We will check it for you.
