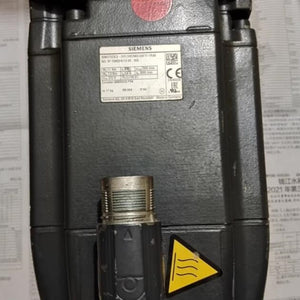

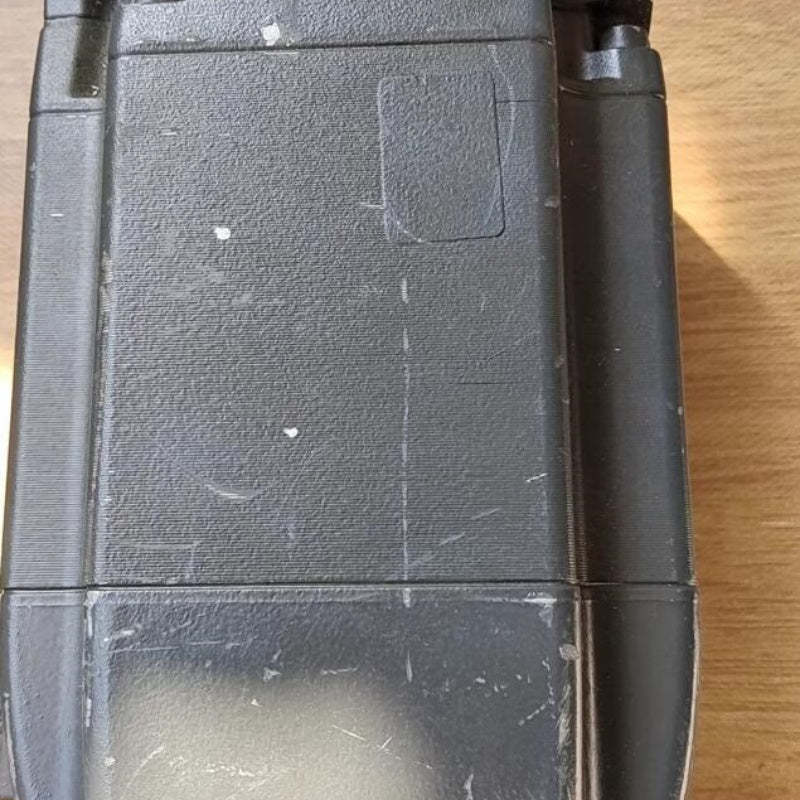

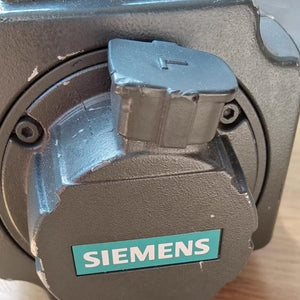

1 PCS used Siemens 1FK7063-2AF71-1RA0 Servo Motor #LYQ007
1 PCS used Siemens 1FK7063-2AF71-1RA0 Servo Motor #LYQ007
| Parameter | Value |
|---|---|
| Motor Type | SIMOTICS S-1FK7 Compact Synchronous Servo Motor |
| Order No. | 1FK7063-2AF71-1RA0 |
| Rated Power (Pₙ) | 2.3 kW |
| DC Link Voltage (U_DC) | 600 V |
| Static Torque (M₀, 100K) | 11 Nm |
| Rated Speed (Nₙ) | 3000 rpm |
| Cooling Method | Natural cooling (IM B5, IM V1, IM V3) |
| Flange Size | Flange 1 |
| Encoder Type | Absolute encoder, 20-bit + 12-bit multiturn, DRIVE-CLiQ (AM20DQI) |
| Shaft | With feather key, tolerance N |
| Holding Brake | Without |
| Degree of Protection | IP65 |
| Stall Current (60K) | 6.50 A |
| Stall Current (100K) | 8.00 A |
| Torque Constant (kT) | 1.37 Nm/A |
| Voltage Constant (kE) | 90.5 V/1000 min⁻¹ |
| Winding Resistance (20°C) | 0.64 Ω |
| Rotating Field Inductance | 8.5 mH |
| Rotor Moment of Inertia | 14.700 kg·cm² |
| Efficiency | 91.0 % |
| Electrical Time Constant | 13.40 ms |
| Mechanical Time Constant | 1.48 ms |
| Thermal Time Constant | 40 min |
| Shaft Torsional Stiffness | 34000 Nm/rad |
| Weight | 11.1 kg |
