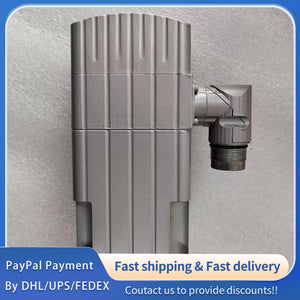

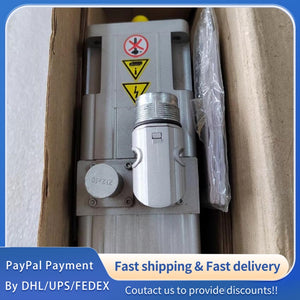

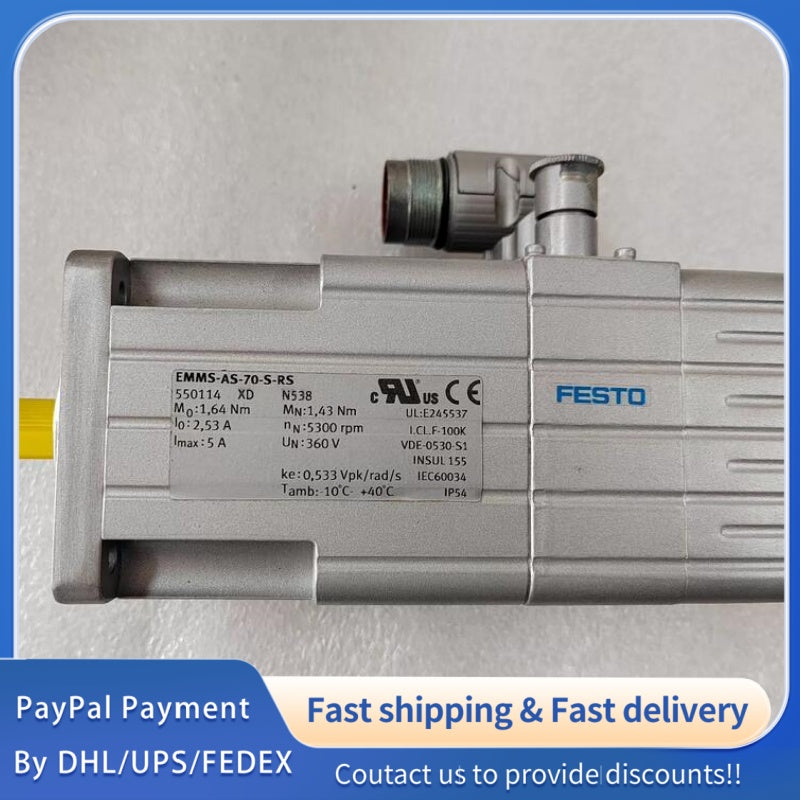

1 PCS used FESTO Servo Motor EMMS-AS-70-S-RS (550114) #LYQ007
1 PCS used FESTO Servo Motor EMMS-AS-70-S-RS (550114) #LYQ007
| Parameter | Value |
|---|---|
| Part Number | 550114 |
| Motor Type | Brushless, permanently excited synchronous servo motor |
| Design | Smooth shaft, short size, LS winding (low‑voltage / standard speed) |
| Supply Voltage (DC) | 360 V |
| Nominal Torque | 1.43 Nm |
| Standstill Torque | 1.64 NmFesto |
| Peak Torque | 3.1 NmFesto |
| Nominal Speed | 5300 rpm |
| Max. Speed | 6450 rpm |
| Nominal Motor Power | 866 W |
| Nominal Current | 2.2 A |
| Peak Current | 5 AFesto |
| Motor Constant | 0.647 Nm/AFesto |
| Voltage Constant (phase‑to‑phase) | 39.47 mVminFesto |
| Phase‑to‑Phase Winding Resistance | 7.66 ΩFesto |
| Phase‑to‑Phase Winding Inductance | 14.5 mHFesto |
| Number of Pole Pairs | 4Festo |
| Winding Connection | Internal starFesto |
| Rotor Position Sensor | Absolute single‑turn encoder, 18‑bit resolution |
| Encoder Interface | EnDat 22Festo |
| Overall Mass Moment of Inertia | 0.449 kg·cm²Festo |
| Product Weight | 2300 gFesto |
| Permissible Axial Shaft Load | 75 NFesto |
| Permissible Radial Shaft Load | 150 NFesto |
| Protection Class | IP54 |
| Insulation Class | FFesto |
| Ambient Temperature (Operation) | −10 °C … +40 °C |
| Storage Temperature | −20 °C … +60 °CFesto |
| Relative Humidity | 0–90 % (non‑condensing)Festo |
| Corrosion Resistance | CRC Class 2 (moderate corrosion stress) |
| Mounting | Flange mount (70 × 70 mm) |
| Motor Connector | Adjustable M23 angled connector |
| Encoder Connector | M12 connector |
| Conforms to | IEC 60034, EN 60034‑1, RoHS, CE, RCM, cULusFesto |
