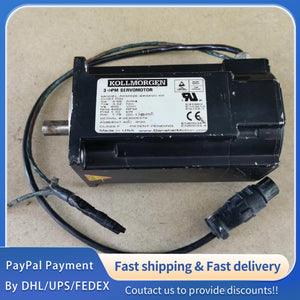

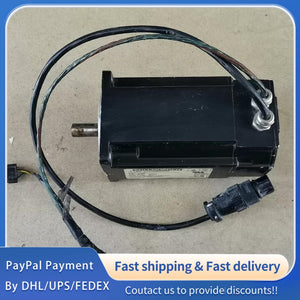

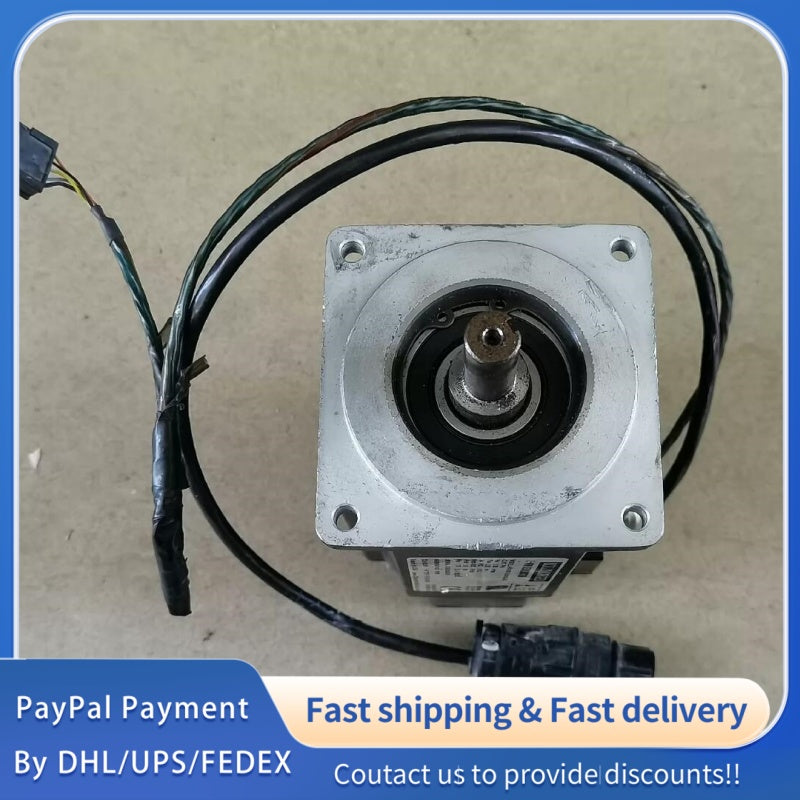

1 PCS used KOLLMORGEN AKM42E-EKMNC-00 Servo Motor #LYQ007
1 PCS used KOLLMORGEN AKM42E-EKMNC-00 Servo Motor #LYQ007
| Parameter | Symbol | Value | Unit | Tolerance |
|---|---|---|---|---|
| Motor Type | - | 3-Phase Permanent Magnet Brushless Servo | - | - |
| Max Rated Voltage | Vac | 480 | V | - |
| Max Bus Voltage | Vdc | 640 | V | - |
| Continuous Stall Torque (100°C ΔT) | Tcs | 3.42 | Nm | - |
| 30.3 | lb-in | - | ||
| Continuous Stall Current (100°C ΔT) | Ics | 2.74 | Arms | - |
| Peak Torque | Tp | 11.3 | Nm | - |
| 99.7 | lb-in | - | ||
| Peak Current | Ip | 11.0 | Arms | - |
| Max Mechanical Speed | Nmax | 6000 | rpm | - |
| Torque Constant | Kt | 1.26 | Nm/Arms | ±10% |
| 11.2 | lb-in/Arms | ±10% | ||
| Back EMF Constant | Ke | 80.9 | Vrms/krpm | ±10% |
| Motor Constant | Km | 0.369 | Nm/√W | - |
| 3.26 | lb-in/√W | - | ||
| Phase-to-Phase Resistance | Rm | 7.78 | ohm | ±10% |
| Phase-to-Phase Inductance | L | 26.8 | mH | - |
| Rotor Inertia (with Resolver) | Jm | 1.5 | kg·cm² | ±10% |
| 1.3E-03 | lb-in·s² | ±10% | ||
| Weight (without Brake) | W | 3.39 | kg | - |
| 7.5 | lb | - | ||
| Pole Pairs | - | 5 | - | - |
| Insulation Class | - | F (155°C) | - | - |
| Thermal Protection | - | PTC Thermistor (155°C ±5%) | - | - |
| Protection Rating | - | IP65 (Housing), IP40 (Shaft) | - | - |
| Operating Temp | - | -5 ~ +40°C | °C | - |
