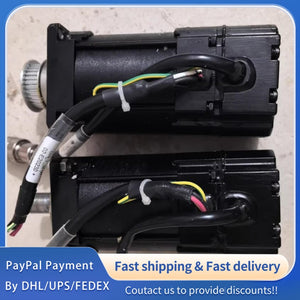

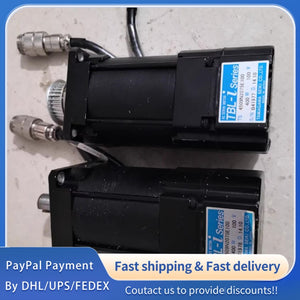

1 PCS used ASM Tamagawa Servo Motor TS4509N2075E100 #LYQ007
1 PCS used ASM Tamagawa Servo Motor TS4509N2075E100 #LYQ007
| Parameter Category | Parameter Name | TS4509N2075E100 Specification |
|---|---|---|
| Basic Information | Model | TS4509N2075E100 (ASM Tamagawa) |
| Series | TBL-i Series (Super Compact AC Servo Motor) | |
| Rated Output | 400 W | |
| Mounting Flange | 80 mm | |
| Core Performance | Rated Torque | 1.27 N·m |
| Rated Speed | 3,000 min⁻¹ (rpm) | |
| Max. Torque | 3.81 N·m (3× rated) | |
| Max. Speed | 5,000 min⁻¹ (rpm) | |
| Rotor Inertia | 1.70 × 10⁻⁴ kg·m² | |
| Electrical Parameters | Power Supply | AC 100 V ±10% |
| Rated Current | 4.5 A | |
| Peak Current | 13.5 A | |
| Phase Resistance | 1.2 Ω | |
| Phase Inductance | 3.5 mH | |
| Back EMF Constant | 0.32 V/(rad/s) | |
| Mechanical Parameters | Motor Length | 125 mm |
| Weight | 1.8 kg | |
| Shaft End | Keyway (Standard) | |
| Oil Seal | With | |
| Sensor & Feedback | Encoder Type | Absolute (Multi‑turn) 23‑bit |
| Resolution | 8,388,608 pulses/rev | |
| Wiring | Minimal‑wiring encoder (9 wires) | |
| Environmental & Protection | Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C | |
| Humidity | 0%–95% RH (non‑condensing) | |
| Protection Level | IP65 | |
| Vibration Resistance | 10–500 Hz, 3 g amplitude | |
| Shock Resistance | 100 m/s² (10 g), 11 ms | |
| Other Features | Brake | Without |
| Gear Ratio | Without | |
| Service Life | ≥ 50,000 operating hours |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
