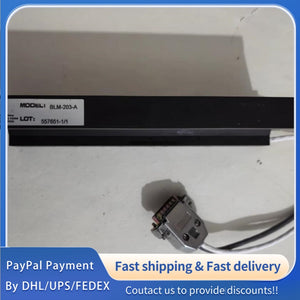

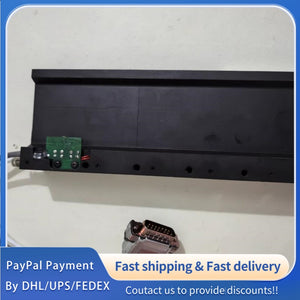

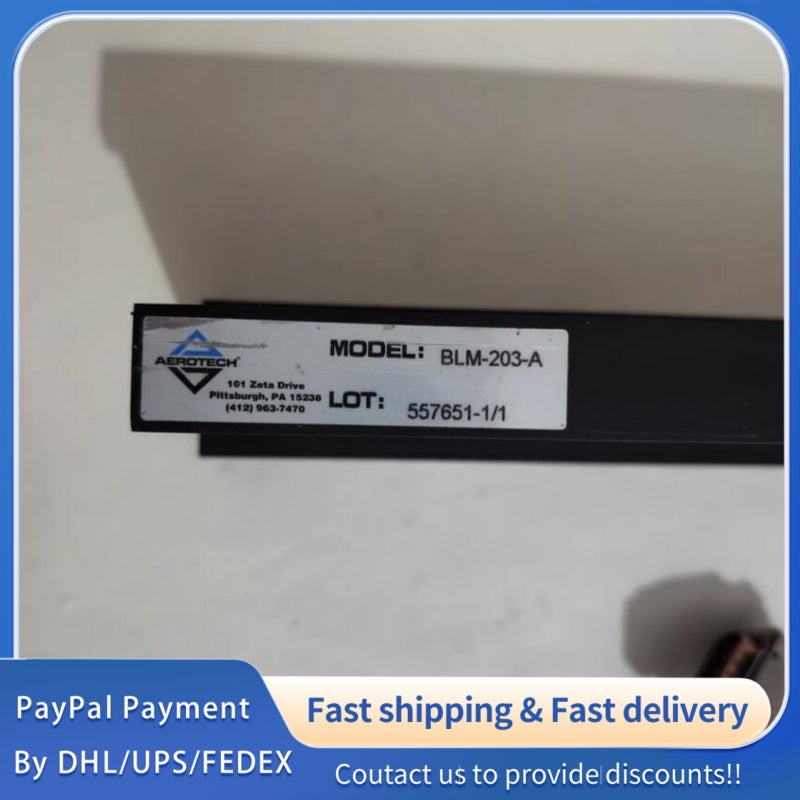

1 PCS used Aerotech BLM‑203‑A Linear Motor #LYQ007
1 PCS used Aerotech BLM‑203‑A Linear Motor #LYQ007
| Parameter Category | Parameter Name | BLM‑203‑A Specification |
|---|---|---|
| Performance | Continuous Force (1.4 bar / 20 psi) | 158.2 N (35.6 lb)Aerotech |
| Continuous Force (No Forced Cooling) | 124.0 N (27.9 lb)Aerotech | |
| Peak Force | 632.7 N (142.2 lb)Aerotech | |
| Force Constant (Sine Drive, N/Apk) | 18.18 N/ApkAerotech | |
| Force Constant (Sine Drive, N/Arms) | 25.71 N/ArmsAerotech | |
| Motor Constant | 7.02 N/√WAerotech | |
| Electrical | BEMF Constant (line‑line, max) | 20.90 V/(m/s) (0.53 V/(in/s))Aerotech |
| Continuous Current (1.4 bar, Apk/Arms) | 8.70 Apk / 6.15 ArmsAerotech | |
| Continuous Current (No Cooling, Apk/Arms) | 5.30 Apk / 3.75 ArmsAerotech | |
| Peak Current (Stall, Apk) | 34.80 ApkAerotech | |
| Resistance (25°C, line‑line) | 4.0 ΩAerotech | |
| Inductance (line‑line) | 3.2 mHAerotech | |
| Thermal Resistance (1.4 bar) | 0.30 °C/WAerotech | |
| Thermal Resistance (No Cooling) | 0.85 °C/WAerotech | |
| Maximum Bus Voltage | 340 VDCAerotech | |
| Mechanical | Coil Weight | 0.90 kg (1.98 lb)Aerotech |
| Coil Length | 204.7 mm (8.06 in)Aerotech | |
| Magnet Track Weight | 10.92 kg/m (7.32 lb/ft)Aerotech | |
| Magnetic Pole Pitch | 30.48 mm (1.20 in)Aerotech | |
| Air Flow (20 psi) | 1.5 × 10⁻³ m³/s (3.20 SCFM)Aerotech | |
| Heat Sink | 250 × 250 × 25 mmAerotech | |
| Environmental | Operating Temperature | 0°C to +40°C (Standard) |
| Storage Temperature | -20°C to +85°C | |
| Protection | IP65 (Optional) | |
| Standards | RoHS 3, CE, UL RecognizedAerotech |
