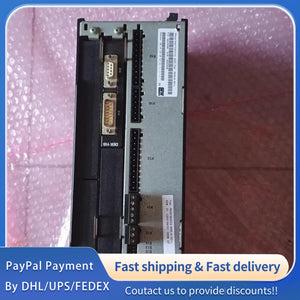

1 PCS used SEW Inverter MDX61B0030-5A3-4-00/L #LYQ007

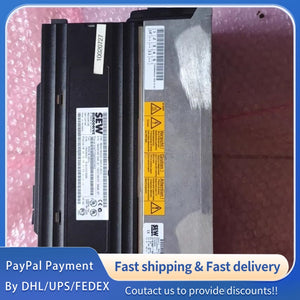

1 PCS used SEW Inverter MDX61B0030-5A3-4-00/L #LYQ007
1 PCS used SEW Inverter MDX61B0030-5A3-4-00/L #LYQ007
Original Factory Precision Parameters (Model: SEW Inverter MDX61B0030-5A3-4-00/L)
|
Parameter Category
|
Parameter Name
|
Original Factory Precision Specification
|
|
Basic Information
|
Product Model
|
MDX61B0030-5A3-4-00/L; SEW-EURODRIVE Genuine Original High-Performance Inverter, 100% unused and unrefurbished genuine parts, consistent with SEW-EURODRIVE's official model coding standards. It belongs to medium-power industrial-grade variable frequency drive equipment, designed for dedicated matching with various three-phase asynchronous motors and permanent magnet synchronous motors, with fixed configuration and excellent environmental adaptability, focusing on high-precision speed regulation, stable torque output and flexible control.
|
|
Manufacturer Standard
|
Manufactured by SEW-EURODRIVE (Genuine Original Factory); Compliant with ISO 9001 Quality Certification, CE, RoHS, UL, CSA, C-Tick, IEC 61800-3, EN 55011 Industrial Standards; Conforms to SEW-EURODRIVE Internal Technical Standard and Inverter Manufacturing Norms, as well as Low Voltage Directive (73/23/EEC) and EMC Directive (89/336/EEC), meeting the precision calibration requirements of international industrial drive equipment standards and related industrial control specifications.
|
|
|
Core Electrical & Drive Parameters
|
Inverter Type
|
High-Performance Voltage Source Inverter; Three-Phase Input / Three-Phase Output; Suitable for Variable Torque and Constant Torque Loads; Built-in Advanced Vector Control Algorithm (VFC, CFC, SERVO Modes); Support Speed Control, Torque Control and Position Control, adapting to different industrial drive scenarios.
|
|
Input Power Parameters
|
Input Voltage: 380~500V AC (Three-Phase); Voltage Tolerance: ±10%; Input Frequency: 50/60Hz (±5%); Input Current: ≤52A; Power Factor: ≥0.95 (At Rated Load); Built-in Input EMI Filter, Effectively Reducing Electromagnetic Interference to the Power Grid.
|
|
|
Output Power Parameters
|
Rated Output Power: 30kW; Maximum Output Power: 33kW (110% of Rated, Continuous Operation for 60s); Output Voltage: 0~480V AC (Three-Phase, Adjustable); Output Frequency: 0~600Hz; Frequency Resolution: 0.01Hz; Frequency Accuracy: ±0.01% of Maximum Frequency.
|
|
|
Rated Output Current
|
Rated Output Current: 57A (RMS); Maximum Output Current: 85.5A (150% of Rated, Continuous Operation for 60s); Current Tolerance: ±1%; Stable Current Output Under Rated Load, Effectively Protecting Motors and Inverters from Overcurrent Damage.
|
|
|
Speed Control Parameters
|
Speed Range: 1:100 (VFC Mode), 1:1000 (Vector Control Mode); Speed Accuracy: ±0.01% (Vector Control Mode), ±0.1% (VFC Mode); Speed Response Time: ≤10ms; Support Slip Compensation and Torque Compensation, Ensuring Stable Speed Operation Under Load Fluctuation.
|
|
|
PWM Frequency
|
Adjustable PWM Frequency: 4/8/12/16 kHz (VFC Mode); Fixed PWM Frequency: 8 kHz (CFC/SERVO Mode); Low Noise Operation, Reducing Motor Vibration and Noise; PWM Waveform Distortion Rate: ≤5%.
|
|
|
Torque Control Parameters
|
Rated Torque Output: 100% of Motor Rated Torque; Maximum Torque Output: 150% of Motor Rated Torque (Continuous Operation for 60s); Torque Accuracy: ±2% (Vector Control Mode); Torque Response Time: ≤5ms, Suitable for Dynamic Load Scenarios.
|
|
|
Starting & Stopping Parameters
|
Starting Mode: Soft Start, Linear Start, S-Curve Start (Adjustable); Stopping Mode: Soft Stop, Free Stop, DC Brake Stop; Acceleration/Deceleration Time: 0.1~3600s (Adjustable); Support DC Brake (Brake Current: 0~100% of Rated Output Current, Adjustable).
|
|
|
Protection & Alarm Parameters
|
Comprehensive Protection Functions
|
Electrical Protection: Overcurrent (F-01), Ground Fault (F-03), DC Bus Overvoltage (F-07), Input Phase Loss (F-06), Output Short Circuit; Thermal Protection: Inverter Overheating (F-11), Motor Overheating (Support TF/TH/KTY Sensors); Operational Protection: Speed Monitoring Fault (F-08), Ramp Timeout (F-34), Encoder Fault (F-14), Limit Switch Protection (F-27).
|
|
Alarm Functions
|
Alarm Output: 1 Channel Relay Output (NO, 24V DC, 1A); Alarm Log: Store Up to 100 Sets of Alarm Records (Including Time, Alarm Code, Alarm Description); Alarm Response: Severe Fault (Immediate Shutdown), General Fault (Emergency Stop), Warning Fault (Alarm Prompt); Support Alarm Acknowledgment and Reset Functions.
|
|
|
Anti-Interference & Insulation
|
Anti-Electrostatic Discharge (ESD): ±25kV (Air), ±15kV (Contact); EMC Compliance: EN 55011 (Class B) Emission, EN 55022 (Class B) Immunity; Insulation Resistance: ≥1000MΩ (500V DC); Insulation Strength: 2.5kVrms (1 Minute), No Breakdown or Flashover.
|
|
|
Self-Check Function
|
Built-In Self-Check Module; Self-Check Items: Power Supply, IGBT Module, Signal Sampling Circuit, Communication Circuit, Protection Circuit; Self-Check Result Output: Digital Signal (High Level: Normal, Low Level: Fault); Fault Code Display (Consistent with SEW Official Fault Manual).
|
|
|
Control & Communication Parameters
|
Control Modes
|
Built-In Multiple Control Modes: VFC (Voltage-Frequency Control), VFC-n-Control (Speed Closed-Loop Control), CFC (Torque Control), SERVO (Position Control), VFC-Hoist Mode (Hoisting Equipment); Support Manual/Auto Switching, Multi-Speed Control (Up to 16 Speeds).
|
|
Communication Interface
|
Standard Interface: RS485 (Modbus RTU Protocol); Data Transmission Rate: 9600~57600 bps (Adjustable); Communication Distance: ≤200m; Optional Interfaces: CANopen (via DFC11B Module), Profibus, Ethernet (RJ45, TCP/IP); Support Remote Parameter Setting, Data Reading and Fault Query.
|
|
|
Input/Output Signals
|
Analog Input: 2 Channels (-10~+10V DC, 4~20mA DC), 12-Bit Resolution; Digital Input: 8 Channels (Optically Isolated, 24V DC ±10%); Digital Output: 4 Channels (1 Channel Relay, 3 Channels Transistor), Short-Circuit Protected.
|
|
|
Parameter Setting
|
Support Parameter Configuration via DBG60B Operation Panel, MOVITOOLS® MotionStudio Software (≥V4.20) or External Terminal; 2-Level Password Protection; Support Parameter Backup and Restore; Configurable Parameters: PWM Frequency, Acceleration/Deceleration Time, Alarm Threshold, Control Mode.
|
|
|
Environmental & Physical Parameters
|
Operating Environment
|
Operating Temperature: 0℃~50℃; Storage Temperature: -25℃~75℃; Operating Humidity: 20%~95% RH (Non-Condensing); Storage Humidity: <80% RH (Non-Condensing); Cooling Method: Forced Air Cooling; Protection Grade: IP20 (Cabinet Mounting), Dust-Proof and Anti-Splash.
|
|
Physical Dimensions
|
Overall Dimensions: 200mm × 465mm × 308mm (Length × Width × Height, ±0.5mm); Mounting Method: Cabinet Mounting (Flange); Weight: ≤15kg (Without Accessories); Housing Material: High-Temperature Resistant Aluminum Alloy + Flame-Retardant Plastic; Compact Structure, Easy to Install and Maintain.
|
|
|
Durability & Service Life
|
Vibration Resistance: 3g (10Hz~500Hz); Shock Resistance: 20g (11ms); Service Life: ≥50,000 Hours (Under Rated Working Conditions); Component Service Life: IGBT Module ≥100,000 Hours; Regular Maintenance Interval: Every 12 Months (Cleaning, Terminal Inspection).
|
