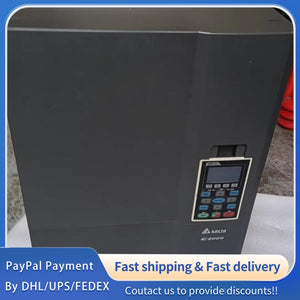

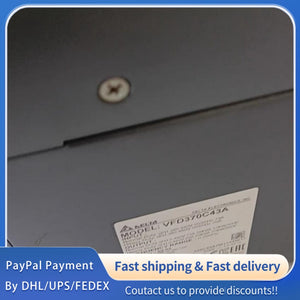

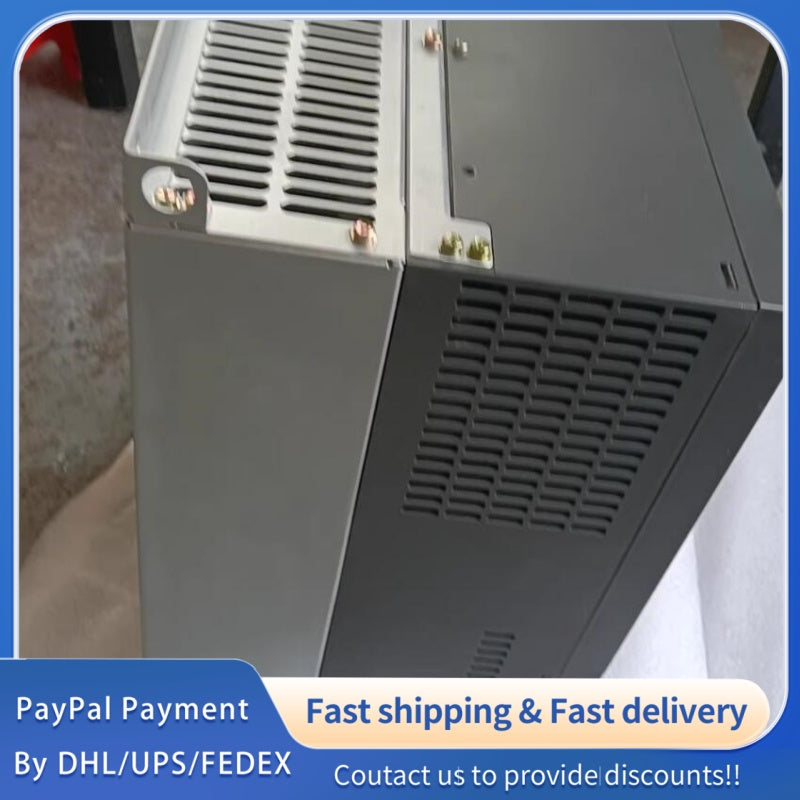

1 PCS used Delta C2000 Inverter VFD370C43A #LYQ007
1 PCS used Delta C2000 Inverter VFD370C43A #LYQ007
1 PCS used Delta C2000 Inverter VFD370C43A #LYQ007
Original Factory Precision Parameters (Model: Delta C2000 Inverter VFD370C43A)
|
Parameter Category
|
Parameter Name
|
VFD370C43A Specification
|
|
Basic Information
|
Product Model
|
VFD370C43A; Delta Genuine Original C2000 Series Inverter, 100% unused and unrefurbished genuine parts; 3-phase 400V class, 37kW rated power
|
|
Manufacturer Standard
|
Manufactured by Delta; Compliant with CE, UL, CUL, EN 61010-1, IEC 61800-5-1 Standards; Conforms to Delta Internal Technical and Quality Norms
|
|
|
Product Application
|
Plastic Molding Equipment, Die Casting Machinery, Fans & Pumps, Conveyor Systems, Packaging Machinery, Industrial AC Motor Speed Control, Industrial Automation Production Lines, etc.
|
|
|
Core Frequency Conversion & Speed Regulation Parameters
|
Control Type
|
V/F Control, SVC (Sensorless Vector Control), VF+PG, FOC+PG, TQC+PG; Multi-control mode switchable to adapt to different application scenarios
|
|
Rated Power
|
37 kW (50 HP); Consistent with Delta original factory calibration, ±1% precision
|
|
|
Input Voltage
|
3-phase AC 380~480 V; Voltage Tolerance: ±10%; Frequency: 47~63 Hz (Automatic Adaptation)
|
|
|
Output Voltage
|
3-phase AC 0~480 V; Proportional to input voltage and frequency, stepless adjustable
|
|
|
Output Frequency Range
|
General Load: 0.01~600.00 Hz; Heavy Load: 0.00~300.00 Hz; Stepless frequency regulation
|
|
|
Frequency Precision
|
Digital Command: ±0.01% (-10℃~+40℃); Analog Command: ±0.1% (25±10℃); High precision frequency control
|
|
|
Frequency Resolution
|
Digital Command: 0.01 Hz; Analog Command: 0.03% of maximum output frequency (±11 bit)
|
|
|
Starting Torque
|
0.5 Hz: ≥150% rated torque; FOC+PG mode: 0 Hz: ≥150% rated torque, strong starting performance
|
|
|
Core Electrical Parameters
|
Rated Input Current
|
72 A; Rated working current, ±1% precision, ensure stable power input
|
|
Rated Output Current
|
75 A; Continuous output current, compatible with 37 kW AC motor
|
|
|
Overload Tolerance
|
General Load: 120% rated output current for 60 seconds; Heavy Load: 150% rated output current for 60 seconds; Automatic protection after overload
|
|
|
Carrier Frequency
|
Heavy Load: 2~6 kHz; General Load: 2~15 kHz; Adjustable, reduce motor noise
|
|
|
Frequency Setting Signal
|
Analog Input: +10V~-10V, 0~+10V, 4~20mA, 0~20mA; Digital Input: Multi-channel optional, flexible setting
|
|
|
Acceleration/Deceleration Time
|
Acceleration Time: 0.00~600.00 seconds; Deceleration Time: 0.0~6000.0 seconds; Stepless adjustable, S-curve acceleration/deceleration optional
|
|
|
Insulation Resistance
|
≥100 MΩ (500 V DC); Good insulation performance, safe and reliable
|
|
|
Dielectric Strength
|
AC 1500 V, 50 Hz, 1 minute; No breakdown, no arcing; Ensure electrical safety
|
|
|
Protection & Safety Parameters
|
Over-temperature Protection
|
Inverter internal temperature ≥85℃: Alarm; ≥90℃: Cut off output and power supply; Prevent inverter damage caused by overheating
|
|
Over-voltage Protection
|
Input/Output Voltage ≥528 V: Alarm and cut off power supply; Avoid component damage caused by voltage surge
|
|
|
Under-voltage Protection
|
Input Voltage ≤342 V: Alarm and cut off power supply; Avoid abnormal operation caused by low voltage
|
|
|
Over-current Protection
|
Output Current ≥112.5 A: Alarm and cut off output; Protect inverter circuit and motor from over-current damage
|
|
|
Short-circuit Protection
|
Output short-circuit: Instantaneous cut off power supply and alarm; Prevent fire and inverter burnout caused by short-circuit
|
|
|
ESD Protection
|
±8 kV (Contact), ±15 kV (Air); Effectively protect the inverter from static damage, ensure stable operation in electronic manufacturing environments
|
|
|
Over-torque Protection
|
Maximum torque current: 200% rated torque current; Over-torque detection and alarm, protect motor and equipment
|
|
|
Other Protections
|
Motor over-temperature protection, ground fault protection, input/output phase loss protection, memory loss protection; Comprehensive protection, safe and reliable
|
|
|
Environmental & Structural Parameters
|
Operating Temperature
|
-10℃ ~ 55℃; Derating 1% per °C when exceeding 45℃; Adapt to various industrial working environments, 50℃ high temperature resistant operation
|
|
Storage Temperature
|
-20℃ ~ 65℃; Stable storage performance, no performance degradation after long-term storage in warehouse or transportation
|
|
|
Relative Humidity
|
5% ~ 95% (Non-Condensing); Resisting humid industrial environments, no short circuit or malfunction risk
|
|
|
Structure Material
|
Industrial-Grade FR-4 Circuit Board + Metal Shell; Anti-corrosion, anti-oxidation, high mechanical strength; Protective coating treatment, dust-proof design (IP20), suitable for cabinet installation
|
|
|
Cooling Mode
|
Forced air cooling (detachable fan); Efficient heat dissipation, ensure long-term stable operation; Fan fault alarm function
|
|
|
Interface & Compatibility Parameters
|
Communication Interface
|
Standard RS485 (RJ45) Interface; Support Modbus Communication Protocol; Baud Rate: Up to 115.2 kbps; Realize remote monitoring and control
|
|
Control Interface
|
Digital Input/Output Interface; Programmable, convenient for external control and expansion; Support 3-wire control, 16-speed control (including main speed)
|
|
|
Configuration Interface
|
Digital Operator Interface (hot-swappable); Convenient for parameter setting, status monitoring and fault query; Parameter copy function supported
|
|
|
Equipment Compatibility
|
Suitable for 3-phase AC asynchronous motors and synchronous motors; Compatible with various Delta control systems; Matching 37 kW motors with 3-phase 380~480 V input, strong compatibility
|
|
|
Functional Parameters
|
V/F Curve
|
4-point arbitrary V/F curve & 2nd power curve; Adjustable, adapt to different load characteristics
|
|
Speed Response Ability
|
General mode: 5 Hz; Vector control mode: Up to 40 Hz; Fast speed response, ensure stable operation
|
|
|
Torque Precision
|
±5% rated torque; High torque control precision, suitable for torque control scenarios
|
|
|
Special Functions
|
Zero servo control, instantaneous power failure restart, speed search, PID control (with sleep function), energy-saving control, abnormal restart, automatic tuning (rotational, stationary), dwell, slip compensation, torque compensation, JOG frequency setting
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
