Parameter Item    Specification

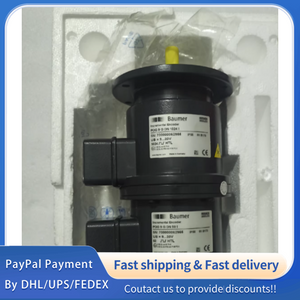

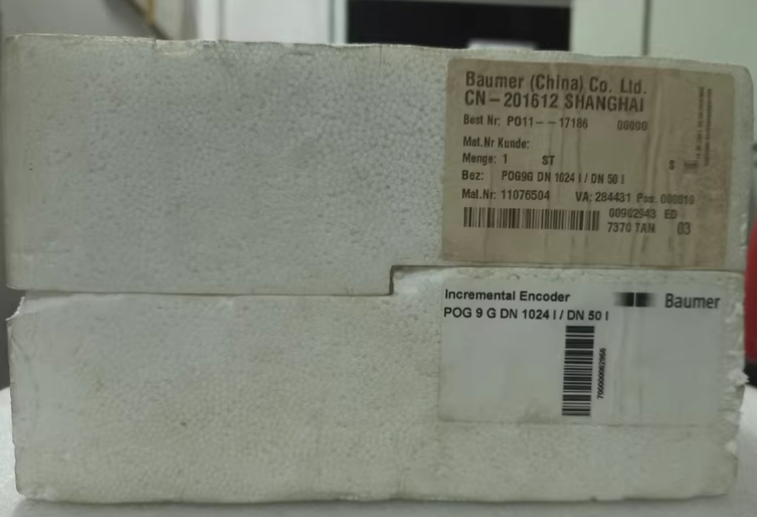

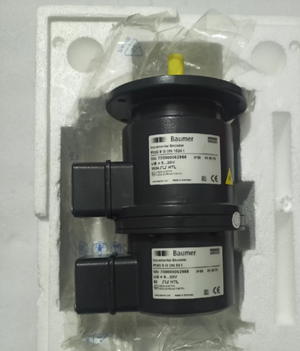

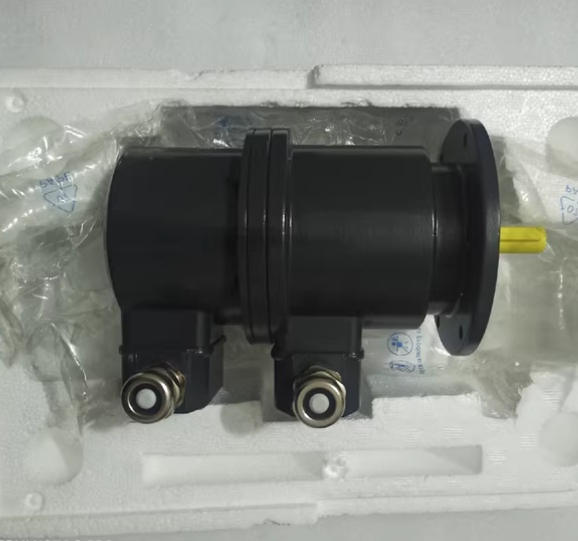

Brand/Type    Baumer POG 9 G, Heavy-duty Incremental Photoelectric Encoder
Supply Voltage    10-30 V DC (reverse polarity protected)
Supply Current    ≤ 100 mA (no load)
Output Type    PNP Open Collector (DN)
Resolution (Dual Channel)    1024 ppr / 50 ppr (incremental, I)
Output Load Current    ≤ 100 mA per channel
Max Switching Frequency    0 ~ 10 kHz
Signal Level    High ≥70% Vs; Low ≤0.8 V DC
A/B Phase Shift    90° ± 10°
Shaft Type    9 mm solid smooth shaft
Max Rotational Speed    6000 rpm (continuous)
Shaft Load    Radial ≤20 N; Axial ≤10 N
Starting Torque    ≤0.5 Ncm (20°C)
Connection    Standard 1.5m cable outlet / Optional connector
Net Weight    Approx. 150 g
Operating Temperature    -40°C ~ +85°C
Storage Temperature    -50°C ~ +90°C
Protection Class    IP65 (housing); IP67 (shaft seal)
Shock Resistance    50 g (11 ms, IEC 60068-2-27)
Vibration Resistance    10 g (10-2000 Hz, IEC 60068-2-6)
Humidity    95% RH (non-condensing, 40°C)
Scanning Principle    Non-contact photoelectric scanning
Signal Symmetry    ≥40% (at max frequency)
Housing    Heavy-duty metal compact design
Certifications    CE, RoHS, REACH, IEC 60068-2

1  .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
 Including : frequency converter, servo driver, servo motor,   data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial   computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
 3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please    contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
