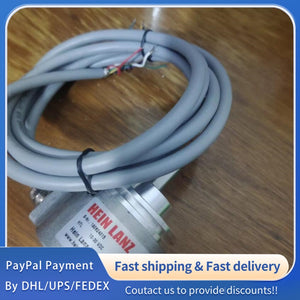

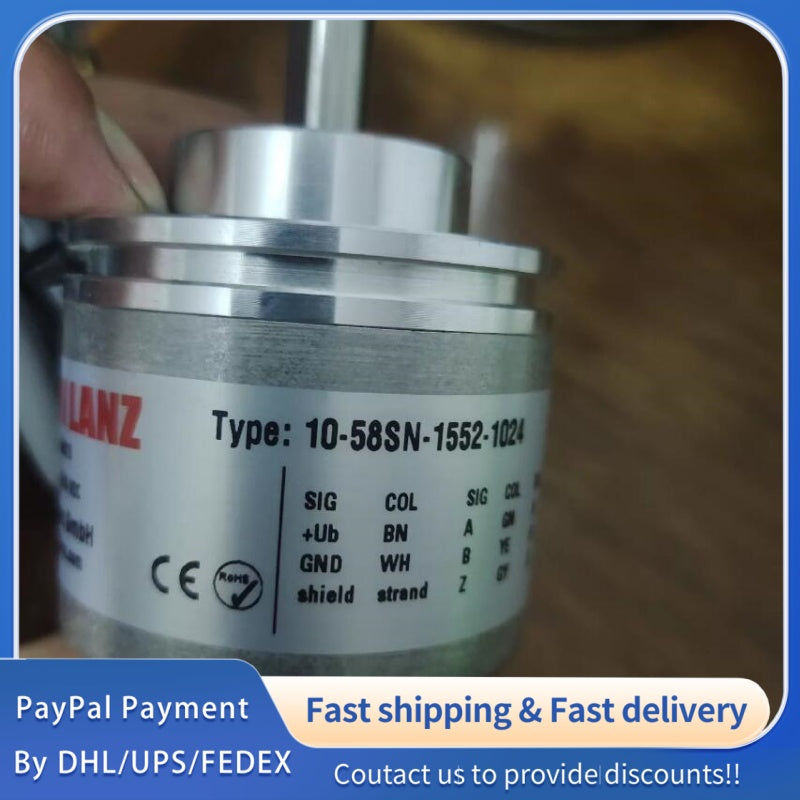

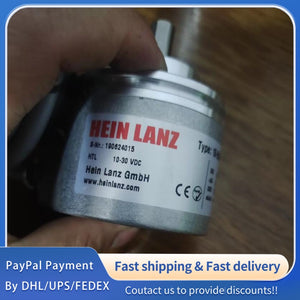

1 PCS used HEIN LANZ Encoder 10-58SN-1552-1024 #LYQ007
1 PCS used HEIN LANZ Encoder 10-58SN-1552-1024 #LYQ007
| Parameter | Value |
|---|---|
| Model | 10-58SN-1552-1024 |
| Type | Incremental Rotary Encoder |
| Resolution | 1024 PPR (Pulses Per Revolution) |
| Flange | 1 = Clamping flange, Ø58 mm, IP65heinlanz.com |
| Shaft | 5 = Ø10 × 20 mmheinlanz.com |
| Output / Power | 5 = Push‑pull (with inverted signal) / 10–30 VDCheinlanz.com |
| Connection | 2 = Radial cable, 2 mheinlanz.com |
| Max. Speed | 12,000 rpm (solid shaft)heinlanz.com |
| Starting Torque | ≤ 0.5 Ncm (at 20 °C)heinlanz.com |
| Moment of Inertia | 18 gcm²heinlanz.com |
| Shaft Load | Radial: 125 N; Axial: 70 Nheinlanz.com |
| Weight | Approx. 0.25 kgheinlanz.com |
| Protection | IP65 (EN 60529)heinlanz.com |
| Operating Temp. | −40 °C to +80 °Cheinlanz.com |
| Materials | Shaft: Stainless Steel; Flange/Housing: Aluminiumheinlanz.com |
| Shock Resistance | 1000 m/s² (6 ms, EN 60068‑2‑29)heinlanz.com |
| Vibration Resistance | 50 m/s² (10–2000 Hz, EN 60068‑2‑6)heinlanz.com |
| Power Supply | 10–30 VDCheinlanz.com |
| No‑Load Current | Max. 70 mAheinlanz.com |
| Max. Channel Load | 40 mAheinlanz.com |
| Max. Pulse Freq. | 200 kHzheinlanz.com |
| Signal Level (High) | Min. U−2.5 Vheinlanz.com |
| Signal Level (Low) | Max. 2.5 Vheinlanz.com |
| Rising/Falling Edge | Max. 1 μsheinlanz.com |
| Short‑Circuit Protection | Yesheinlanz.com |
| Reverse Polarity Protection | Yesheinlanz.com |
| Certifications | CE, ULheinlanz.com |
| Output Signals | A, /A, B, /B, Z, /Z (Push‑pull with inverted)heinlanz.com |
| Connection Type | Radial cable, 2 mheinlanz.com |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
