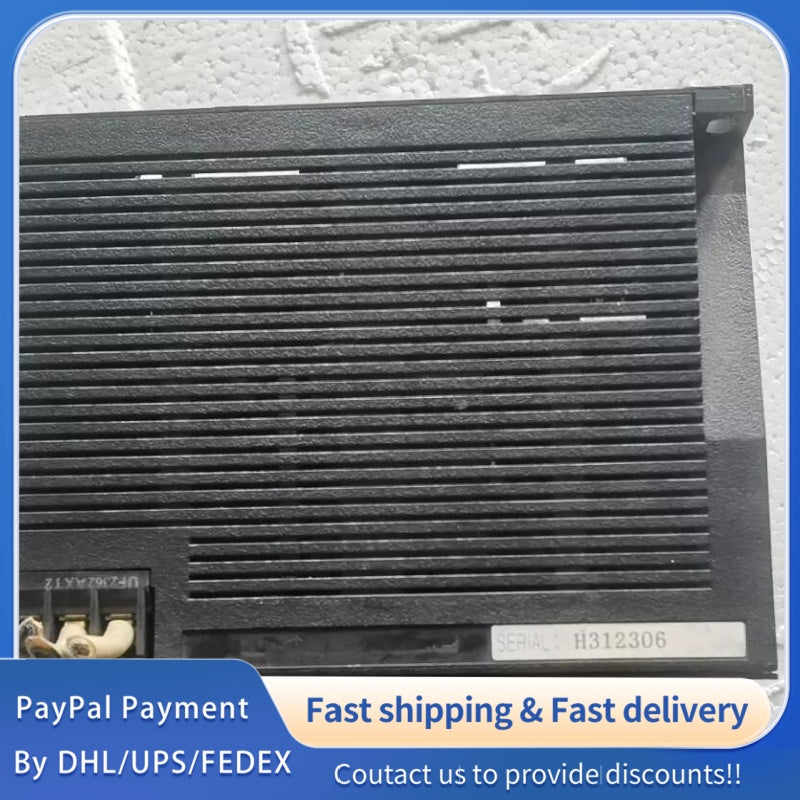

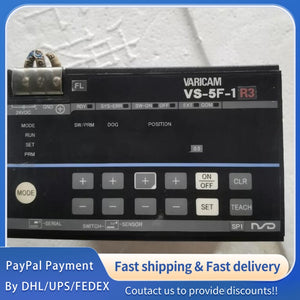

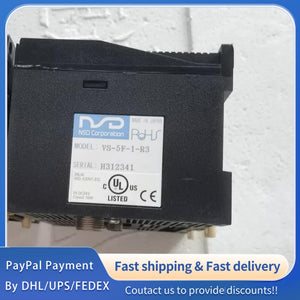

1 PCS used NSD VARICAM VS-5F-1.R3 Angle Encoder Controller #LYQ007
1 PCS used NSD VARICAM VS-5F-1.R3 Angle Encoder Controller #LYQ007
| Item | Specification |
|---|---|
| Model | VS-5F-1.R3 |
| Converter Type | Electronic Rotary Cam Switch Controller (VARICAM) |
| Power Supply | 24VDC |
| Permissible Voltage Range | 21.6 to 30VDC |
| Power Consumption | 10W or less |
| Insulation Resistance | 20MΩ min. (500VDC between power terminals and ground) |
| Withstand Voltage | 500VAC, 60Hz for 1 min. (power terminals to ground) |
| Vibration Resistance | 20m/s², 10–500Hz, 10 cycles × 5 min. (3 axes, JIS C 0040) |
| Operating Temp. | 0 to +55°C (no freezing) |
| Storage Temp. | -10 to +70°C |
| Operating Humidity | 20–90% RH (no condensation) |
| Grounding | ≤100Ω |
| Mounting | Panel/DIN rail/2-screw; fixture VS-K-F optional |
| Dimensions (W×H×D) | 130 × 81 × 99 mm |
| Weight | Approx. 0.7 kg |
| Applicable Sensors | VRE-P028, VRE-P062 |
| Min. Setting Unit | 0.5° |
| Number of Programs | 1 |
| Switch Outputs | 24 points |
| Multi-Dogs per Output | 10 (0–9) |
| Sampling Time | 0.176 ms (900 r/min at 1° ON/OFF range) |
| Setting Method | Panel numeric input / Teaching |
| Memory | Non-volatile FRAM |
| Error Detection | Sensor power, sensor, memory, no setting, setting impossible, system |
| Auxiliary Functions | Protected switch, setting change during operation, timing pulse, motion detection, switch enable, hysteresis, arbitrary pulse, error cancel, password |
| Communication | RS-232C; supports NSD, MELSEC-A, MC, OMRON, NDP, VARIMONI |
| Max. Sensor Cable | 100 m (Standard/Robotic type) |
| Input Signals | Error cancel (1pt), Switch output enable (1pt) |
| Output Signals | Switch/arbitrary pulse (24pt), Timing/motion detection (1pt), System ready (1pt) |
| Input Circuit | DC, photo-coupler isolated; negative logic; 24VDC, 10mA |
| Output Circuit | Transistor open-collector, photo-coupler isolated; negative logic; 24VDC (30VDC max), 100mA |
| Certifications | UL, CE (EMC) |
