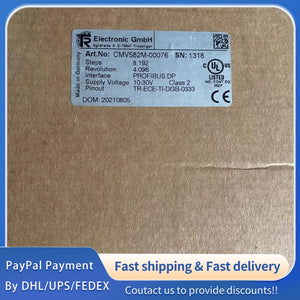

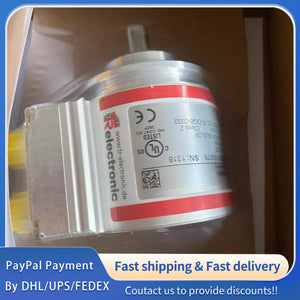

1 PCS new TR Encoder CMV582M-00076 #LYQ007
1 PCS new TR Encoder CMV582M-00076 #LYQ007
| Parameter | Value |
|---|---|
| Order Code | CMV582M‑00076 |
| Resolution (Single‑turn) | 8192 steps/rev (13 bit) |
| Multi‑turn Range | 4096 revolutions (12 bit) |
| Total Resolution | 25 bit (13+12) |
| Output Code | Binary / Gray (programmable) |
| Supply Voltage | 10–30 VDC |
| Nominal Current | 40 mA (unloaded) |
| Interface | SSI (RS‑422, 2‑wire) |
| SSI Clock Frequency | 80–1000 kHz |
| SSI Mono Time | 9–41 µs (typical) |
| Accuracy | ±0.5° |
| Max Speed | 12,000 rpm |
| Shaft Load (Axial/Radial) | ≤50 N / ≤100 N |
| Bearing Life | ≥3.9×10¹⁰ revolutions |
| Shaft Type | Solid shaft, 10 mm diameter, 19.5 mm length (D‑cut) |
| Flange | ZB36 (36 mm pilot) |
| Connector | Radial: 1×4‑pin M12 (A‑coded, male) + 2×4‑pin M12 (D‑coded, female) |
| Protection Class | IP65 |
| Operating Temp | ‑20°C to +75°C (standard); ‑40°C to +85°C (optional) |
| Storage Temp | ‑30°C to +85°C (dry) |
| Vibration Resistance | ≤100 m/s² (50–2000 Hz, sine) |
| Shock Resistance | ≤1000 m/s² (half‑sine, 11 ms) |
| Relative Humidity | 98% (non‑condensing) |
| Mass | 0.25–0.35 kg (typical) |
| Programming | TR‑Soft: TRWinProg |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
