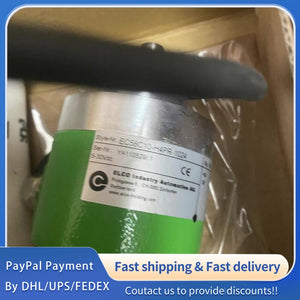

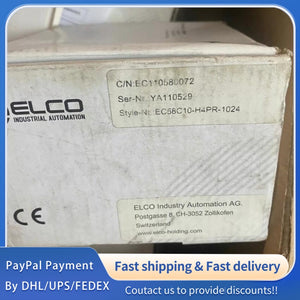

1 PCS new ELCO EC50C10-H4PR-1024 Incremental Encoder #LYQ007
1 PCS new ELCO EC50C10-H4PR-1024 Incremental Encoder #LYQ007
| Parameter | Specification |
|---|---|
| Model | EC50C10-H4PR-1024 |
| Type | Incremental Rotary Encoder |
| Resolution | 1024 PPR |
| Output Signal | A, B, Z, A/, B/, Z/ (Push‑pull HTL with inverted signals) |
| Supply Voltage | 5–30 V DC |
| Max. Load Current | ±80 mA |
| Max. Output Frequency | 300 kHz |
| Shaft Type | Solid Shaft |
| Shaft Diameter | 10 mm (10g6) |
| Flange Type | Clamping Flange |
| Housing Diameter | 50 mm |
| Housing Material | Aluminum Alloy |
| Protection Class | IP64 |
| Max. Rotational Speed | 6000 rpm |
| Starting Torque | < 0.01 N·m |
| Moment of Inertia | 1.8 × 10⁻⁶ kg·m² |
| Axial Load | 60 N |
| Radial Load | 120 N |
| Shock Resistance | 50 g, 11 ms |
| Vibration Resistance | 10 g, 10–2000 Hz |
| Operating Temp. | -20 °C to +110 °C |
| Relative Humidity | 90% (non‑condensing) |
| Cable Length | 1.5 m (direct cable exit) |
| Weight | Approx. 330 g |
