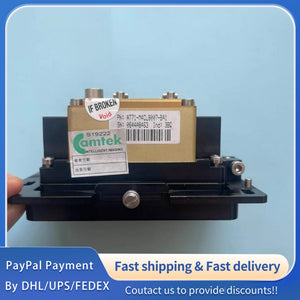

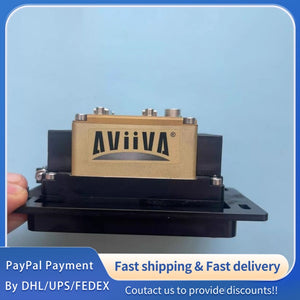

1pc for USED AT71-M4CL8007-BA1 AOI Linescan Camera #LYQ007
1pc for USED AT71-M4CL8007-BA1 AOI Linescan Camera #LYQ007
| Parameter | Value |
|---|---|
| Model | AT71-M4CL8007-BA1 |
| Sensor Type | Linear CCD (4-tap) |
| Resolution | 8192 pixels (8K) |
| Pixel Size | 7 μm (square) |
| Max Line Rate | 19.5 kHz |
| Peak Data Rate | 4 × 40 MHz = 160 Mpixels/s |
| Output Format | 8‑bit or 10‑bit; 2 or 4 taps |
| Gain Range | 0 dB to 24 dB (0.035 dB steps) |
| Spectral Range | 250 nm to 1100 nm |
| Linearity (10–90%) | ≤ 1% FSR |
| Dynamic Range | 56 dB (typical, 8‑bit) |
| FPN (uncorrected) | ≤ 10 LSB (peak‑to‑peak) |
| NEE | 125 pJ/cm² |

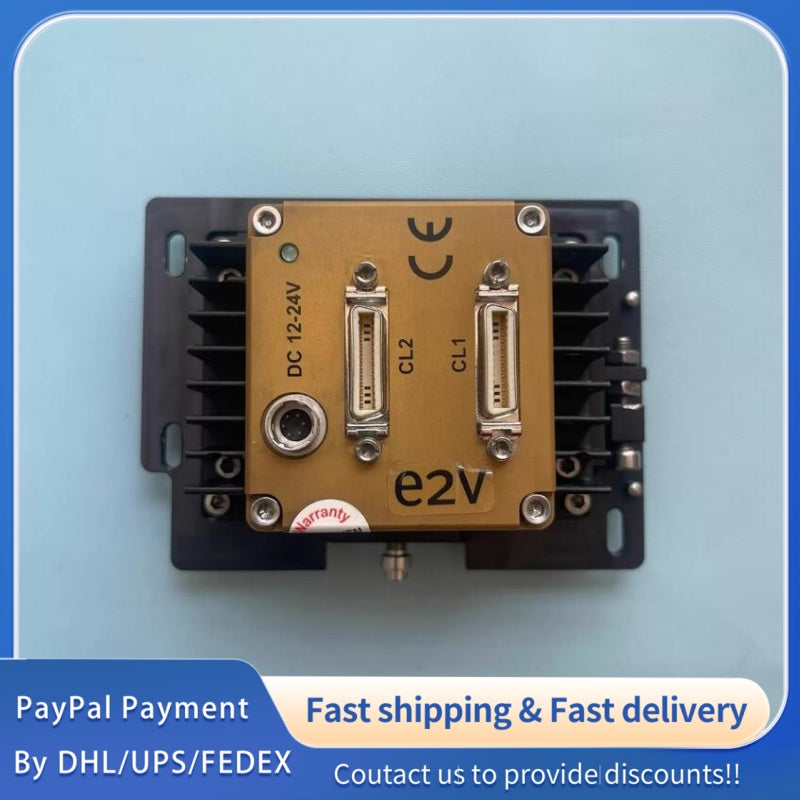

| Interface | Camera Link (Medium Configuration, dual base) |
| Power Supply | Single DC 12–24 V |
| Max Inrush Current | 0.65 A |
| Operating Temp | 0 °C to 55 °C (non‑condensing) |
| Storage Temp | −40 °C to 85 °C |
| Dimensions (W×H×L) | 82 × 60 × 54 mm |
| Weight | 500 g (typical, no lens) |
| Lens Mount | M72 × 0.75 |
| Compliance | CE, FCC Part 15 |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
