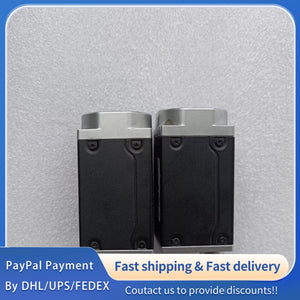

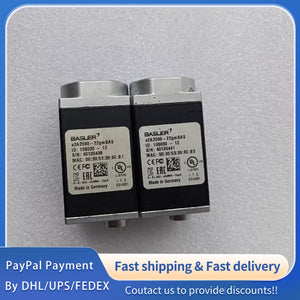

1 PCS USED Basler a2A2590-22gmBAS Industrial Camera#LYQ007
1 PCS USED Basler a2A2590-22gmBAS Industrial Camera#LYQ007
| Parameter | Specification |
|---|---|
| Model | a2A2590-22gmBASBasler |
| Camera Type | Area Scan Camera, MonochromeBasler |

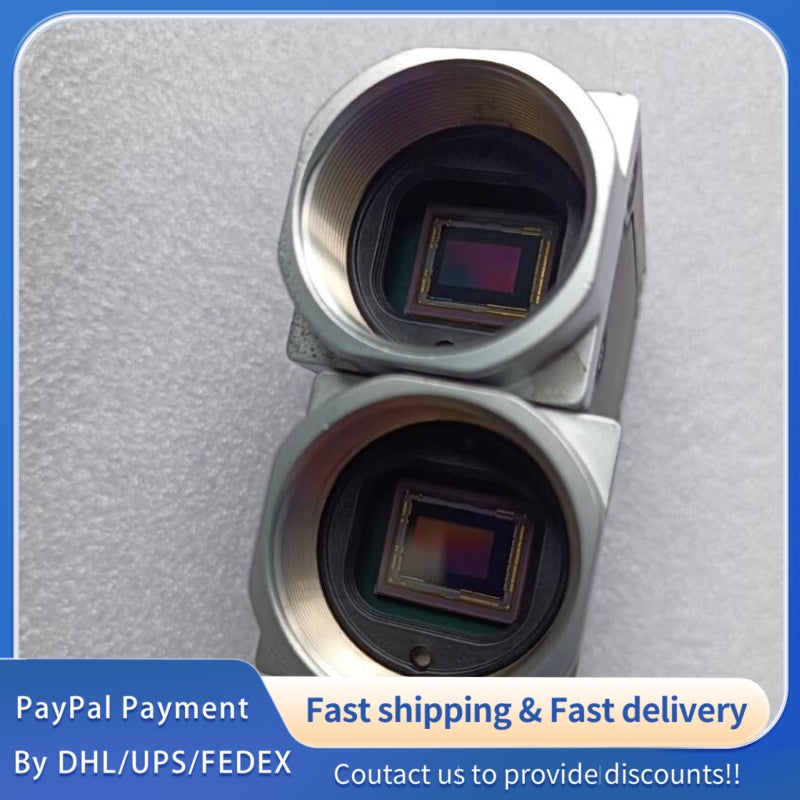

| Sensor | Sony IMX334ROI, CMOS, Rolling Shutter |
| Sensor Format | 1/2.8" |
| Sensor Size (H × V) | 5.2 mm × 3.9 mmBasler |
| Resolution (H × V) | 2592 px × 1944 pxBasler |
| Resolution | 5 MPBasler |
| Pixel Size (H × V) | 2.0 μm × 2.0 μm |
| Frame Rate | 22 fps |
| Pixel Bit Depth | 8 bits, 10 bits, 12 bitsBasler |
| Dynamic Range (typical) | 69.2 dBBasler |
| Dark Noise (typical) | 1.96 e⁻Basler |
| Saturation Capacity (typical) | 7.2 ke⁻Basler |
| Quantum Efficiency (typical) | 72.9 %Basler |
| Interface | GigE Vision 2.0, GenICam |
| Data Interface | Fast Ethernet (100 Mbit/s), Gigabit Ethernet (1000 Mbit/s)Basler |
| Exposure Control | Hardware Trigger, Software Trigger, Free Run; Programmable via API |
| I/O Connector | M8 6‑Pin ReceptacleBasler |
| Digital Inputs | 1 Opto‑coupled Input |
| General Purpose I/O | 2 GPIO Lines |
| Power Supply | PoE (IEEE 802.3af) or 12–24 VDCBasler |
| Power Consumption (typical) | ≈3.5 W (PoE); ≈2.5 W (12–24 VDC via I/O) |
| Lens Mount | C‑mount |
| Dimensions (L × W × H) | 55.5 × 29 × 29 mm (without lens/connectors)Basler |
| Weight | <100 g |
| Operating Temperature | −10 °C to +60 °C |
| Storage Temperature | −20 °C to +80 °C |
| Ingress Protection | IP30 |
| Conformity | CE (RoHS), EAC, UL Listed, FCC, KC |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
