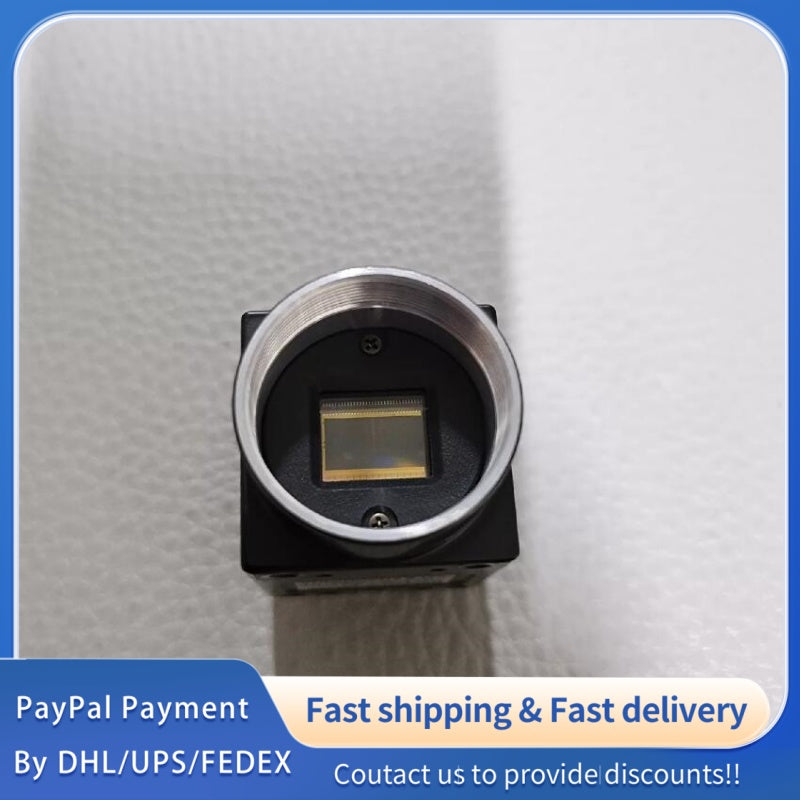

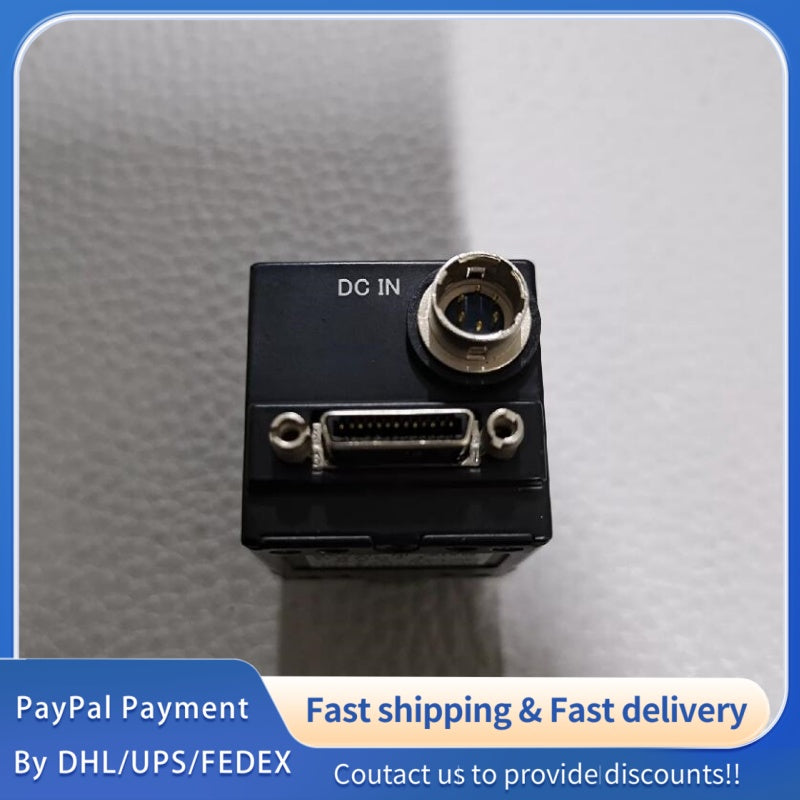

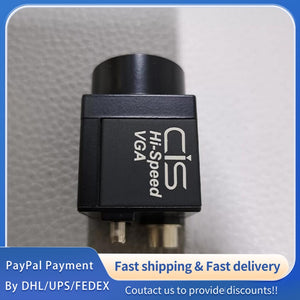

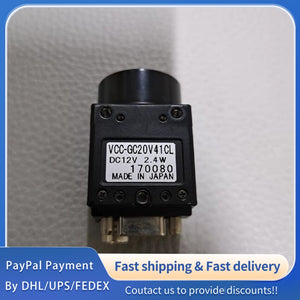

1 PCS used CIS Industrial Camera VCC-GC20V41CL#LYQ007
1 PCS used CIS Industrial Camera VCC-GC20V41CL#LYQ007
| Item | Specification |
|---|---|
| Product Model | VCC-GC20V41CL |
| Color / Mono | Mono |
| Sensor Type | CMOS (1/4-type) |
| Sensor Model | CMV2000 |
| Shutter Type | Global Shutter |
| Effective Pixels | 640 (H) × 480 (V) |
| Pixel Size | 5.5 μm (H) × 5.5 μm (V) |
| Chip Size | 3.52 mm (H) × 2.64 mm (V) |
| Image Circle | φ4.4 mm |
| Resolution | VGA (480 TV lines equivalent) |
| Max Frame Rate | 500 fps (Full Frame) |
| Partial Scan Frame Rate | 984.49 Hz (Vertical 1/2) |
| Output Interface | Camera Link 2Tap (Base Configuration) |
| Output Format | 8-bit / 10-bit selectable |
| Pixel Clock | 79.99 MHz |
| Horizontal Frequency | 246.12 kHz |
| Vertical Frequency (Full Frame) | 502.29 Hz |
| Sensitivity | F2.0, 400 lx (Shutter: 1/500s, Gain: 0dB) |
| Minimum Illumination | F1.4, 5.0 lx (Shutter: 1/500s, Gain: +12dB) |
| Gain Range | 0 to +12 dB (Digital, 0.1 dB/step) |
| Shutter Speed Range | OFF (1/500s) to 1/50,000 s |
| Shutter Modes | Normal, Fixed Trigger, Pulse Width Trigger |
| Scan Modes | Full Frame, Vertical Partial (1/2, Manual) |
| Power Requirement | DC 12 V ±10% |
| Power Consumption | 1.6 W (Typical) |
| Dimensions | 29 mm (W) × 29 mm (H) × 29 mm (D) (excl. protrusions) |
| Weight | Approx. 50 g |
| Lens Mount | C-mount |
| Sync. System | Internal Sync. |
| External Trigger | Supported |
