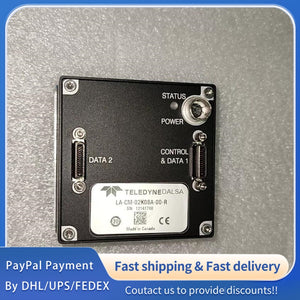

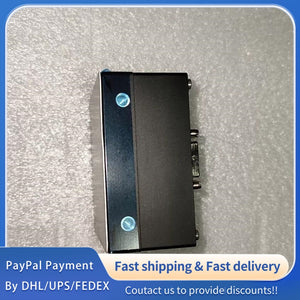

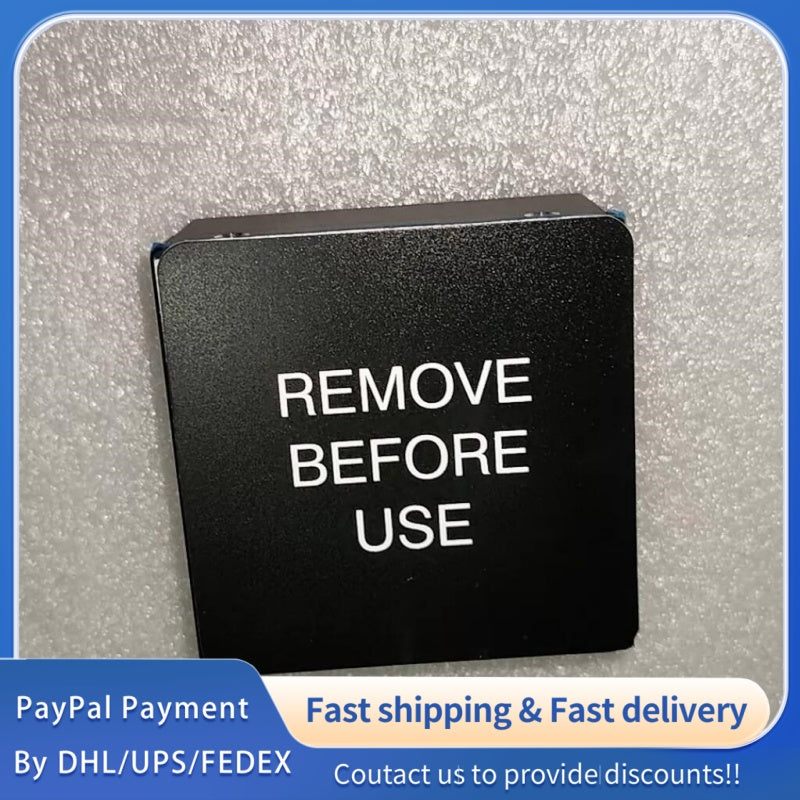

1 PCS used Teledyne DALSA LA-CM-02K08A-00-R industrial camera#LYQ007
1 PCS used Teledyne DALSA LA-CM-02K08A-00-R industrial camera#LYQ007
| Parameter | Value |
|---|---|
| Manufacturer | Teledyne DALSA |
| Model Number | LA-CM-02K08A-00-R |
| Series | Linea Monochrome Camera Link |
| Camera Type | Line Scan |
| Sensor Technology | CMOS |
| Resolution | 2048 × 1 pixel |
| Pixel Size | 7.04 µm × 7.04 µm |
| Maximum Line Rate | 80 kHz |
| Spectral Response | Monochrome (Visible/Near-IR) |
| Bit Depth | 8/12 bit selectable |
| Data Interface | Camera Link (Base/Medium/Full) |
| Data Connector | SDR-26 mini Camera Link |
| Lens Mount | M42 × 1 (C/F-mount adapters available) |
| Responsivity | 320 DN/(nJ/cm²) @ 12 bit, 1× gain |
| Dynamic Range | > 60 dB |
| Nominal Gain Range | 1× to 10× |
| Exposure Control | Programmable via software/API; external trigger pulse width controllable |
| Features | Multiple ROI/AOI, smart flat-field & lens shading correction, 8 programmable coefficient sets, GenICam compliant |
| Power Input | +5 VDC to +24 VDC (Hirose 6-pin) or PoCL |
| Power Dissipation | < 4.5 W |
| Operating Temperature | 0 °C to +65 °C (front plate) |
| Storage Temperature | -20 °C to +70 °C |
| Dimensions (W×H×L) | 62 mm × 62 mm × 31 mm |
| Mass | 190 g |
| Regulatory Compliance | CE, FCC, RoHS |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
