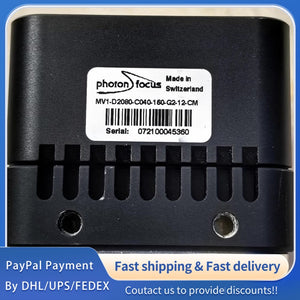

1 PCS used Photon Focus MV1-D2080-C040-160-G2-12-CM Industrial Camera #LYQ007
1 PCS used Photon Focus MV1-D2080-C040-160-G2-12-CM Industrial Camera #LYQ007
|
Parameter
|
Original Factory Precise Value
|
|
Part Number
|
MV1-D2080-C040-160-G2-12-CM
|
|
Product Category
|
Industrial CMOS Camera (Monochrome)
|
|
Image Sensor
|
Photon Focus A2080 CMOS Image Sensor, 3rd generation, without glass cover
|
|
Sensor Resolution
|
2080 x 2080 Pixels (4.3 Megapixels)
|
|
Pixel Size
|
8 μm x 8 μm
|
|
Active Optical Area
|
16.64 mm x 16.64 mm (maximum)
|
|
Optical Format
|
4/3", 23.5 mm diagonal (max resolution, <25 mm image circle)
|
|

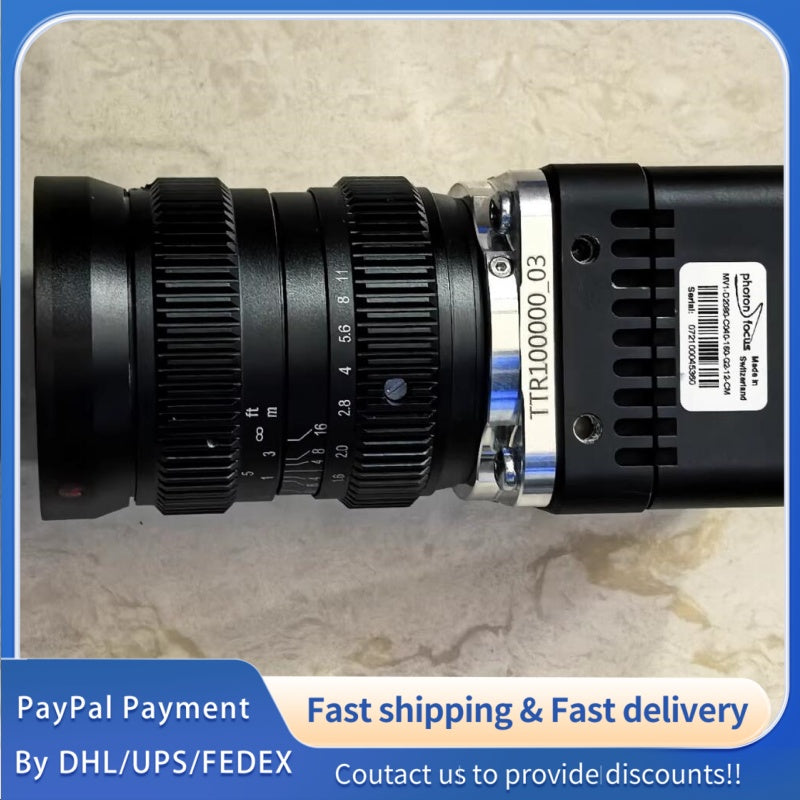

Lens Mount
|
C-Mount (model designation "CM" indicates C-Mount)
|
|
Spectral Range
|
370 nm - 1000 nm (standard model, to 10% of peak responsivity)
|
|
Shutter Mode
|
Global Shutter, high resistance to blooming
|
|
Exposure Time
|
10 µs - 0.41 s, adjustable in 25 ns steps
|
|
Frame Rate
|
25 fps at full resolution (2080 x 2080 pixels); constant frame rate independent of exposure time
|
|
Grayscale Resolution
|
Up to 12-bit (model designation "12" indicates 12-bit); optional 8-bit/10-bit
|
|
Dynamic Range
|
60 dB in linear mode; up to 120 dB with patented LinLog® technology
|
|
Full Well Capacity (FWC)
|
Approx. 90 ke⁻ (max SNR > 300:1)
|
|
Quantum Efficiency
|
> 50%
|
|
Pixel Fill Factor
|
> 60% (without micro-lenses)
|
|

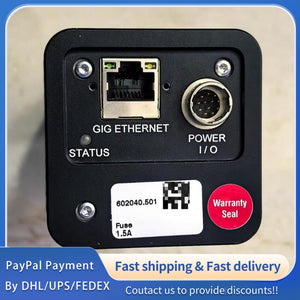

Interface Type
|
Gigabit Ethernet (GigE), GigEVision and GenICam compliant (model designation "G2" indicates GigE interface)
|
|
I/O Interface
|
2x opto-isolated trigger inputs; 2x differential opto-isolated RS-422 inputs; 2x opto-isolated outputs; programmable PLC for I/O signal operations
|
|
On-Camera Functions
|
Up to 512 Regions of Interest (MROI); 2 look-up tables (12-to-8 bit) on user-defined image regions; 3x3 convolver for image preprocessing; crosshairs overlay; image correction; status line in picture; temperature monitoring of sensor and camera
|
|
Power Supply
|
12 V DC (-10%) to 24 V DC (+10%)
|
|
Power Consumption
|
< 5 W (over full operating range)
|
|
Dimensions (HxWxL)
|
60 x 60 x 47 mm³
|
|
Weight
|
222 g
|
|
Operating Temperature
|
0 °C to +50 °C
|
|
Certifications
|
CE, RoHS, WEEE
|
|
Software Support
|
PFremote™ graphical user interface (GUI) and PFLib (SDK); compatible with Windows, Linux (32-bit & 64-bit); other OS (QNX, etc.) on request; camera information readable over SDK
|
|
Note
|
Monochrome industrial camera, optimized for high dynamic range and high SNR applications; parameters are original factory standards, do not modify without authorization; model is C-Mount with 12-bit grayscale and GigE interface.
|
