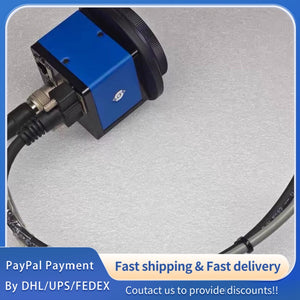

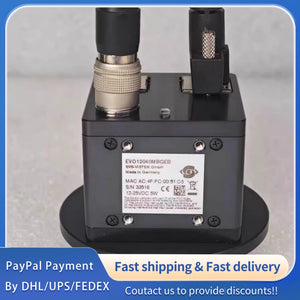

1 PCS used SVS-VISTEK EVO12040MBGEB Industrial Camera #LYQ007
1 PCS used SVS-VISTEK EVO12040MBGEB Industrial Camera #LYQ007
1 PCS used SVS-VISTEK EVO12040MBGEB Industrial Camera #LYQ007
Original Factory Precision Parameters (Model: SVS-VISTEK EVO12040MBGEB Industrial Camera)
|
Parameter Category
|
Parameter Name
|
EVO12040MBGEB Specification
|
|
Basic Information
|
Product Model
|
EVO12040MBGEB; SVS-VISTEK Genuine Original Industrial Camera, 100% unused and unrefurbished genuine parts; Industrial-grade high-precision CMOS industrial camera
|
|
Manufacturer Standard
|
Manufactured by SVS-VISTEK; Complies with CE, UL, ISO 9001, IEC 61010-1, RoHS 2.0 Standards; Conforms to SVS-VISTEK Internal Technical and Quality Norms for Industrial Cameras; Anti-EMI/EMS design meets industrial precision imaging requirements
|
|
|
Product Application
|
Industrial Automation Detection, Semiconductor Wafer Inspection, Precision Component Measurement, Electronic Product Assembly Detection, Laboratory Imaging Analysis, Medical Device Detection, Food and Pharmaceutical Packaging Inspection
|
|
|
Core Imaging Parameters
|

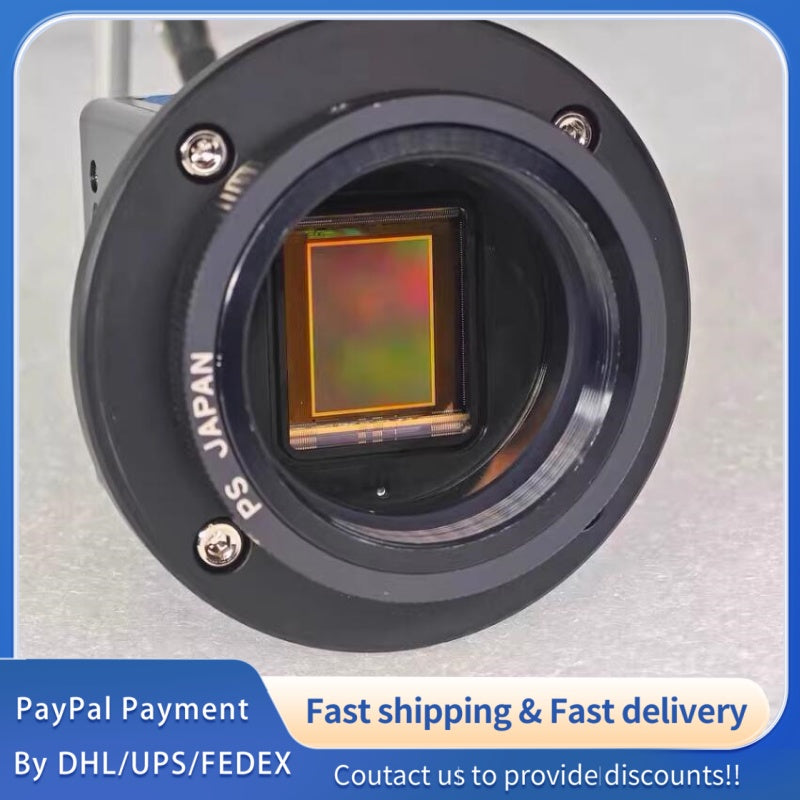

Image Sensor Type
|
1/2.3" Progressive Scan CMOS Sensor; Global Shutter; High Sensitivity, Low Noise, Fast Response; Sensor Pixel Size: 3.45 μm × 3.45 μm
|
|
Resolution
|
4096 × 3072 Pixels (12.5 Megapixels); Fixed Resolution, No Interpolation; Image Aspect Ratio: 4:3; Effective Pixels: ≥12.5 MP
|
|
|
Frame Rate
|
Max 120 fps @ Full Resolution (4096×3072); Adjustable Frame Rate: 1~120 fps; 240 fps @ 2048×1536; 480 fps @ 1024×768
|
|
|
Dynamic Range
|
≥72 dB (Standard Mode); ≥85 dB (HDR Mode); High Dynamic Range, Clear Imaging of Bright and Dark Areas Simultaneously
|
|
|
Signal-to-Noise Ratio (SNR)
|
≥42 dB (Typical); Low Noise Design, Ensure Image Clarity and Integrity; Noise Reduction: 2D/3D Digital Noise Reduction
|
|
|
Exposure Time
|
1 μs ~ 10 s; Adjustable in Stepless Mode; Exposure Control: Auto/Manual/Trigger Control; Anti-Blooming Function Supported
|
|
|
Sensitivity
|
1.2 V/(lx·s) (550 nm); High Sensitivity, Adapt to Low-Light Working Environments; Optional Sensitivity Enhancement Mode
|
|
|
Spectral Response
|
400 ~ 1000 nm (Visible Light + Near Infrared); Optional UV/VIS/NIR Custom Spectral Response; IR Cut Filter Optional (Removable)
|
|
|
Optical & Lens Parameters
|
Lens Mount
|
C-Mount (Standard); Optional F-Mount; Compatible with Industrial Fixed/Focusing/Zoom Lenses; Lens Interface Thread: M12 × 0.5 (Optional)
|
|
Optical Format
|
1/2.3" (Optical Diagonal: 7.7 mm); Compatible with Lenses Matching 1/2.3" or Larger Optical Format
|
|
|
Distortion
|
≤0.1% (Optical Distortion); Low Distortion, Ensure High-Precision Measurement Accuracy; Distortion Correction Function Supported
|
|
|
Depth of Field
|
Adjustable with Lens Focal Length and Aperture; Support Depth of Field Enhancement Mode; Suitable for Multi-Layer Component Detection
|
|
|
Light Source Compatibility
|
Compatible with LED, Halogen, Laser Light Sources; Built-in Light Source Control Interface; Support Strobe Light Source Synchronization
|
|
|
Optical Filter
|
Built-in IR Cut Filter (520 nm); Optional Band-Pass Filter, Neutral Density Filter; Filter Installation: Drawer-Type (Easy to Replace)
|
|
|
Data Interface & Communication Parameters
|
Data Interface Type
|
GigE Vision (Gigabit Ethernet); Complies with GigE Vision 2.0 Standard; Data Transfer Rate: Up to 1000 Mbps; Support PoE (Power over Ethernet) IEEE 802.3af
|
|
Communication Protocol
|
GigE Vision, GenICam; Support Remote Parameter Configuration, Image Acquisition Control and Status Monitoring; Compatible with Industrial Vision Software (Halcon, LabVIEW)
|
|
|
Trigger Mode
|
Free Run/Auto Trigger/External Trigger/Software Trigger; Trigger Delay: 0 ~ 1000 ms (Adjustable); Trigger Signal: TTL Level (5 V)
|
|
|
I/O Interface
|
4 Inputs/4 Outputs (Optically Isolated); TTL/Open Collector; Support Trigger Input, Shutter Control, Light Source Control and Alarm Output
|
|
|
Interface Protection
|
2500 V AC Optical Isolation (1 Minute); ESD Protection ±15 kV (Contact), ±25 kV (Air); Surge Protection for Ethernet Interface
|
|
|
Image Output Format
|
Mono 8/12/16 bit, RGB 8/12/16 bit; Raw Data, JPEG, PNG, BMP; Support Image Compression (Lossless/Lossy); Custom Output Format Optional
|
|
|
Protection & Safety Parameters
|
Over-Temperature Protection
|
Alarm & Reduce Frame Rate when Internal Temperature ≥70℃; Automatic Recovery after Cooling to ≤60℃; Protect Internal Sensor and Chips
|
|
Over-Voltage Protection
|
Built-in Over-Voltage Protection Circuit; Cut off Power when Input Voltage ≥24 V DC; Prevent Damage to Internal Components
|
|
|
Under-Voltage Protection
|
Alarm when Input Voltage ≤9 V DC; Prompt for Abnormal Power Supply; Ensure Stable Image Acquisition
|
|
|
Sensor Fault Protection
|
Alarm when Sensor Open/Short Circuit or Imaging Abnormality; Prevent Misoperation Caused by Sensor Failure
|
|
|
Interface Fault Protection
|
Alarm when Ethernet/I/O Interface Fault is Detected; Automatic Reset Interface; Ensure Stable Data Transmission
|
|
|
Fault Alarm Function
|
Built-in Fault Self-Diagnosis Function; Output Alarm Signal (I/O Interface) when Fault Occurs; Support Fault Log Storage (Max 500 Entries)
|
|
|
Password Protection
|
Support 6~16 Bit Password Protection; Prevent Misoperation and Parameter Modification; Protect Imaging Precision Parameters
|
|
|
Environmental & Structural Parameters
|
Operating Temperature
|
-10℃ ~ 60℃; Stable operation in extreme temperature environments, adapt to various industrial working conditions
|
|
Storage Temperature
|
-20℃ ~ 80℃; Stable storage performance, no performance degradation after long-term storage in harsh environments
|
|
|
Relative Humidity
|
5% ~ 95% (Non-Condensing); Resists humid industrial environments, no short circuit or malfunction
|
|
|
Protection Class
|
IP54; Dustproof and waterproof design, suitable for installation in outdoor or wet industrial sites
|
|
|
Installation Type
|
Base Mounting / DIN Rail Mounting (Optional); Installation Thread: M4 (Standard), Customizable; Easy to install and disassemble, convenient for maintenance
|
|
|
Dimensions (L×W×H)
|
65×65×50 mm (±2 mm); Compact structure, small installation space, easy to integrate with industrial vision equipment
|
|
|
Functional & Other Parameters
|
Start-up Time
|
≤500 ms (Standard Working Conditions); Fast start-up, quickly enter working state, realize real-time image acquisition
|
|
Remote Control Function
|
Support Remote On/Off, Parameter Configuration, Image Acquisition Control and Fault Query via GigE Interface; Convenient for Centralized Control of Multiple Cameras
|
|
|
Service Life
|
≥20000 Operating Hours (Continuous Operation, Standard Working Conditions); High reliability, reducing maintenance frequency
|
|
|
Calibration Function
|
Support Manual Calibration & Automatic Calibration (Shading Correction, Gain Correction); Provide SVS-VISTEK Original Calibration Tools (Optional); Ensure Long-term Imaging Precision
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
