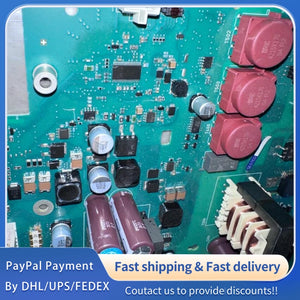

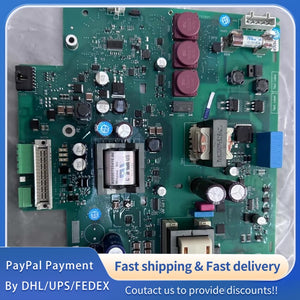

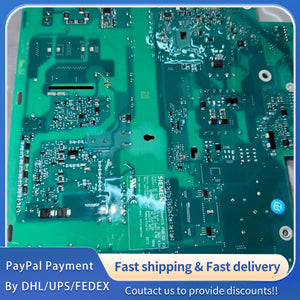

1 PCS used Siemens SINAMICS S120 PSB‑C2 V3 (Booksize Power Supply Board)#LYQ007
1 PCS used Siemens SINAMICS S120 PSB‑C2 V3 (Booksize Power Supply Board)#LYQ007
| Parameter Category | Parameter | Value | Remarks |
|---|---|---|---|
| Ordering Information | Base Part Number | 6SL3130‑xxE2x‑xxx3 | PSB‑C2 V3; xx = power/cooling code |
| Frame Size | Booksize C | For 18–60 A single motor modules; 2×18 A dual | |
| Hardware Version | V3 | As specified | |
| Electrical Input (3‑Phase AC) | Rated Voltage | 380–480 V AC | ±10% tolerance; -15% for <1 min |
| Frequency Range | 47–63 Hz | Continuous operation | |
| Overvoltage Category | III | IEC/EN 60664‑1 | |
| DC Link Output | Nominal Voltage | 600 V DC | Regulated (ALM) / Unregulated (SLM) |
| Voltage Limits | 360 V (UVO); 820 V (OVO) | Undervoltage/Overvoltage shutdown | |
| Precharge | Integrated | Max. 1 precharge every 3 min | |
| Power Ratings (Typical) | Rated Power (ALM) | 16–80 kW | Per specific order number (e.g., 6SL3130‑7TE28‑0AA3 = 80 kW) |
| Rated Power (SLM) | 5–36 kW | Per specific order number (e.g., 6SL3130‑6TE23‑6AB0 = 36 kW) | |
| Regeneration | Continuous/Peak | ALM only; SLM = no regeneration | |
| Electronics Supply | Control Voltage | 24 V DC | -15% / +20% tolerance |
| Current Consumption | ≤ 500 mA | Typical for booksize modules | |
| Cooling & Thermal | Cooling Method | Internal Air Cooling | Integrated fan; cabinet ventilation required |
| Operating Temp. | 0–40 °C | No derating; derate above 40 °C | |
| Storage/Transport | -40–70 °C | Climatic class 2K4 (EN 60721‑3‑2) | |
| EMC & Safety | EMC Category | C2 (1st env.) / C3 (2nd env.) | EN 61800‑3 |
| Protection Class | IP20 | EN 60529; Open type (UL 508C) | |
| Safety Extra Low Voltage | PELV/SELV | Electronic circuits | |
| Mechanical & Interface | Dimensions | Booksize C | Standard S120 booksize footprint |
| Weight | 4.8–12 kg | Per power rating | |
| Interfaces | 3× DRIVE‑CLiQ; 24 V terminal adapter; PE | Std. for booksize power modules | |
| Standards Compliance | IEC/EN | 61800‑5‑1, 60664‑1, 60721‑3‑2 | Industrial drive safety & EMC |
