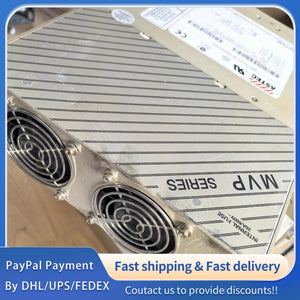

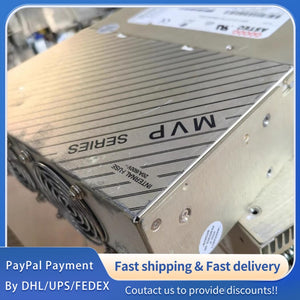

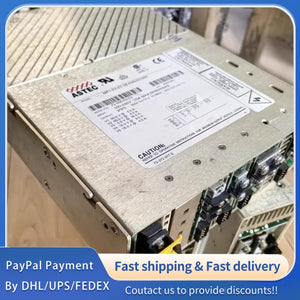

1 PCS used ASTEC MP1-2Y-2Y-1E-4NN-00-N63 power supply#LYQ007
1 PCS used ASTEC MP1-2Y-2Y-1E-4NN-00-N63 power supply#LYQ007
1 PCS used ASTEC MP1-2Y-2Y-1E-4NN-00-N63 power supply#LYQ007
| Parameter Category | Parameter Name | Specification |
|---|---|---|
| Basic Information | Model Number | MP1-2Y-2Y-1E-4NN-00-N63 |
| Basic Information | Product Type | Configurable AC-DC Power Supply (MVP Series) |
| Basic Information | Manufacturer | Astec (Artesyn Embedded Technologies, Emerson Network Power) |
| Basic Information | Rated Power | 1000 W (Total Output) |
| Basic Information | RoHS Status | Lead-Free / RoHS Compliant |
| Input Specifications | AC Input Voltage | 85 – 264 VAC (Universal Input) |
| Input Specifications | DC Input Voltage | 120 – 350 VDC |
| Input Specifications | Input Frequency | 47 – 440 Hz |
| Input Specifications | Inrush Current | 40 A Peak (Maximum) |
| Input Specifications | Power Factor | 0.99 (Typical, Complies with EN61000-3-2) |
| Input Specifications | Turn-On Time | 1.5 Seconds (Typical, AC to Main Output) |
| Output 1 (2Y) | Output Voltage | 12 VDC (Configured per "2Y" Code) |
| Output 1 (2Y) | Rated Current | 50 A (Max Continuous) |
| Output 1 (2Y) | Voltage Adjustment | ±10% (Typical, via Potentiometer) |
| Output 1 (2Y) | Remote Sense | Up to 0.5 V Total Drop Compensation |
| Output 1 (2Y) | Current Share | Yes (to within 2% of Total Rated Current for Parallel Operation) |
| Output 2 (2Y) | Output Voltage | 12 VDC (Configured per "2Y" Code) |
| Output 2 (2Y) | Rated Current | 50 A (Max Continuous) |
| Output 2 (2Y) | Voltage Adjustment | ±10% (Typical, via Potentiometer) |
| Output 2 (2Y) | Remote Sense | Up to 0.5 V Total Drop Compensation |
| Output 2 (2Y) | Current Share | Yes (to within 2% of Total Rated Current for Parallel Operation) |
| Output 3 (1E) | Output Voltage | 5 VDC (Configured per "1E" Code) |
| Output 3 (1E) | Rated Current | 40 A (Max Continuous) |
| Output 3 (1E) | Voltage Adjustment | ±10% (Typical, via Potentiometer) |
| Output 3 (1E) | Remote Sense | Up to 0.5 V Total Drop Compensation |
| Output 3 (1E) | Current Share | Yes (to within 2% of Total Rated Current for Parallel Operation) |
| Auxiliary Output | Isolated 5 V Bias | Yes (SELV Housekeeping Power) |
| Electrical Protection | Overvoltage Protection (OVP) | 110 – 120% (6 – 60 V Outputs); Auto-Reset via AC Cycle |
| Electrical Protection | Overcurrent Protection (OCP) | 105 – 120% (Rated Current, Latching/Automatic Reset) |
| Electrical Protection | Short Circuit Protection | Continuous Short Circuit Protected; Auto-Recovery |
| Electrical Protection | Thermal Protection | Internal Overtemperature Shutdown; Auto-Recovery |
| Electrical Protection | Reverse Voltage Protection | 100% of Rated Output Current |
| Performance | Efficiency | 70 – 80% (Typical, Full Load) |
| Performance | Temperature Coefficient | 0.02% per °C (Typical) |
| Performance | Ripple & Noise | < 1% of Output Voltage (Typical, 20 MHz Bandwidth) |
| Control & Signaling | Global DC OK | Yes (Form C Relay, Emitter/Collector) |
| Control & Signaling | Input AC OK | Yes (Form C Relay, Emitter/Collector) |
| Control & Signaling | Global Inhibit/Enable | Yes (Logic 0/1, Return) |
| Control & Signaling | Individual Module Enable | Yes |
| Mechanical | Dimensions (L × W × H) | 203.2 mm × 127.0 mm × 63.5 mm (8.0 in × 5.0 in × 2.5 in) |
| Mechanical | Chassis Material | Aluminum with Chemical Film Coating (Conductive) |
| Mechanical | Mounting | 3-Side M4 Holes; Bottom 8-32 Holes (Max Torque: 5 in-lbs) |
| Mechanical | Output Terminals | M4 × 8 mm Screws (Single Output Modules, Max Torque: 10 in-lbs) |
| Mechanical | Weight | 3.5 kg (Typical) |
| Environmental | Operating Temperature | -20 °C to 50 °C (Start @ 0 °C); Linear Derate to 50% at 70 °C |
| Environmental | Storage Temperature | -40 °C to +85 °C |
| Environmental | Operating Humidity | 0 – 95% RH (Non-Condensing) |
| Environmental | Shock & Vibration | Compliant with MIL-STD-810E |
| Regulatory | EMI/EMC | CISPR 22, EN55022 (Class B, Conducted/Radiated); EN61000-4 (Level 3) |
| Regulatory | Safety Standards | IEC/EN 60950-1, UL 60950-1, CSA 22.2 No. 60950-1 |
| Regulatory | CE Mark | Yes |
| Warranty | Warranty Period | 1 Year (Factory Standard) |
