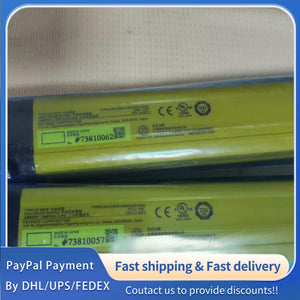

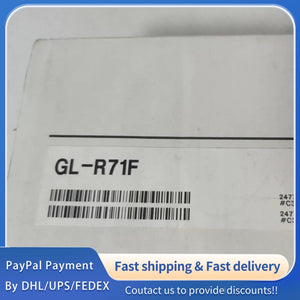

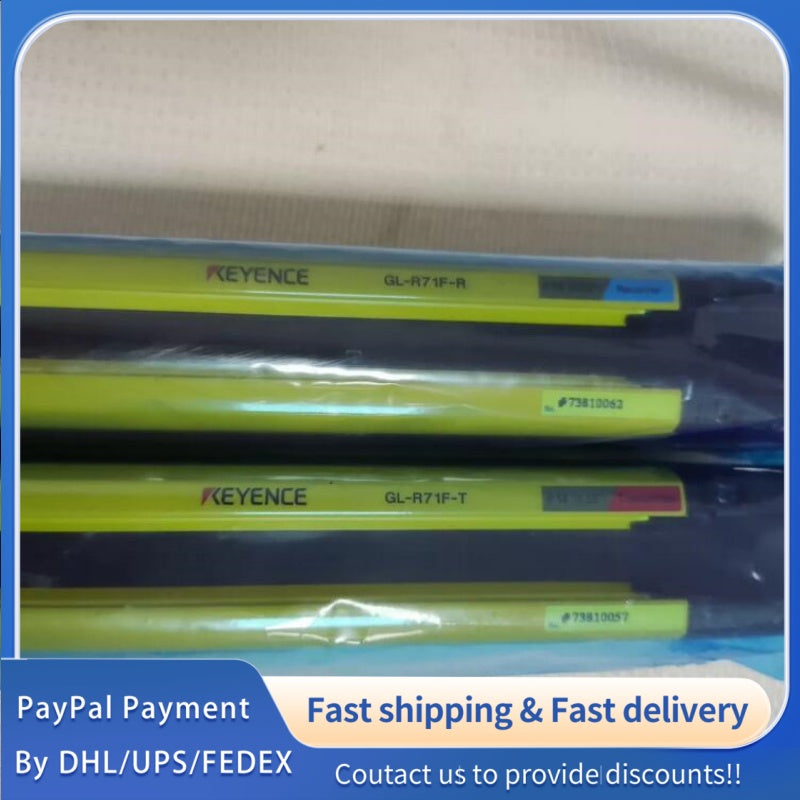

1 PCS NEW KEYENCE GL-R71F Safety Light Curtain #LYQ007
1 PCS NEW KEYENCE GL-R71F Safety Light Curtain #LYQ007
| Item | Specification |
|---|---|
| Model | GL-R71F |
| Detection capability | ø14 mm |
| Total length | 720 mm |
| Number of beams | 71 |
| Detection height | 700 mm |
| Protection height | 724 mm |
| Beam axis spacing / Lens diameter | 10 mm / ø4 mm |
| Detecting distance | 0.2 to 10 m |
| Effective aperture angle | Max. ±2.5° (when operating distance ≥ 3 m) |
| Light source | Infrared LED (870 nm) |
| Response time (OSSD) (ms) | Wire/Optical sync (Ch 0): ON→OFF: 12.1; OFF→ON: 56.9; All blocked→ON: 85.2
|
| Detection mode | ON when detection zone is clear |
| Synchronization | Optical or wire synchronization (wiring‑selectable) |
| Control output (OSSD) | 2 transistor outputs (PNP/NPN by cable)
|
| Supplemental output (AUX) | Transistor output (PNP/NPN by cable)
|
| Muting lamp output | 24 VDC incandescent (1–5.5 W) or LED (10–230 mA) |
| External input (PNP cable) | EDM, Wait, Reset, Muting 1/2, Override
|
| External input (NPN cable) | ON: 0–3 V; OFF: Open/≥10 V; Short‑circuit current: ~2.5 mA (~10 mA for EDM) |
| Power supply | 24 VDC ±20%, ripple (P‑P) ≤10%, Class 2 |
| Current consumption (max.) | Transmitter: 66 mA; Receiver: 78 mA |
| Protection circuits | Reverse current, short‑circuit, surge protection per output |
| Approved standards | Safety: IEC/EN/UL61496‑1/‑2 (Type 4), IEC/EN61508 (SIL3), EN ISO13849‑1 (Cat 4, PLe)
|
| Enclosure rating | IP65/IP67 (IEC 60529) |
| Overvoltage category | II |
| Ambient light | Incandescent: ≤3,000 lux; Sunlight: ≤20,000 lux |
| Operating temperature | −10 to +55 °C (no freezing) |
| Operating humidity | 15–85% RH (no condensation) |
| Storage temperature | −25 to +60 °C (no freezing) |
| Storage humidity | 15–95% RH |
| Vibration resistance | 10–55 Hz, double amplitude 0.7 mm, 20 sweeps (X/Y/Z) |
| Shock resistance | 100 m/s² (≈10 G), 16 ms pulse, 1,000 times (X/Y/Z) |
| Material | Main case: Aluminum; Upper/lower case: Nylon (GF30%); Front cover: Polycarbonate, SUS304 |
| Weight | Transmitter: 1000 g; Receiver: 1010 g |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
