1 PCS NEW Little Giant TE-6-MD-HC Magnetic Drive Pump #LYQ007
1 PCS NEW Little Giant TE-6-MD-HC Magnetic Drive Pump #LYQ007
| Parameter | Value |
|---|---|

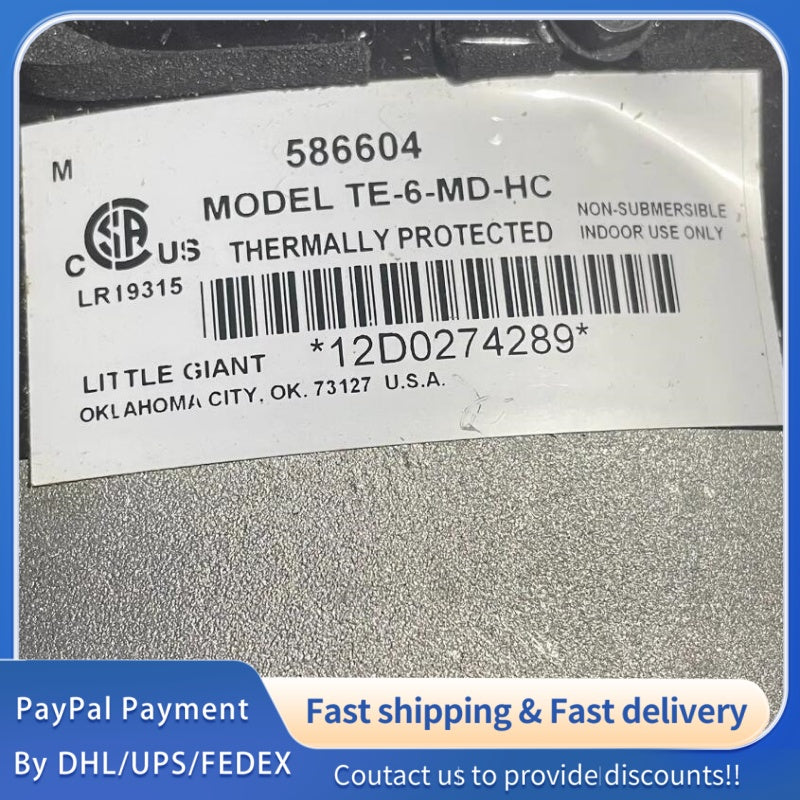

| Model | TE-6-MD-HC |
| Mfg. Part Number | 586604 |
| Pump Type | Magnetic Drive, Seal-less, Non-submersible, In-line |
| Horsepower | 1/2 HP |
| Motor Type | TEFC (Totally Enclosed Fan Cooled), Split Phase / PSC |
| Voltage | 115/230 V, 1 Phase |
| Frequency | 50/60 Hz |
| Current (115V / 230V) | 11.6 / 5.8 A |
| Power (115V / 230V) | 835 / 640 W |
| RPM | 2850 / 3450 |
| Max Flow Rate | 38 GPM (125 LPM) |
| Max Head (Shut-off) | 51 ft (10.7 m) |
| Suction Connection | 1" FNPT (25.4 mm) |
| Discharge Connection | 3/4" MNPT (19 mm) |
| Max Operating Pressure | 60 psig |
| Max Fluid Temperature | 200°F (93.3°C) |
| Max Ambient Temperature | 77°F (25°C) |
| Specific Gravity | Up to 1.1 |
| Viscosity | Up to 100 SSU (20 CPS) |
| Run-dry Capability | Up to 8 hours |
| Volute / Backplate | Glass-filled Polyphenylene Sulfide (Ryton® PPS) |
| Impeller | Glass-filled PPS with Carbon Bushing |
| Shaft / Thrust Washers | 99.5% Pure Alumina Ceramic |
| O-ring | Fluoroelastomer (FKM / Viton®) |
| Certifications | cCSAus, CE |
| Weight | 29 lbs (13.15 kg) |
| Dimensions (L×W×H) | 15.3 × 8.8 × 7 in |
| Power Cord | Not Included |
| Applications | Corrosive acids, alkalis, solvents, brine, plating solutions, sterile fluids |
