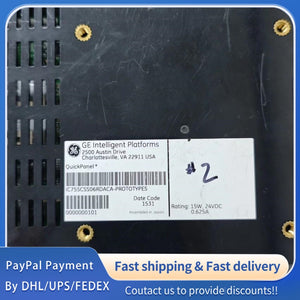

1 PCS USED GE Touch Screen IC755CSS06RDACA-PROTOTYPES #LYQ007
1 PCS USED GE Touch Screen IC755CSS06RDACA-PROTOTYPES #LYQ007
1 PCS USED GE Touch Screen IC755CSS06RDACA-PROTOTYPES #LYQ007
Part Number: IC755CSS06RDACA-PROTOTYPES; Model: IC755 Series; Product Name: Industrial Touch Screen Panel (Prototype Version)
Brand: GE (General Electric, a Global Leader in Industrial Automation and Control Solutions)
Product Status: Prototype Unit (For R&D, Testing and Evaluation Only, Not for Mass Production); Product Category: Industrial Grade Human-Machine Interface (HMI), Compatible with GE Industrial Control Systems
Core Application: Designed for R&D verification, system integration testing, and performance evaluation in industrial automation scenarios such as manufacturing workshops, process control systems, power equipment, and intelligent control cabinets. Suitable for validating human-machine interaction, parameter setting, real-time data display, and operational control functions of industrial equipment.
Core Features: High-precision 4-wire resistive touch technology; Industrial-grade TN LCD panel with stable display performance; Multiple communication protocol support for seamless integration; Robust structure adaptable to harsh industrial environments; Easy compatibility with GE and third-party control systems; Built-in diagnostic functions for prototype performance monitoring.
2. Display & Touch Specifications (Ta = 25℃, Unless Otherwise Specified)
2.1 Display Parameters
Display Size: 5.7 Inches (Diagonal); Display Type: TN LCD Panel; Resolution: 320 × 240 Pixels;
Brightness: 300 cd/㎡ (Typical); Contrast Ratio: 300:1 (Typical); Viewing Angle: Horizontal ±45°, Vertical ±30°;
Backlight Type: LED; Backlight Lifetime: ≥ 50,000 Hours (Typical); Display Colors: 262K Colors; Backlight Dimming: Not Supported (Prototype Configuration).
2.2 Touch Parameters
Touch Technology: 4-Wire Resistive Touch; Touch Accuracy: ±1 Pixel (Within Full Screen); Response Time: ≤ 10 ms;
Touch Durability: ≥ 1 Million Touches (Single Point, Prototype Test Standard); Operating Force: 100 - 200 g; Support for Single-Touch Operation; Touch Calibration: Manual Calibration via Configuration Software.
3. Electrical Specifications (Ta = 25℃, Unless Otherwise Specified)
3.1 Power Supply Parameters
Power Supply Source: DC Power Supply; Rated Supply Voltage: DC 24 V ±10% (Typical);
Rated Input Current: ≤ 0.5 A (Normal Operation), ≤ 1.2 A (Peak Operation); Power Consumption: ≤ 12 W (Typical);
Power Protection: Overcurrent protection, overvoltage protection, and undervoltage protection to prevent damage from power supply anomalies; Power Connector: Standard Industrial DC Connector (Prototype Specification).
3.2 Communication Interfaces
Serial Ports: 2 × RS232 Ports, 1 × RS485 Port; Supported Protocols: Modbus RTU, GE Proprietary Protocols (Compatible with GE PLCs);
Baud Rate: 9600/19200/38400/57600 Bps (Configurable); Data Bits: 7/8 Bits (Selectable); Parity: None/Odd/Even (Selectable); Interface Protection: ESD Protection for Serial Ports.
