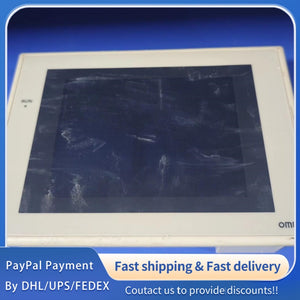

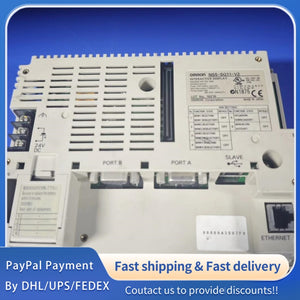

1 PCS USED Omron HMI NS5-SQ11-V2 touch screen #LYQ007
1 PCS USED Omron HMI NS5-SQ11-V2 touch screen #LYQ007
1 PCS USED Omron HMI NS5-SQ11-V2 touch screen #LYQ007
Part Number: NS5-SQ11-V2; Model: NS5-SQ11-V2; Product Name: Omron NS5-SQ11-V2 Human-Machine Interface (HMI) Touchscreen Terminal; Product Series: Omron NS5-V2 Series Programmable Terminals, Compact Industrial HMI Solution
Brand: Omron (Omron Corporation, a global leader in industrial automation, specializing in HMI terminals, PLCs, sensors, and motion control systems, delivering reliable solutions for manufacturing, automotive, electronics, and process industries worldwide.)
Product Status: Industrial-Grade Original Equipment (Factory Calibrated, 100% Functional, RoHS Compliant); Product Category: Panel-Mounted Industrial HMI Touchscreen, designed for real-time equipment monitoring, parameter configuration, fault diagnosis, and operational control in industrial automation environments.
Core Application: Widely used in packaging machinery, material handling systems, pharmaceutical production lines, food processing equipment, and automotive assembly stations. Specifically suitable for medium-scale industrial applications requiring compact design, multi-language support, and seamless integration with Omron SYSMAC CS/CJ/NJ Series PLCs, inverters, and other automation devices.
Core Features: 5.7-inch color TFT LCD with LED backlight for clear visual display; Intuitive resistive touchscreen for precise operation; Integrated Ethernet and serial communication interfaces for flexible device connectivity; 60MB built-in program memory for complex application development; Supports 42 on-screen languages and 8 system languages for global deployment; Panel protection rating IP67 for harsh industrial environments; Compliant with international safety and EMC standards for reliable performance.
2. Core Performance Specifications (Ta = 25℃, Unless Otherwise Specified)
2.1 Display & Touchscreen Parameters
Display Type: 5.7-inch Color TFT LCD with LED Backlight; Resolution: 320 × 240 Pixels (QVGA); Effective Display Area: 88.4mm × 117.2mm; Display Colors: 4096 Colors; Backlight Type: LED (Lifespan: ≥ 50,000 Hours); Brightness: 250 cd/m² (Typical); Contrast Ratio: 300:1 (Typical); Viewing Angle: Horizontal ±60°, Vertical ±45° (CR ≥ 10:1);
Touchscreen Type: 4-Wire Resistive Touchscreen; Touch Resolution: 1024 × 1024 Points; Response Time: ≤15ms; Operation Force: 100g ~ 200g; Number of Touch Points: 1 (Single-Touch Operation); Calibration: 5-Point Calibration (Software-Configurable).
2.2 Memory & Processing Parameters
Program Memory: 60MB (Built-in Flash Memory for Application Programs, Graphics, and Data Logging); Data Memory: 8MB (RAM for Real-Time Data Processing and Temporary Storage); Expansion Interface: 1×ATA-Compact Flash Slot (Supports up to 1GB CF Card for Data Backup and Program Transfer);
Processor: 32-bit RISC CPU (Omron Customized Core); Instruction Execution Speed: ≥ 1.2 MIPS; Real-Time Clock: Built-in (Accuracy: ±2 Minutes/Month at 25℃), Battery Backup: 3V Lithium Battery (Backup Time: ≥ 5 Years).
2.3 Communication & Interface Parameters
Ethernet Interface: 1×10/100BASE-TX Port (RJ45 Connector), Supports TCP/IP, UDP, FTP, EtherNet/IP Protocols, Data Transfer Rate: 10/100 Mbps (Auto-Negotiation);
Serial Interfaces: 2×RS-232C Ports (DB9 Female Connectors), Supports Host Link, NT Link, Modbus RTU Protocols, Baud Rate: 1200 bps ~ 115200 bps (Configurable); 1×USB 1.1 Port (Type A, For Data Transfer and Program Upload/Download);
PLC Compatibility: Omron SYSMAC CS/CJ/NJ/NX Series, Modbus RTU-Compatible Controllers, Third-Party PLCs via Custom Protocol Configuration; Communication Distance: Ethernet (Max 100m with Cat5e Cable), RS-232C (Max 15m with Shielded Cable).
