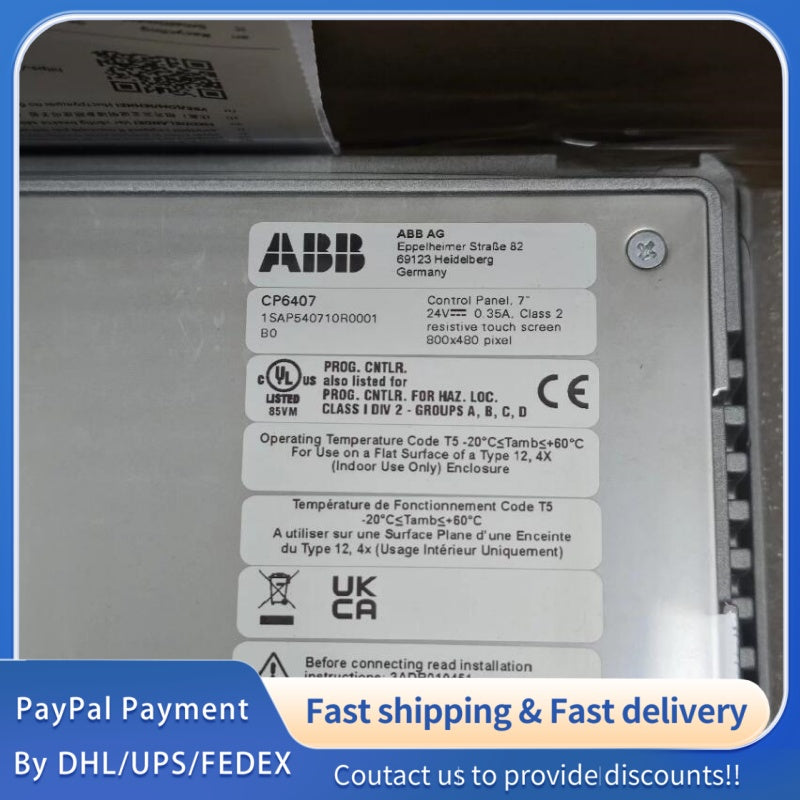

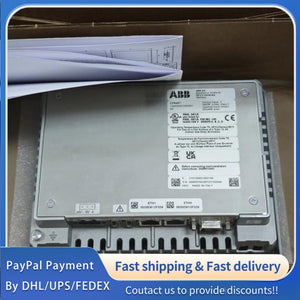

1 PCS new ABB Touch Screen CP6407 1SAP540710R0001 #LYQ007
1 PCS new ABB Touch Screen CP6407 1SAP540710R0001 #LYQ007
1 PCS new ABB Touch Screen CP6407 1SAP540710R0001 #LYQ007
Part Number: 1SAP540710R0001; Model: CP6407; Product Name: ABB Industrial Touch Screen HMI Panel
Brand: ABB (A global leader in power and automation technologies, providing reliable industrial control and HMI solutions for manufacturing, energy, infrastructure, and process industries worldwide)
Product Status: Original Industrial-Grade HMI (In Stock, Available for Immediate Delivery for System Upgrades and Equipment Retrofit); Product Category: Industrial Touch Screen Panel, Designed for Human-Machine Interaction in ABB ADVANT and AC500 Control Systems.
Core Application: Specifically engineered for industrial scenarios including process control systems, machine automation, power distribution equipment, chemical processing plants, water treatment facilities, and manufacturing production lines. It enables intuitive operation, real-time data monitoring, and parameter configuration to support stable system operation.
Core Features: High-Definition Touch Display; Multi-Protocol Communication Compatibility; Industrial-Grade Durability; Intuitive Operation Interface; Real-Time Data Visualization; Built-in Diagnostic Functions; Wide Operating Temperature Adaptability; Strong EMC Anti-Interference Performance.
2. Core Performance Specifications (Ta = 25℃, Unless Otherwise Specified)
2.1 Display & Touch Performance
Display Type: TFT Color LCD Touch Screen; Screen Size: 7.0 Inches Wide Screen; Resolution: 800 × 480 Pixels; Display Color: 64K True Colors (16-bit); Backlight Type: LED Backlight;
Backlight Lifetime: ≥ 50,000 Hours (Typical); Touch Technology: Resistive Touch (2-Point Touch Support); Touch Accuracy: ±2 Pixels; Response Time: ≤15ms (Touch Recognition).
Viewing Angle: Horizontal ±80°, Vertical ±60° (Typical); Contrast Ratio: 300:1 (Typical); Brightness: 300 cd/㎡ (Adjustable via Software).
Display Function: Supports Text, Graphics, Animation, Alarm Pop-ups, Trend Curves, and Real-Time Data Widgets; Screen Saver Function (Configurable Timeout).
2.2 Power Supply Specifications
Input Voltage: 24V DC ±10% (Industrial Standard); Input Current: ≤0.8A (Typical), ≤1.2A (Peak);
Power Consumption: ≤19.2W (Typical, Full Load); Standby Power Consumption: ≤2.0W (Screen Off Mode);
Power Protection: Overvoltage Protection (≥30V DC), Undervoltage Protection (≤18V DC), Reverse Polarity Protection (With Fuse Protection to Prevent Component Damage);
Power Connection: Screw Terminal Block, Compatible with 0.5mm² ~ 2.5mm² Wire Gauge; Built-in EMC Filter (Compliant with EN 55011 Class A).
2.3 Communication & Diagnostic Parameters
Communication Interface: 1 × Serial Port (RS-232/RS-485/RS-422, Configurable), Integrated Backplane Interface (Compatible with ABB AC500 System Backplane);
Communication Protocols: ABB Proprietary Protocol, Modbus RTU, ASCII, Compatible with ABB PLCs and Third-Party Controllers; Data Transmission Rate: Up to 115200 bps (Serial Communication);
Diagnostic Function: Real-Time Fault Detection (Power Abnormality, Communication Failure, Touch Screen Malfunction), System Status Monitoring, Error Logging with Time Stamp, Self-Diagnosis of Internal Circuits for Quick Troubleshooting.
3. Hardware Configuration & Mechanical Parameters
3.1 Hardware Configuration
Indicator Lights: Power Status Indicator (Green, Steady On When Powered On Normally), Communication Status Indicator (Green, Blinking During Data Transmission), Fault Alarm Indicator (Red, Steady On When Fault Occurs);
Protective Functions: ESD Protection (±15kV Air, ±8kV Contact Per IEC 61000-4-2), Surge Protection (±2kV Per IEC 61000-4-5), Overheat Protection (Automatic Backlight Dimming at 60℃ to Avoid Component Burnout);
Core Components: Industrial-Grade LCD Panel, High-Reliability Touch Sensor, Anti-Vibration Component Mounting, Reinforced Circuit Board, Gold-Plated Connectors for Stable Connection.
3.2 Mechanical & Installation Parameters
Dimensions (W × H × D): 190mm × 140mm × 50mm (7.48 inches × 5.51 inches × 1.97 inches); Mounting Type: Panel Mount (Compatible with ABB Standard Control Cabinet Panels and Industrial Enclosures);
Weight: ≤ 600g (Net Weight); Housing Material: Flame-Retardant Plastic (UL94 V-0 Rating), Anti-Corrosion, Dust-Proof (IP65 Front Panel), Impact-Resistant;
Installation Hole Dimensions: 182mm × 132mm; Fixing Method: Locking Screws (Compliant with IEC 60947-5-1 Standards) for Stable Installation in Vibration Environments.
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
