1 PCS used Schneider Touch Screen HMIP63A10N508N3N00 #LYQ007
1 PCS used Schneider Touch Screen HMIP63A10N508N3N00 #LYQ007
1 PCS used Schneider Touch Screen HMIP63A10N508N3N00 #LYQ007

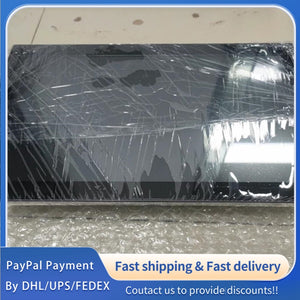

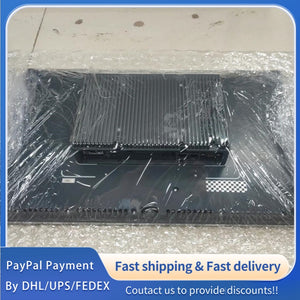

Part Number/Model: HMIP63A10N508N3N00; Product Name: Schneider HMIP63A10N508N3N00 Industrial Touch Screen HMI; Product Series: Schneider HMIP63 Series Compact Industrial Human-Machine Interface (HMI), engineered for seamless interaction, real-time data visualization, and precise equipment control in industrial automation ecosystems.
Brand: Schneider Electric (A global pioneer in energy management and automation solutions, celebrated for robust industrial-grade products, advanced control technology, and comprehensive compatibility. The HMIP63A10N508N3N00 combines high-performance display, responsive touch control, and multi-protocol communication, serving as a critical human-machine interaction hub for complex industrial control systems.)
Product Status: Industrial-Grade Original Equipment (Factory Calibrated, RoHS Compliant, Anti-Static Packaging, Shock-Proof Transit Case); Product Category: Capacitive Touch Screen HMI, designed for on-site operation, parameter configuration, real-time status monitoring, fault diagnosis, and data logging in automated production lines and process control systems.
Core Application: Ideal for a broad spectrum of industrial scenarios, including machinery manufacturing, packaging equipment, textile machinery, printing systems, petrochemical process control, power plant auxiliary equipment, and automotive assembly lines. Fully compatible with Schneider PLCs, inverters, servo drives, and third-party automation equipment (Mitsubishi, Siemens, Omron), widely adopted in electronics, energy, heavy industry, and smart factory projects.
Core Features: High-sensitivity capacitive touch screen supporting multi-touch operation; Crisp display with high brightness for visibility under strong ambient light; Built-in rich graphic libraries, animation functions, and custom widgets; Comprehensive communication protocol support for wide system integration; Industrial-grade electromagnetic interference (EMI) protection and rugged housing; Compact design for space-saving panel installation; Support for data logging, fault recording, and password-level access control; Compatibility with Schneider EcoStruxure automation platform.
2. Core Electrical Specifications (Ta = 25℃, Unless Otherwise Specified)
2.1 Power Supply Parameters
Input Voltage: DC 24V ±10% (Industrial Standard Power Supply, Compatible with 21.6V-26.4V DC); Input Current: 400mA (Rated), 800mA (Maximum Peak Current, During Startup);
Power Consumption: ≤9.6W (Rated Operating State, Backlight On, Full Load); ≤1.5W (Standby State, Backlight Off, Low Power Mode);
Reverse Polarity Protection: Yes (Built-in High-Current Diode Protection, No Damage When Power Polarity Accidentally Reversed); Overvoltage Protection: Triggers Cutoff When Input Voltage Exceeds 32V DC, Auto-Recovery After Voltage Returns to Normal Range; Undervoltage Protection: Activates Alarm When Input Voltage Drops Below 20V DC.
2.2 Display & Touch Parameters
Display Screen: 10.1-Inch Color LCD Screen; Resolution: 1920 × 1080 Pixels (Full HD); Display Color: 16.7 Million True Colors; Backlight: LED Backlight (Adjustable Brightness, 5 Levels, 200-500cd/m²);
Backlight Life: ≥50,000 Hours (Continuous Operation, 25℃ Ambient Temperature); Display Viewing Angle: Horizontal ±85°, Vertical ±80° (Wide Viewing Angle, No Color Distortion);
Touch Screen Type: Projected Capacitive Touch Screen; Touch Accuracy: ±2mm (Within Full Screen); Touch Life: ≥5,000,000 Presses (Single Point); Response Time: ≤10ms; Multi-Touch Support: 2-Point Touch (Pinch, Zoom, Swipe Gestures);
Touch Separation Value: ＜10mm (Effectively Distinguishes Adjacent Contacts); Scan Frequency: 120Hz (Ensures Smooth Touch Operation Without Lag).
2.3 Communication Parameters
Communication Interfaces: 1 x RS-232C (Full-Duplex, Optically Isolated), 1 x RS-485 (Half-Duplex, Optically Isolated), 1 x Ethernet Port (RJ45, 10/100Mbps), 1 x USB Type-A (Host Interface);
Supported Protocols: Modbus RTU, Modbus TCP/IP, Schneider PLC Special Protocol (M340, Premium, Micro800 Series), Third-Party PLC Protocols (Compatible with Mitsubishi FX/Q Series, Siemens S7-200/300/400 Series, Omron CP1H Series via Configuration);
Baud Rate (Serial Ports): 1200-115200 bps (Configurable); Parity Check: None / Odd / Even (Selectable); Data Bits: 7 / 8 Bits (Configurable); Stop Bits: 1 / 2 Bits (Configurable);
Communication Distance: Up to 15m (RS-232C), Up to 1200m (RS-485, Shielded Twisted Pair Cable), Up to 100m (Ethernet, Cat5e/Cat6 Cable); Isolation Voltage: 2500Vrms (Serial Communication Ports, 1 Minute Dielectric Test).
