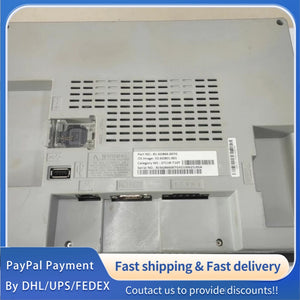

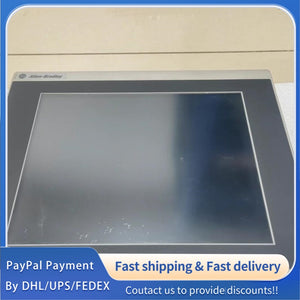

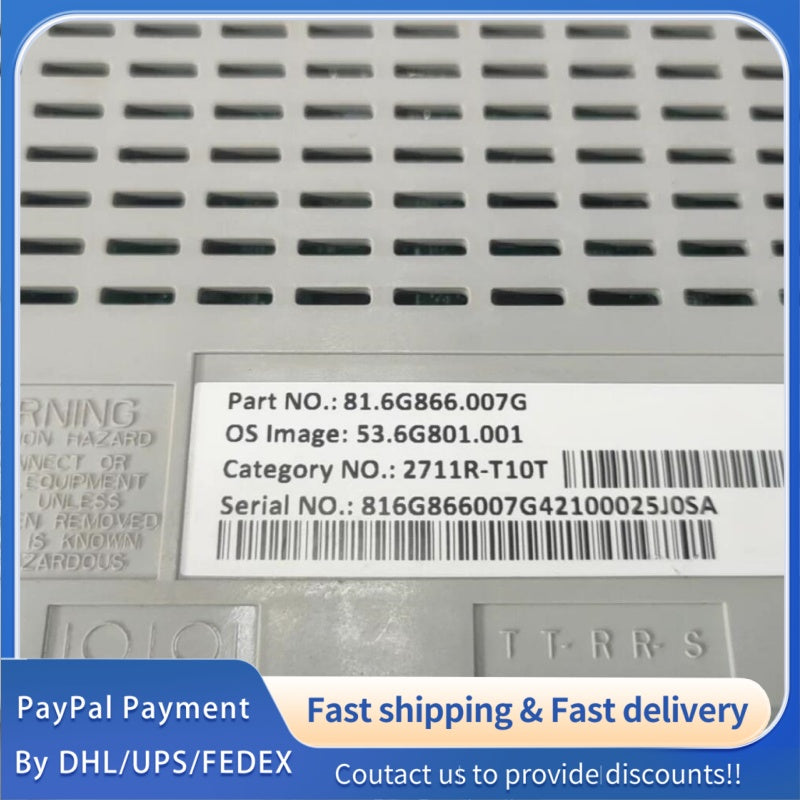

Part Number: 2711R-T10T; Model: 2711R-T10T; Product Name: Allen-Bradley PanelView Plus 7 Standard Touch Screen
Brand: Allen-Bradley (AB, a brand of Rockwell Automation, a global leader in industrial automation control systems and HMI solutions)
Product Status: Standard Industrial-Grade Product (In Stock); Product Category: 10-inch Color Touch Screen HMI, designed for industrial automation human-machine interaction scenarios
Core Application: Widely used in manufacturing workshops, production lines, process control systems, and industrial equipment operation interfaces, such as automotive manufacturing, food processing, packaging machinery, and energy management systems. Enables operators to monitor equipment status, adjust parameters, and execute control commands intuitively.
Core Features: 10-inch high-brightness color TFT LCD display; Resistive touch screen with high durability; Rich communication interfaces for seamless integration with AB PLCs; Built-in industrial-grade processor for stable operation; Support for multiple programming languages and graphic formats; Compact panel-mount design; Excellent anti-interference performance for harsh industrial environments.
2. Core Performance Specifications (Ta = 25℃, Unless Otherwise Specified)
2.1 Display & Touch Performance Parameters
Display Type: 10-inch Color TFT LCD; Resolution: 1024 × 600 Pixels (WXGA); Aspect Ratio: 16:9; Brightness: 300 cd/㎡ (adjustable);
Contrast Ratio: 1000:1; Viewing Angle: Horizontal ±160°, Vertical ±140° (full view); Backlight Type: LED; Backlight Life: ≥ 50,000 Hours (typical);
Touch Screen Type: 4-Wire Resistive Touch; Touch Accuracy: ±2 Pixels; Touch Response Time: ≤15ms; Surface Hardness: 4H (scratch-resistant);
Display Colors: 16.7 Million True Colors; Operating Frequency: 60Hz (stable display without flicker).
2.2 Communication & I/O Parameters
Communication Interfaces: 1 × Ethernet Port (10/100 Mbps, RJ45), 1 × RS-232 Serial Port, 1 × RS-485 Serial Port;
Supported Protocols: Ethernet/IP, Modbus RTU, DF1, Allen-Bradley Remote I/O (compatible with AB PLCs such as Micro800, CompactLogix, ControlLogix);
Data Transfer Rate: Ethernet: 10/100 Mbps (auto-negotiation); Serial Ports: RS-232 up to 115200 bps, RS-485 up to 115200 bps (configurable);
Expansion Interface: USB 2.0 Port × 2 (for data transfer, configuration, and peripheral connection); Optional Wireless Module Support (Wi-Fi/Bluetooth via expansion slot).
